GAPS - User Guide
2.2.3.3 Optional GAPS GPS Cable
The 15 m GPS cable links the GPS antenna to the Y cable.

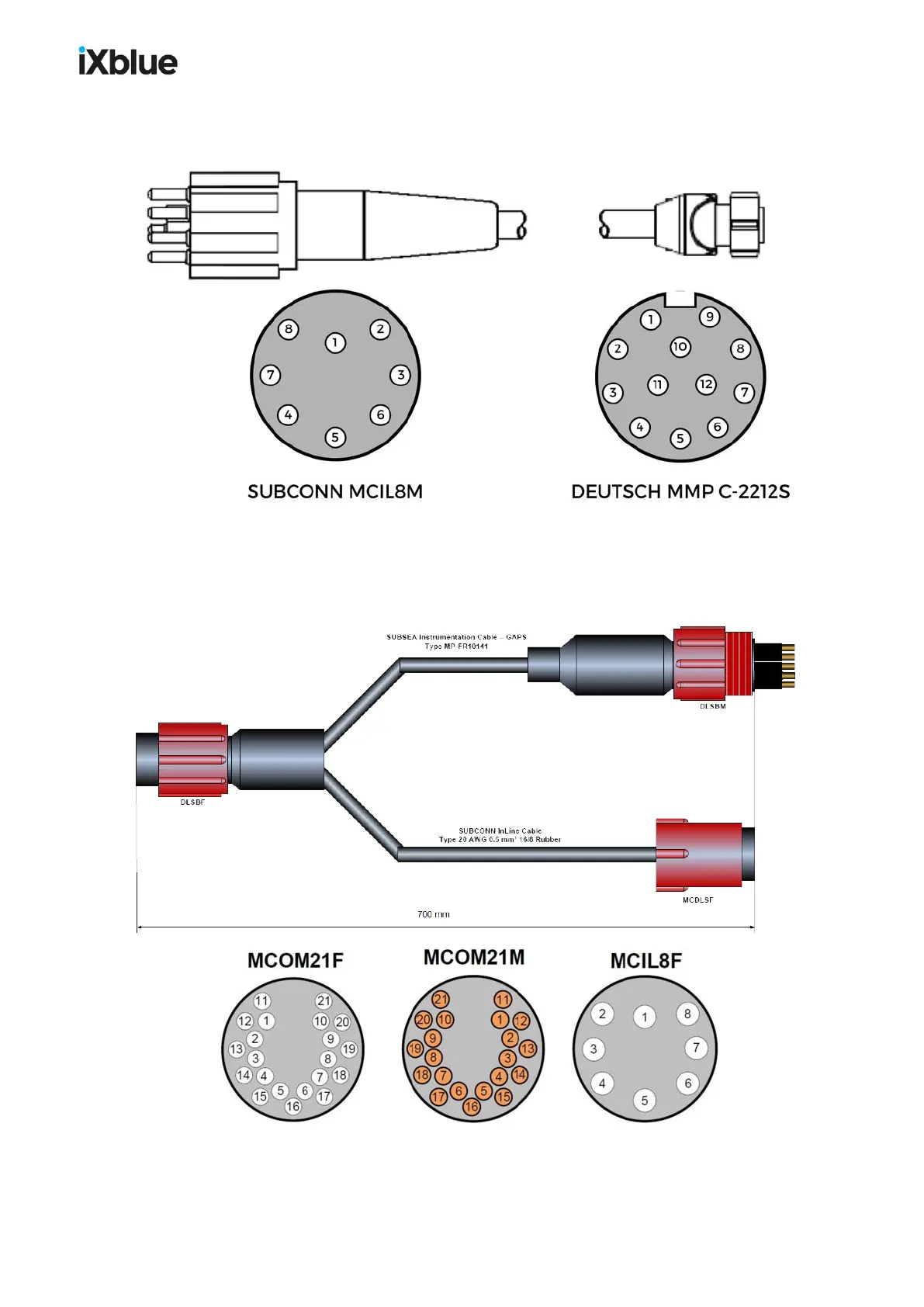

Figure 14 - GPS Cable connectors
2.2.3.4 Optional GAPSY Cable
The 1 m long Y cable (MP-FR10141 rev C) is used to connect the GPS unit and the BOX to the
GAPS. The cable can be immersed for long period in 500 m water depth.
Figure 15 - Y Cable connectors
30 MU-GAPS-AN-005-H - November 2019
