3.4 Installing the GPS Antenna
Two configurations are possible. See 1.2.1. You can use your own GPS or use the GPS
provided by iXblue. The integrated DGPS antenna has to be fixed in clear view from the sky.

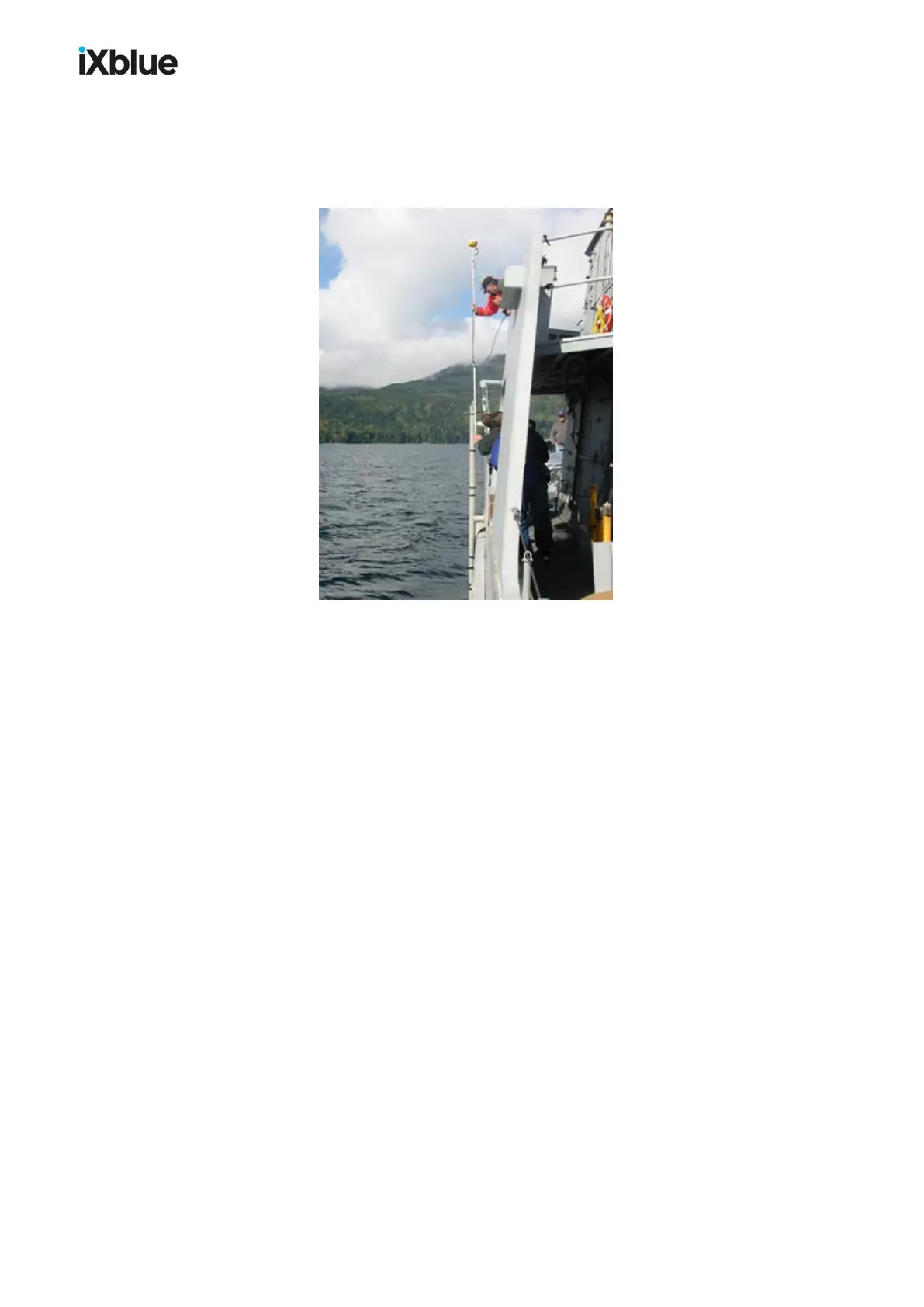

Figure 24 - DGPS antenna installation
3.4.1 INSTALLING AN EXTERNAL GPS
Connection
In this case, you must not use the Y-cable to be plugged to the GAPS. Plug your GPS directly
on the BOX via the GPS DB9 connector or on Ethernet.
Quality
The GAPS takes into account the quality of the positioning of an external GPS up to mode 4.
The mode 5 is taken by GAPS as a mode 4.
