3.4.2 INSTALLING THE OPTIONAL IXBLUE DGPS
The DGPS DB9 connector of the BOX is not used in this case. Plug the 15 m GPS cable on
the Y-cable and then plug the DGPS to the 15 m cable.

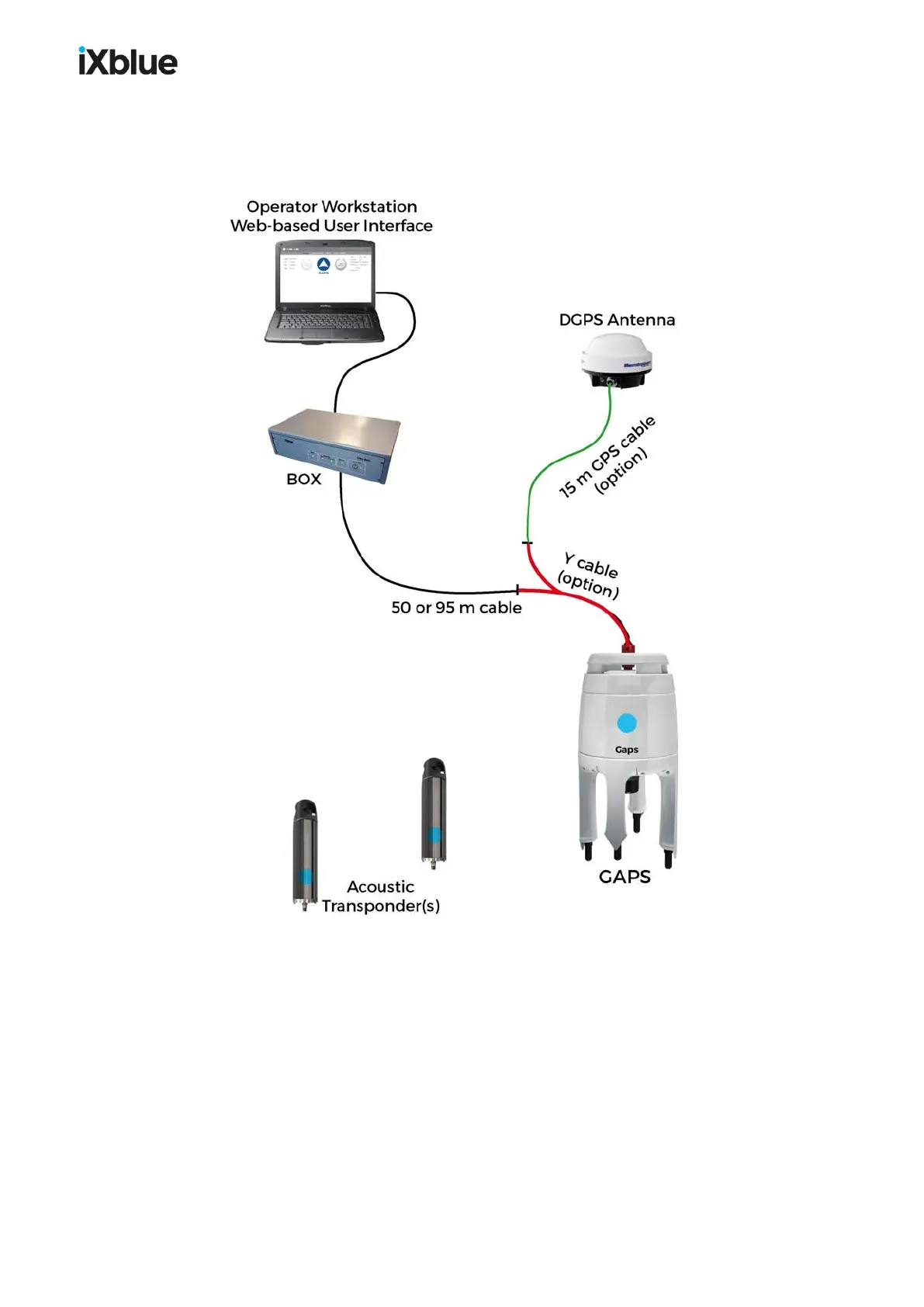

Figure 25 - Architecture of GAPS system with the use of the optional iXblue GPS
