GAPS - User Guide

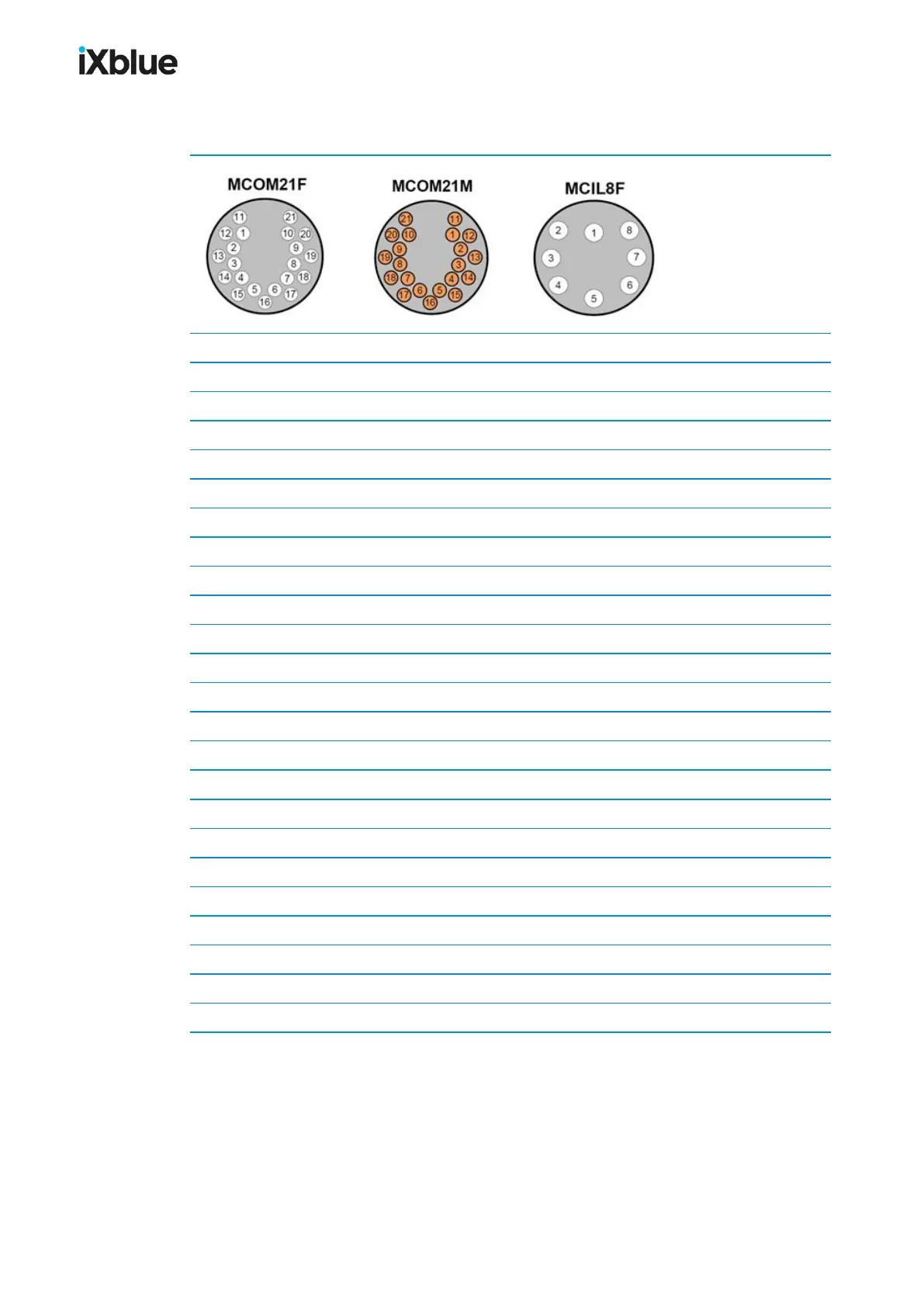

Table 3 - Wiring of the Y cable connectors
1 1 Ethernet Rx-
2 2 Ethernet Tx-
3 3 Not Connected
4 7 GNDSignal
5 7 GNDSignal
6 6 Sync IN 1-
7 7 Sync OUT1-
8 8 Sync OUT2-
9 9 Not Connected
10 Shield
11 11 Ethernet Rx+
12 12 Ethernet Tx+
13 13 Not Connected
14 4 TxA GPS - RS232
15 8 Sync PPS+
16 16 Sync IN+
17 17 Sync OUT 1+
18 18 Sync OUT 2+
19 19 Not Connected
20 20 2 Power Supply -
21 21 1 Power Supply +
3 RxA - GPS RS232
5 RxB - GPS RS232
6 TxB - GPS RS232
MU-GAPS-AN-005-H - November 2019 31
