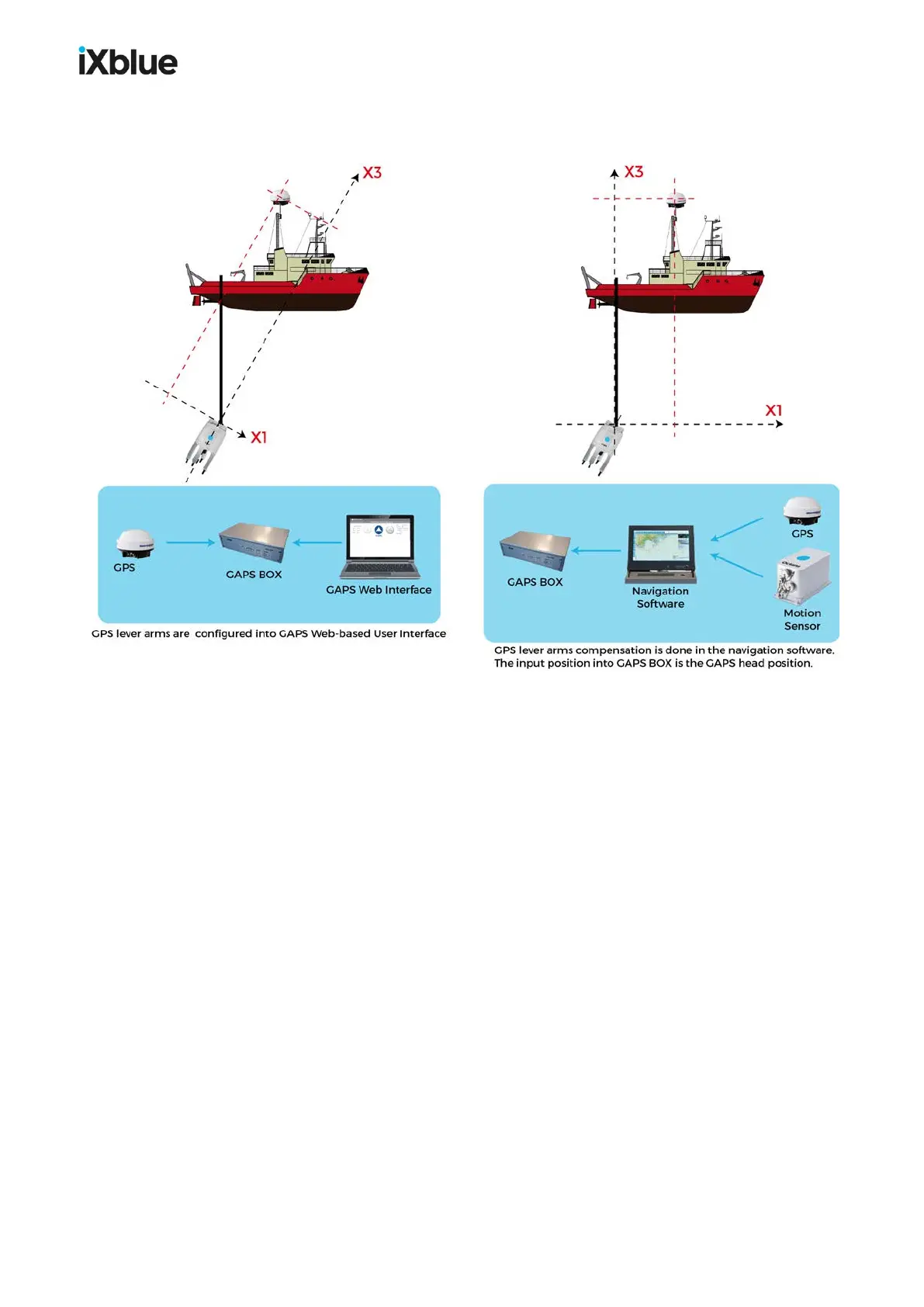

You may enter the lever arms in the GAPS Web-based User Interface or in the third party

navigation software. The drawing below describes the two options.

66 MU-GAPS-AN-005-H - November 2019
