488 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
RF Area (Option 503, 507, 513, 526)
5. Refer to Figure 15-17. Disconnect the two wire harness connectors W30
from the switches (1).

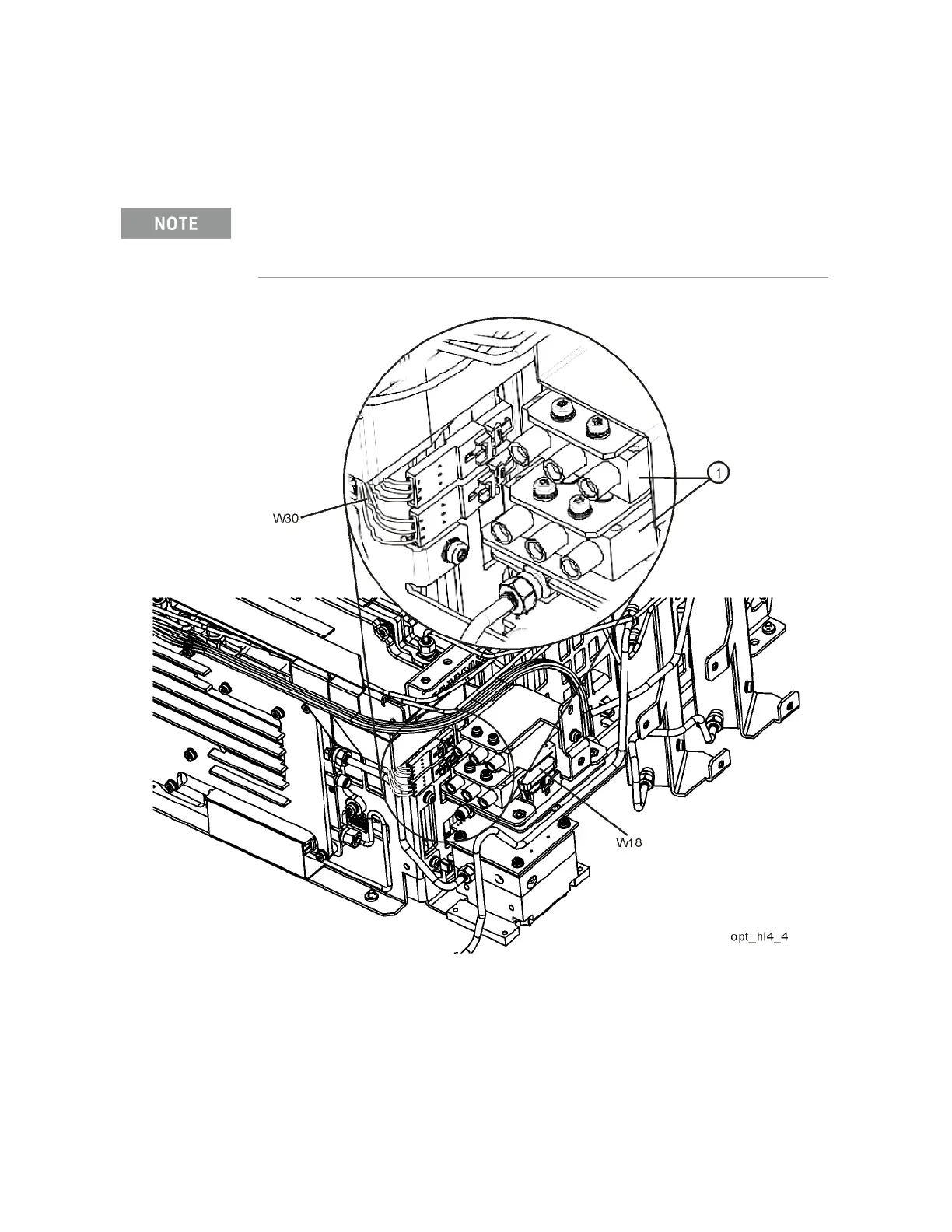

Figure 15-17 Wire Harness Disconnect
Even though the wire colors on W30 harness are different, it does not matter which one plugs
into which switch.
