492 Keysight N9010A E
XA Service Guide
Assembly Replacement Procedur
es
RF Ar
ea (Option 503, 507, 513, 526)
10.
Refer to
Figur
e 15-22
. To separate the low ban
d switch fr
om the bracke
t,
use the T-10 driver to r
emove the four scr
ews
(3)
.

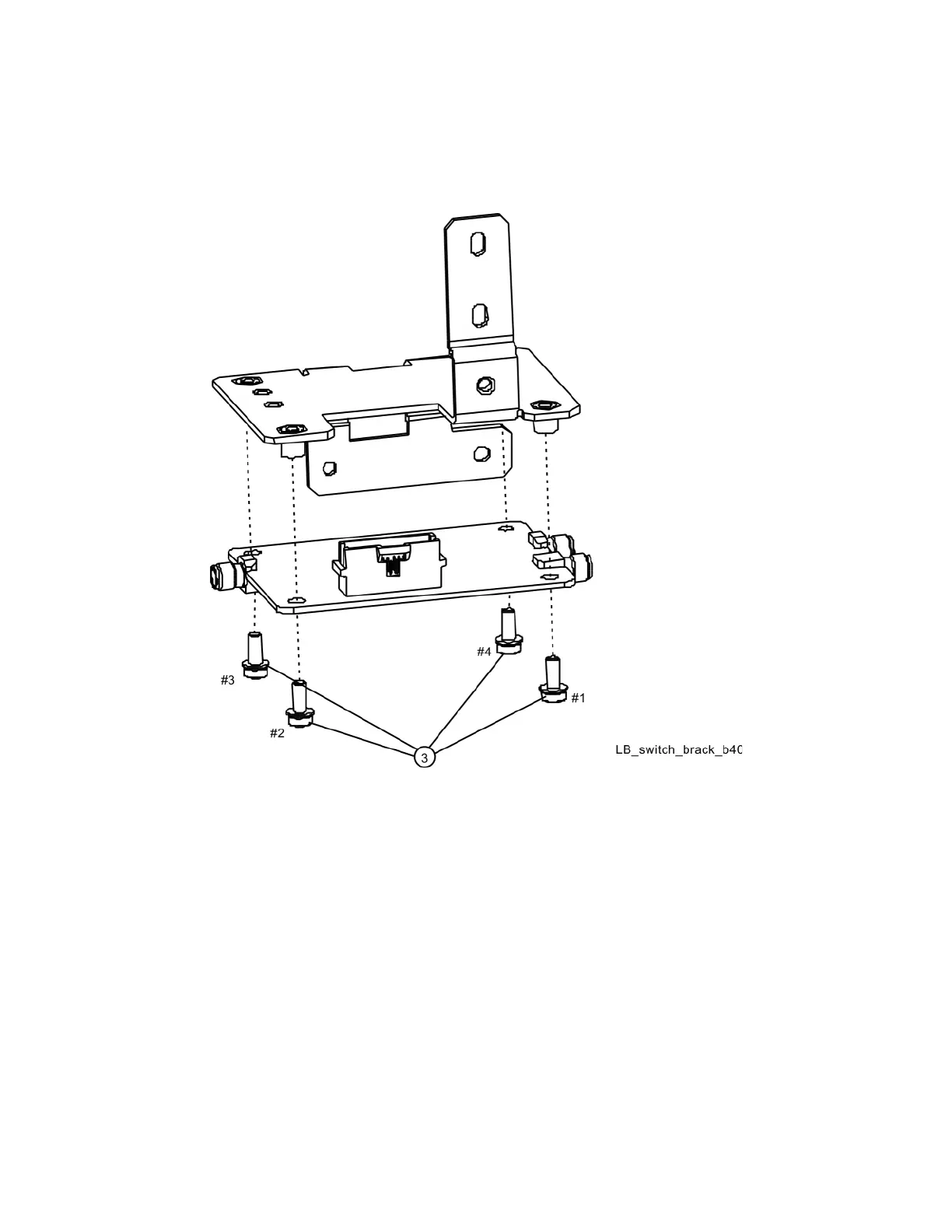

Figure 15-22
Low Band Switch
and Bracket Separation
