Effect
151
2. Routing
You can use up to two channels (MFX1 and 2) for the Master
Effects in any mode other than in Sampling mode. (You can-
not use the Master Effects in Sampling mode.) If you are not
using any Insert Effects in any mode, the Master Effects send
levels are determined by the “Send1 (MFX1)” and “Send2
(MFX2)” parameters specified independently for the oscilla-
tors (Program), timbres (Combination), tracks (Sequencer
and Song Play), and audio inputs (Global). For example, you
can apply substantial reverberation to a piano sound
assigned to the timbre and tracks, a small amount of rever-
beration to the strings sound, and no reverberation to the
bass sound. If you are using the Insert Effects, set the
“Send1” and “Send2” parameters for the post-IFX signals.
2–1. Program mode

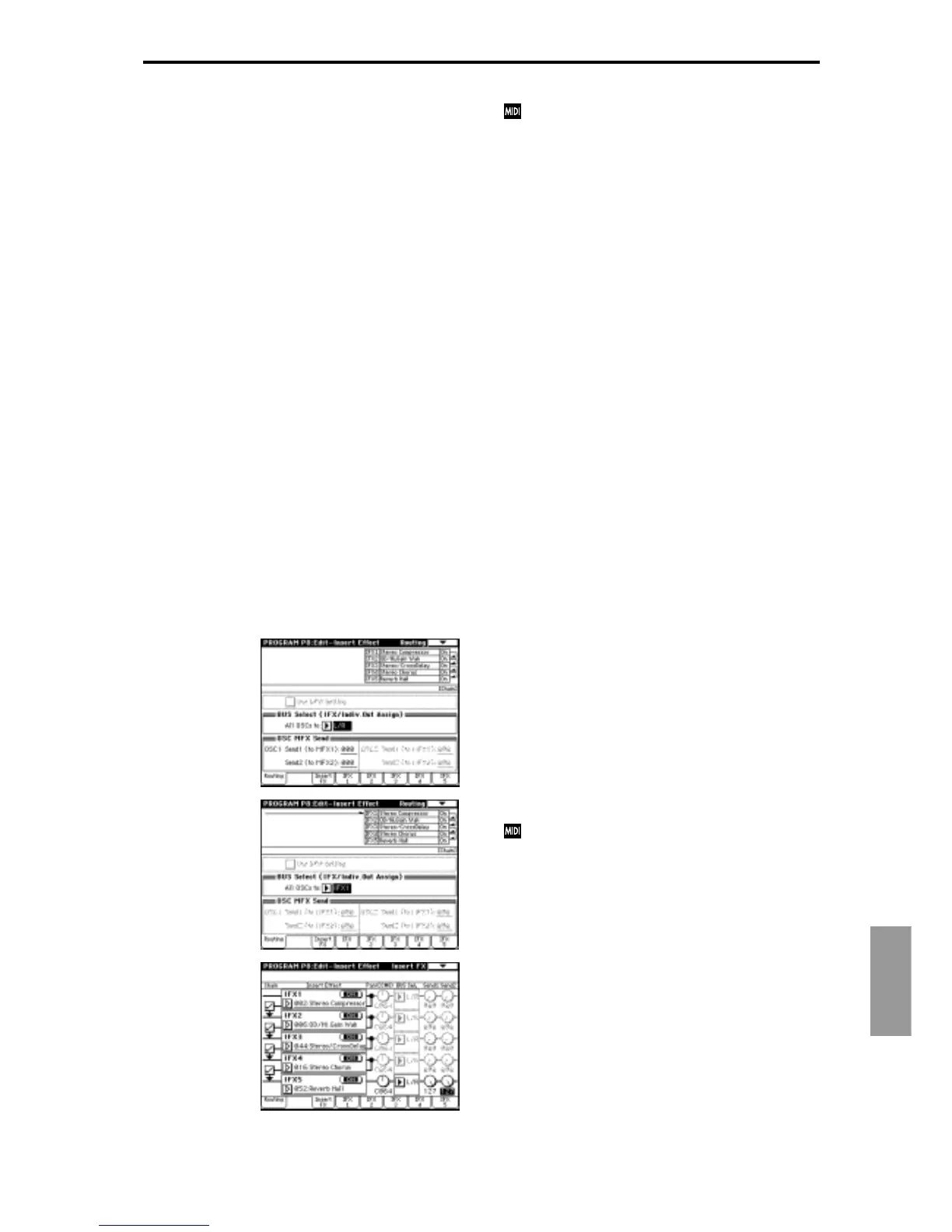

Use the “Send1 (to MFX1)” and “Send2 (to MFX2)” parame-
ters of the P8: “Routing” tab, or the “Send1” and “Send2”
parameters of the P8: “Insert FX” tab for the post-IFX1–5 sig-
nals, to set the Master Effect send level.
If you have set “BUS Select” to L/R or Off, “Send1 (MFX1)”
and “Send2 (MFX2)” of the “Routing” tab are effective.
These parameters can be set for oscillators 1 and 2 individu-
ally.
If you have set “BUS Select” to IFX1–5, “Send1” and
“Send2” of the “Insert FX” tab for the post-IFX1–5 signals
are effective. If you are using the Insert Effects in chain
(series), the “Send1” and “Send2” parameters for the post-
IFX (last IFX) are effective.
If you have set “BUS Select” to 1, 2, 3, 4, 1/2, or 3/4, the oscil-
lator signals are output directly to OUTPUT (Individual
Out) 1, 2, 3, or 4 (
☞“Individual Output”). In this case the
Send 1 and Send 2 settings are ignored, and the Master
Effects will not be applied.
Send1 responds to MIDI Control Change CC#93 and
Send2 responds to MIDI Control Change CC#91 on
MIDI Global channel “MIDI Channel” (Global P1: 1–
1a). At this time, the actual send level uses the value of
the Send 1 and 2 settings for Oscillators 1 and 2, multi-
plied by the Send 1 and 2 values received via MIDI.
If you have selected “Drums” for “Oscillator Mode” (Pro-
gram P1: 1–1a) of a Program, the “USE DKit Setting” box
(Program P8: 8–1b) becomes available.
If you check this box, Send1 and Send2 levels for each key
of the selected DrumKit become effective. If “BUS Select”
(Global P5: 5–2b) is set to L/R or Off for a drum instrument
key, “Send1 (to MFX1)” and “Send2(toMFX2)” (Global P5:
5–2b) become effective. If “BUS Select” is set to IFX1–5,
“Send1” and “Send2” (Program P8: 8–2a) become effective.
If you remove the check, “Send1 (MFX1)” and “Send2
(MFX2)” (Program P8: 8–1d) of the P8: “Routing” tab or
“Send1” and “Send2” (Program P8: 8–2a) of the P8: “Insert
FX” tab for the post-IFX1–5 signals become effective.
2–2. Combination, Sequencer, and Song Play
modes
Use “Send1 (MFX1)” and “Send2 (MFX2)” (P8: “Routing”
tab) for timbres (Combination) and tracks (Sequencer, Song
Play) to set the Send1 and 2 levels for each timbre and track.
As with Program mode, if “BUS Select” is set to L/R or Off,
“Send1 (MFX1)” and Send2 (MFX2)” become effective. At
this time, the actual levels use these Send1 and 2 level val-
ues, multiplied by the send level values of oscillators 1 and 2
(“Oscillator Mode” is set to “Double”) of the Program P8:
“Routing” tab.
– Send level –
For example, if a Program’s “OSC1 Send1” is set to 127,
“Send2” set to 064, “OSC2 Send1” set to 064, “Send2” set to
127, a Combination’s “Send1” set to 064, and “Send2” set to
127, the actual send levels of the combination are calculated
as follows:
OSC1 Send1=127 (100%)*064(50%)=064(50%)
OSC1 Send2=064 (50%)*127(100%)=064(50%)
OSC2 Send1=064 (50%)*064(50%)=032(25%)
OSC2 Send2=127 (100%)*127(100%)=127(100%)
If IFX1–5 is selected for “BUS Select”, use the “Send1” and
“Send2” parameters for the post-IFX signals.
If 1, 2, 3, 4, 1/2, or 3/4 is selected instead, these Send1 and 2
settings are ignored and the Master Effect is not applied.
Send1 responds to MIDI Control Change CC#93, and
Send2 responds to MIDI Control Change CC#91. If
“Send1 (MFX1)” and Send2 (MFX2)” for each timbre/
track are effective, the parameter will be controlled on
the MIDI channels set for the corresponding timbres
and tracks. If the “Send1” and “Send2” parameters for
the post-IFX1–5 signals are effective, they can be con-
trolled on the MIDI channels assigned to IFX1–5.
The following examples are in Combination mode. In the
upper figure, “BUS Select” is set so that Timbre 1 is routed to
IFX1, Timbre 2 to IFX2, Timbre 3 to IFX3, Timbre 4 to IFX4,
Timbres 5 and 6 to IFX5, and Timbres 7 and 8 to L/R. In this
case, use “Send1” and “Send2” for the post-IFX1(001: St.
Amp Simulation) signal to set the send level of the Timbre 1
routed to the Master Effect. (In this example they are set to
032 and 127.) In the same way, use “Send1” and “Send2” for
the post-IFX2, 3, and 4 signals to set the send levels of Tim-
bres 2, 3, and 4, and use the “Send1” and “Send2” parame-
ters for the post-IFX5 signal to set the send levels of Timbres
5 and 6. For Timbres 7 and 8, the settings of “Send1 (MFX1)”
