NET Series
Software Operation
LEIGHTRONIX, INC. Firmware Ver. 1.00.42/Software Ver. 1.0.2.6 Page 107
2010-07-09
e. Set preroll, if desired.
f. Select “Record” in “Command” field.
3. If necessary, create a new switch under the “Switch” tab for the feed source.
4. Drag feed source switch icon onto playlist. In the “Event Properties” window that
appears, perform the following steps:
a. In the “Output” field, select the NET-164 or NET-EC’s switcher output
connected to your recording device.
b. Select day/date of event.
c. Select time of event.
d. Set length of event.
DUBBING WITHOUT A SWITCH
Refer to Illustration 72, Example of Typical Setup for Dubbing without Switch,
throughout the following steps. While Illustration 72 shows a MINI-T-NET system, the
setup is similar for the NET-164 and NET-EC.

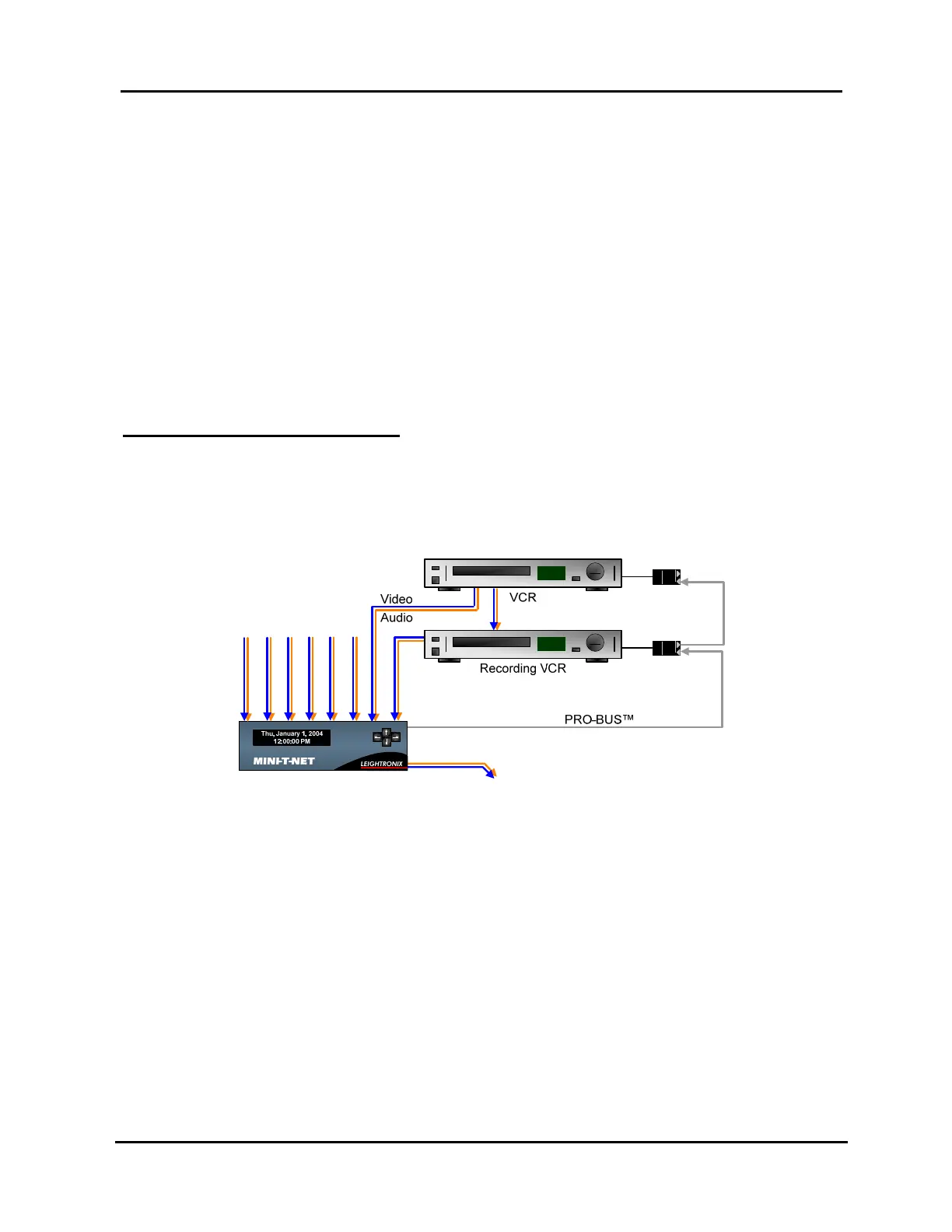

Illustration 72, Example of Typical Setup for Dubbing without Switch
PRO-
BUS
PRO-
BUS
1. Select the WinNET-LT tab.
2. Schedule a recording device action by dragging desired recording device icon onto
playlist. In the “Event Properties” window that appears, perform the following:
a. Change “Output” field to one of the following options:
 If you only wish to record, select “<None>.”
 If you wish to record while a signal is transmitting on-air, select the on-air
output on the MINI-T-NET/NET-164 or the NET-EC’s switcher.
 NET-164 and NET-EC only—if you wish to record and display video on a
monitor, select the monitor output on the NET-164 or the NET-EC’s
switcher.
b. Select day/date of event.
