Leightronix MINI-T-NET - Net-Ec Rear Panel; Illustration 6, Net-Ec Rear Panel

NET Series
Introduction
Page 16 Firmware Ver. 1.00.42/Software Ver. 1.0.2.6 LEIGHTRONIX, INC.
2010-07-09
 A: 16 BNC video input connectors
 B: 4 BNC video output connectors
 C: 2 DVply connectors, 9-pin male, for TASCAM DV-D6500 DVD players
 D: 32 RCA audio input connectors (16 stereo inputs)
 E: 8 RCA audio output connectors (4 stereo outputs)
 F: “COM 1”: 9-pin male RS-232 connector reserved for use with any product
that has its own software for controlling the NET-164
 G: RJ-11 PRO-BUS jack
 H: 10/100 Mb/s RJ-45 Ethernet jack
 I: 12VDC threaded power connector
NET-EC REAR PANEL

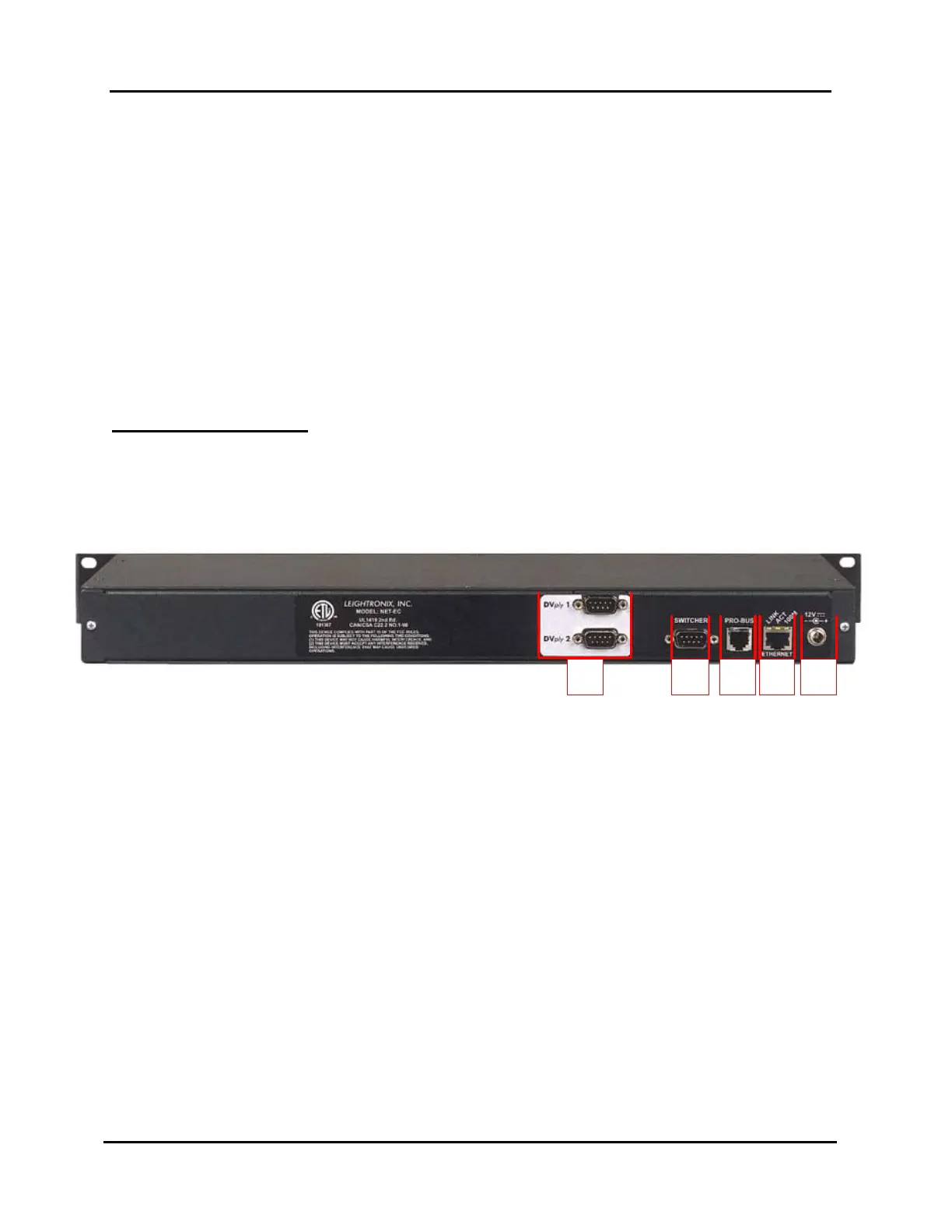

The NET-EC rear panel includes, from left to right (see Illustration 6, NET-EC Rear
Panel):
Illustration 6, NET-EC Rear Panel
 A: 2 DVply connectors, 9-pin male, for TASCAM DV-D6500 DVD players
 B: “SWITCHER”: 9-pin male RS-232 connector for External Router Control
 C: RJ-11 PRO-BUS jack
 D: 10/100 Mb/s RJ-45 Ethernet jack
 E: 12VDC threaded power connector
A B C ED
