APPENDIX B: PRO-BUS INTERFACE CONNECTIONS
Each NET Series Controller comes equipped with a LEIGHTRONIX PRO-BUS control
output. By connecting addressable PRO-BUS interfaces to your NET Series
Controller, you can use pre-programming or immediate remote control to operate one
or all of your devices (play, rewind, record, and stop). Control up to 8 devices with the
MINI-T-NET and up to 16 devices with the NET-164 and the NET-EC.
PRO-BUS interfaces use standard phone cables with RJ-11 connectors that loop
between each interface. The NET Series Controllers provide both control signals and
power to your devices through PRO-BUS interfaces. Connect your PRO-BUS
interfaces as follows (refer to Illustration 108, Example of PRO-BUS Interfaces
Connected to a NET-164 and Devices and Illustration 109, PRO-BUS Interface):

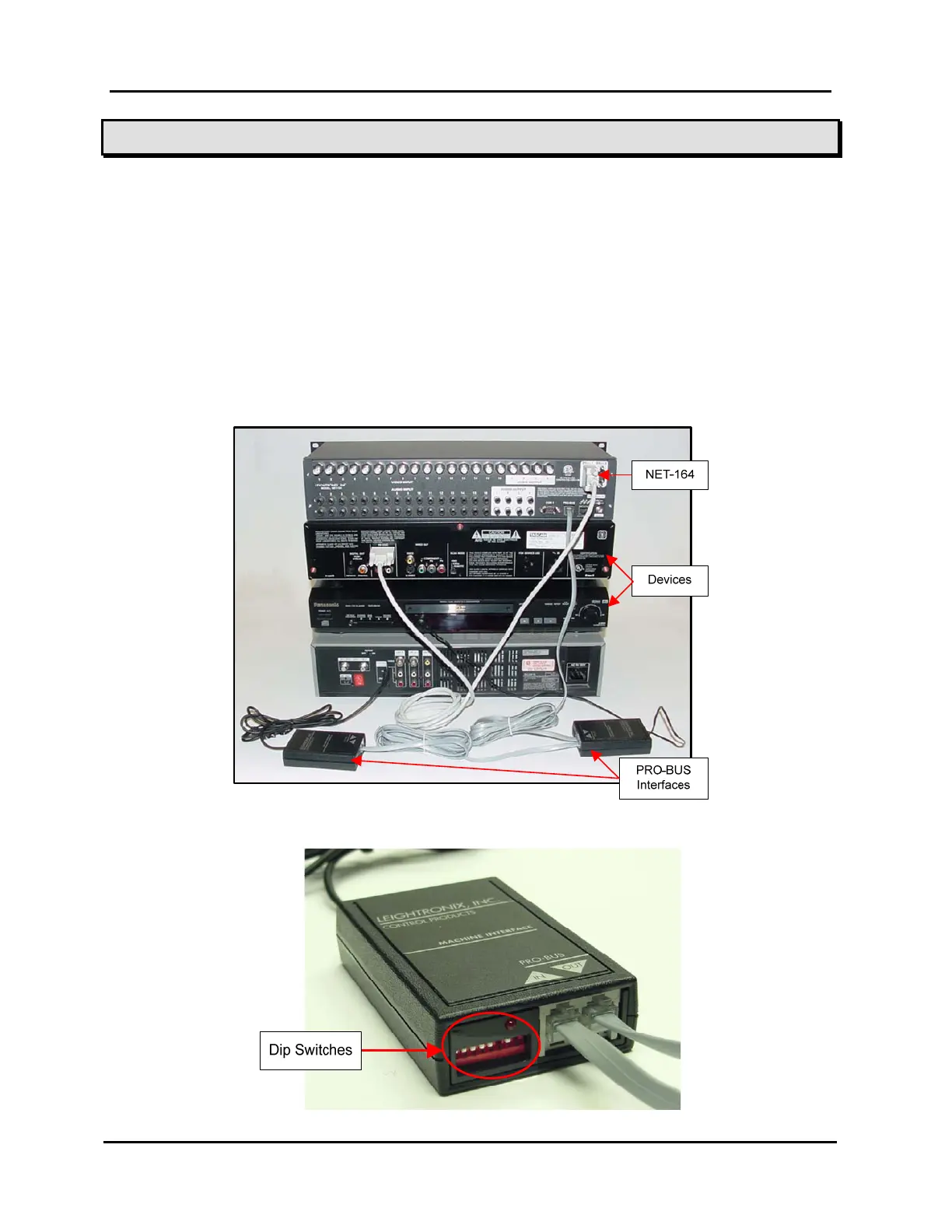

Illustration 108, Example of PRO-BUS Interfaces Connected to a NET-164 and Devices
Illustration 109, PRO-BUS Interface
