NET-164 INSTALLATION OVERVIEW
Illustration 8 shows a sample connection scenario for the NET-164 similar to the setup
shown in Illustration 7, MINI-T-NET Typical Playback System Diagram. The NET-164
has 16 video and audio input sources to connect your video equipment (VCRs, DVD
players, satellite or studio feeds, character generator, etc.) and four outputs that are
connected to the desired destination, such as modulators. VCRs and DVD players are
controlled through the use of LEIGHTRONIX PRO-BUS interfaces, sold separately for
many brands and models of professional video equipment. The PRO-BUS interfaces
loop together for easy setup and are available with infrared, mini-jack, and multi-pin
connectors. The NET-164 has two DVply connectors to control TASCAMĀ® DV-D6500
DVD players, which allows cueing of DVDs by Title:Chapter. PC configuration and
control is done over a 10/100 Base-T Ethernet connection.

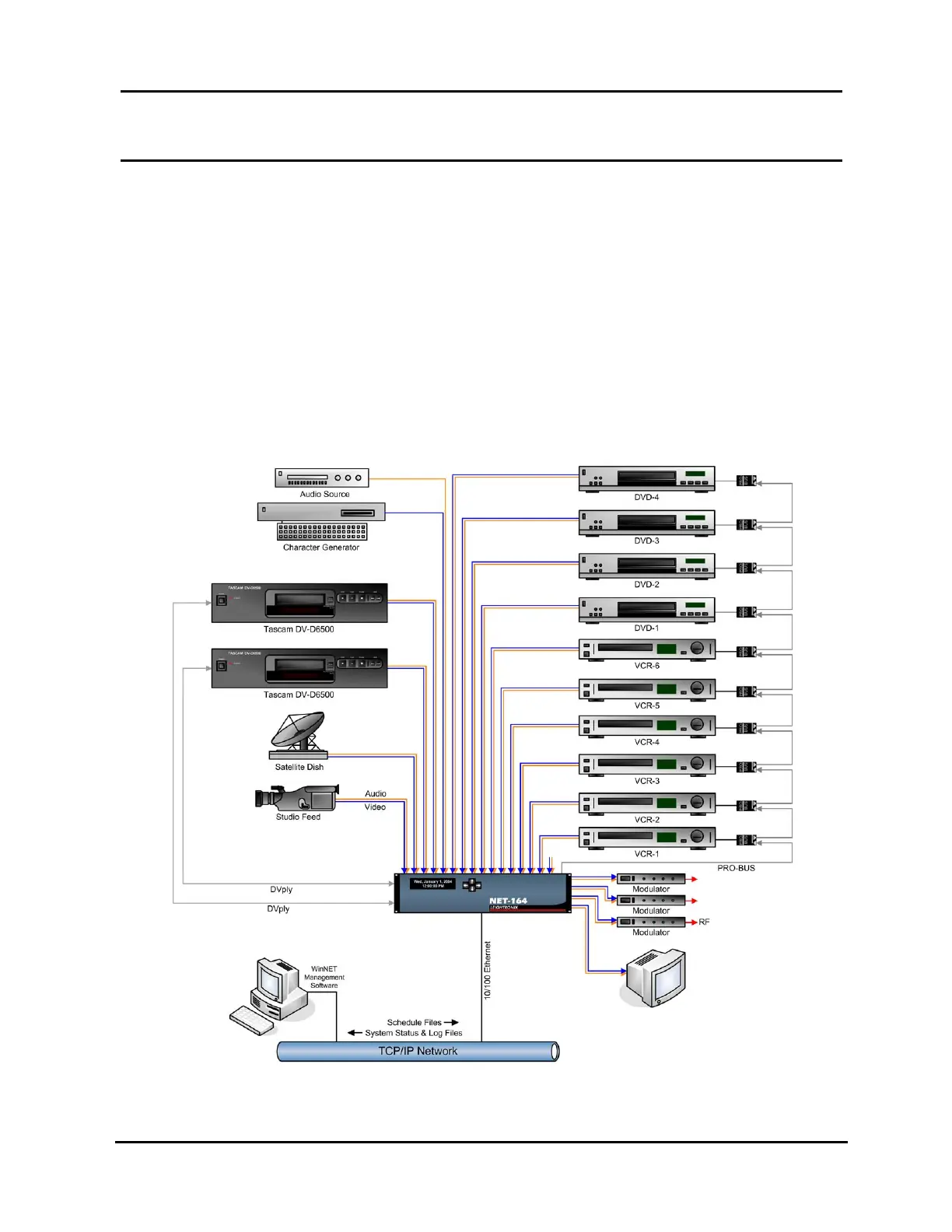

Illustration 8, NET-164 Typical Playback System Diagram
