NET Series
Introduction
LEIGHTRONIX, INC. Firmware Ver. 1.00.42/Software Ver. 1.0.2.6 Page 15
2010-07-09

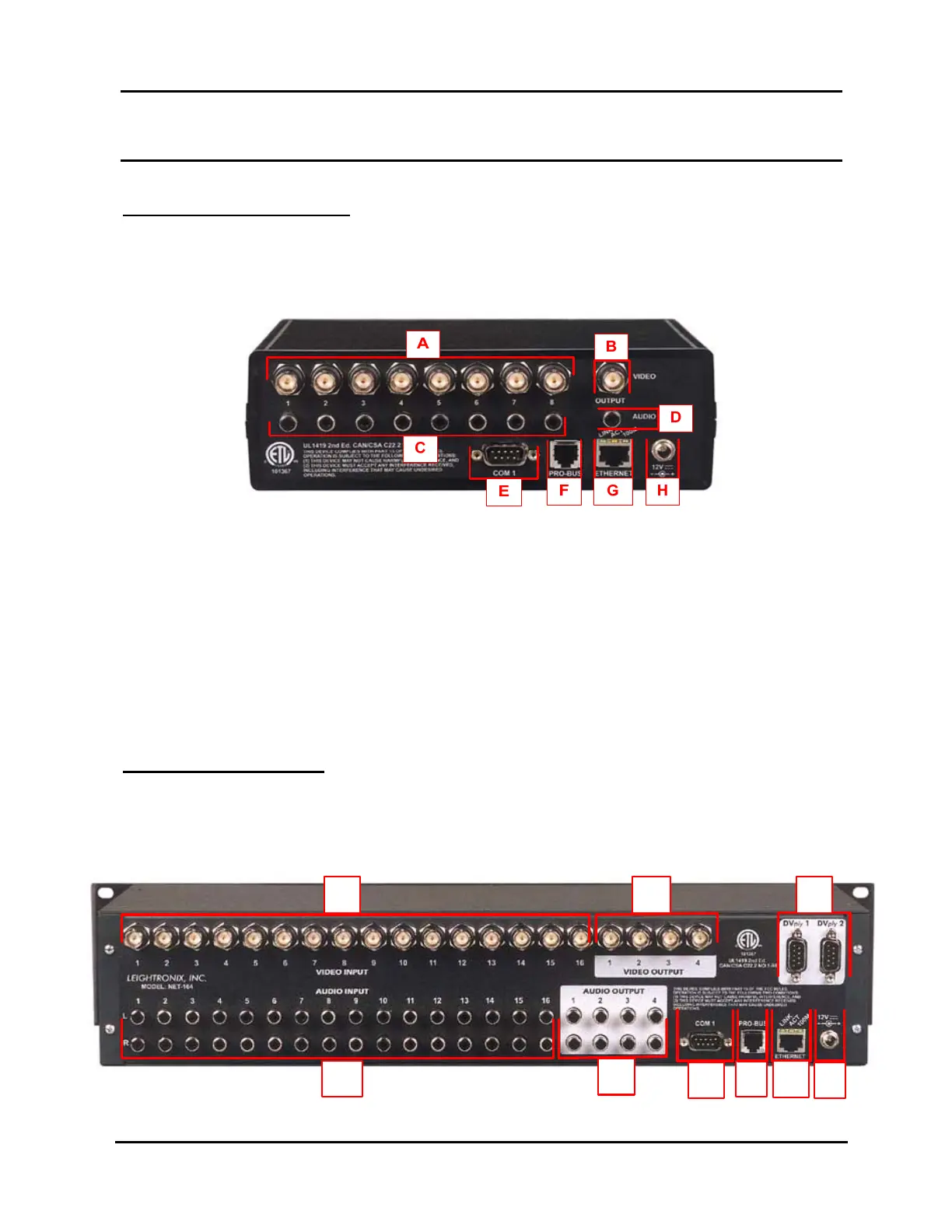

NET SERIES CONTROLLER REAR PANEL
MINI-T-NET REAR PANEL
The MINI-T-NET rear panel includes, from left to right, top to bottom (see Illustration 4,
MINI-T-NET Rear Panel):
Illustration 4, MINI-T-NET Rear Panel
 A: 8 BNC video input connectors
 B: 1 BNC video output connector
 C: 8 RCA audio input connectors
 D: 1 RCA audio output connector
 E: “COM 1”: 9-pin male RS-232 connector reserved for use with any product
that has its own software for controlling the MINI-T-NET
 F: RJ-11 PRO-BUS jack
 G: 10/100 megabytes per second (Mb/s) RJ-45 Ethernet jack
 H: 12VDC threaded power connector
NET-164 REAR PANEL
The NET-164 rear panel includes, from left to right, top to bottom (see Illustration 5,
NET-164 Rear Panel):
Illustration 5, NET-164 Rear Panel
CA
D
B
E
G
F I
H
