SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-102
Published 08-12-19, Control # 224-13_v2
Item Description
1 Counterweight Tray Installed or Removed
2 Mast-Assist Arms
3 Mast in Operating Range
4 Self-Erect Cylinder
5Live Mast Straps
6Rod End
72-SH 1 Shackles - 55 t (60.60 USt)
84-SL 4 Slings - 3,80 m (12.50 ft) -
11 340 kg (25,000 lb)
9Lifting Lug
10 Boom Top
11 See Liftcrane Mast Handling Chart
12 Trailer
13 Fixed Horizontal Pin
14 Hooked Connector
15 Pin
16 Safety Pin

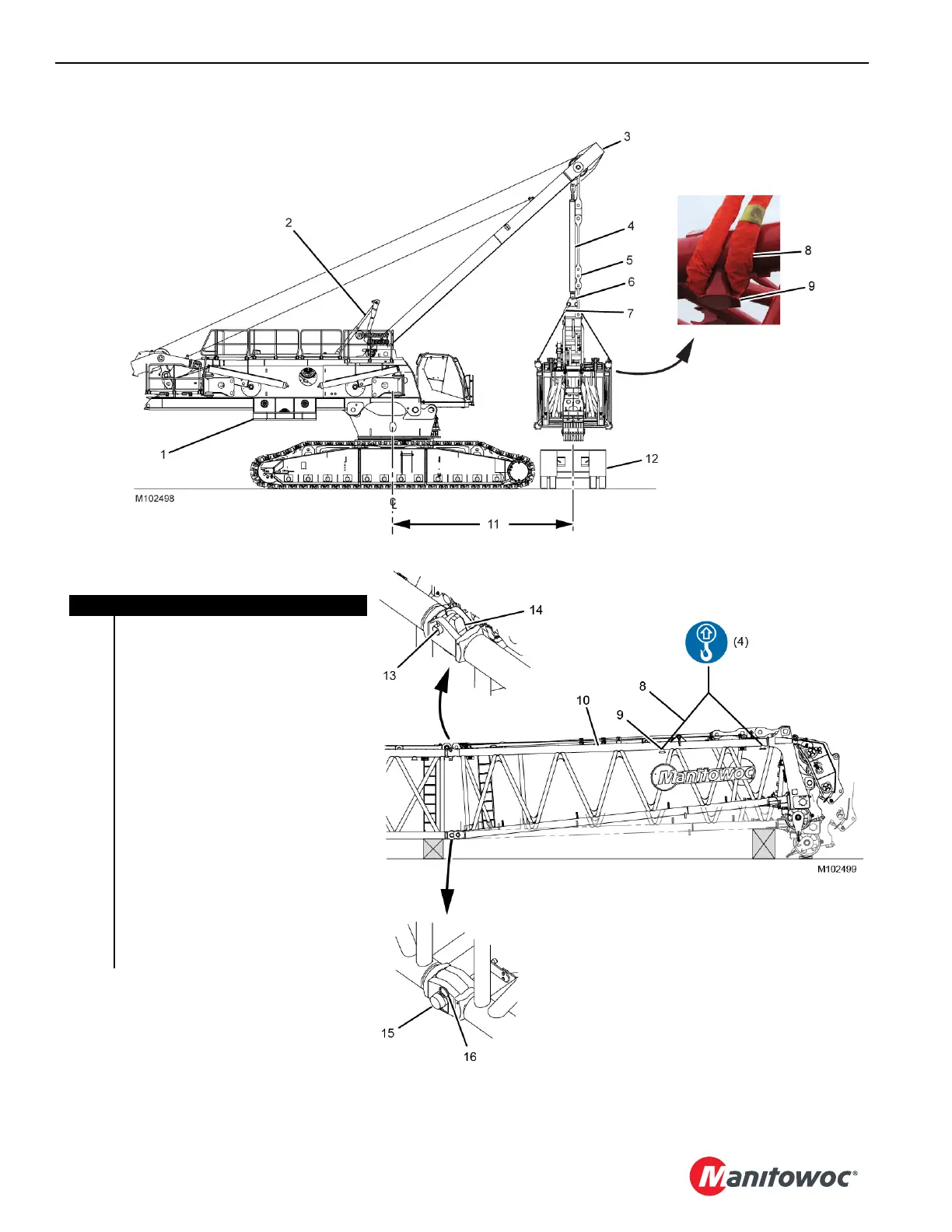

FIGURE 4-79
