3A-14 90-13645--2 495FUEL SYSTEM AND CARBURETION

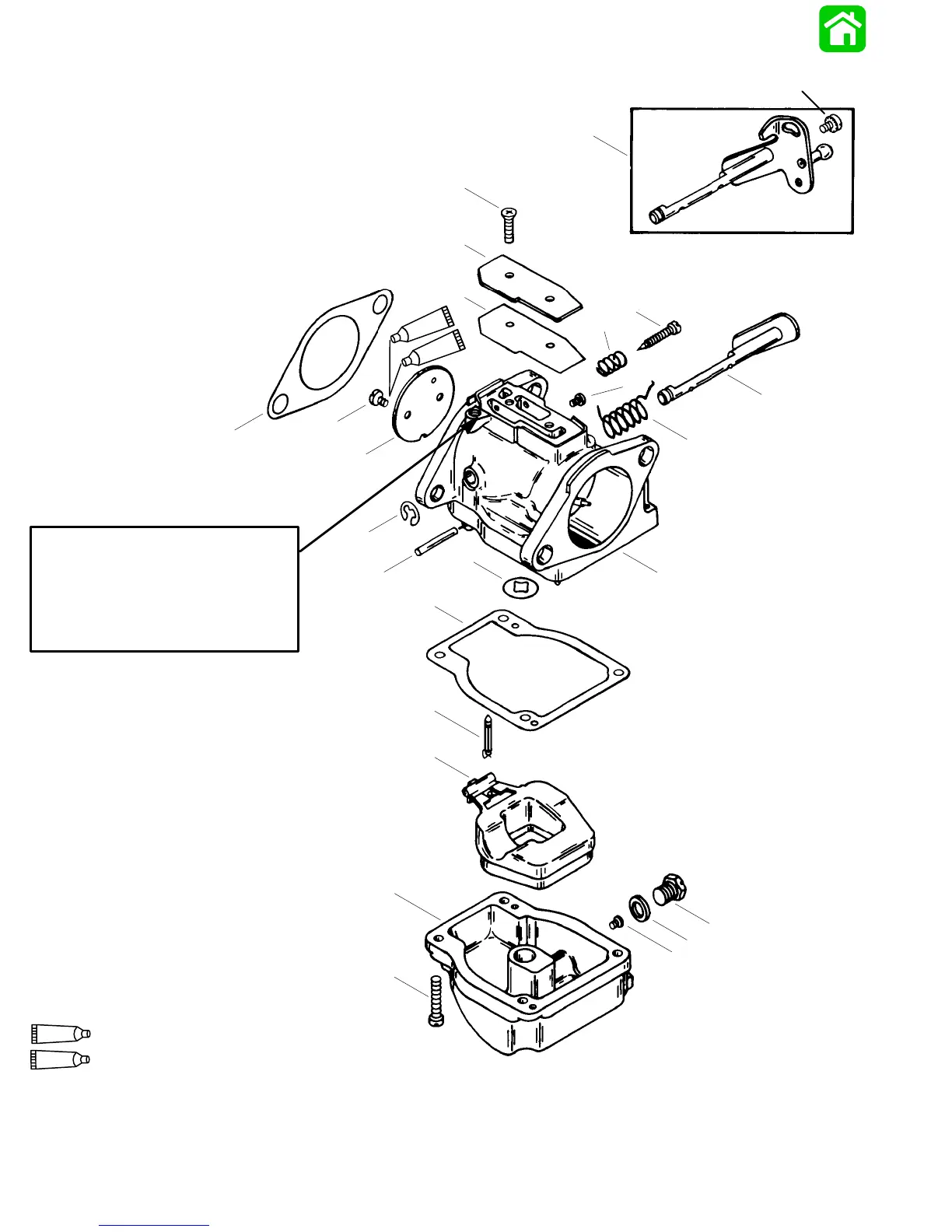

Fuel System (Carburetor)
IMPORTANT: DO NOT touch this
adjustment. This is preset by the
manufacturer, and is NOT for
field service. Conventional carb.
cleaners will not affect the sea-
lant securing this adjustment.
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
3
Specifications
Float Setting – 7/16 in (0.015 in.)
Float Weight – 7 grams (0.4 grams)
Idle Adjustment Screw – 1-1/2 turns (1/4)
(Set Halfway Between Lean and Rich)
Quicksilver Lubrication/Sealant
Application Points
51
109
51
Loctite 222 (Obtain Locally)
Loctite Primer “T” (92-59327-1)
109
25
