Shift Link Rod Installation
and Adjustment to Engine
1. Position shift lever handle into neutral detent.
2. Manually shift outboard into neutral (propeller will
rotate freely).
3. Adjust shift link rod end to slip over shift actuator
bolt with slight preload adjustment toward re-
verse.
4. Place hole in end of shift link rod end over stud of
shift actuator and secure with lock nut and wash-
er. Tighten until snug then back off 1/4 turn.

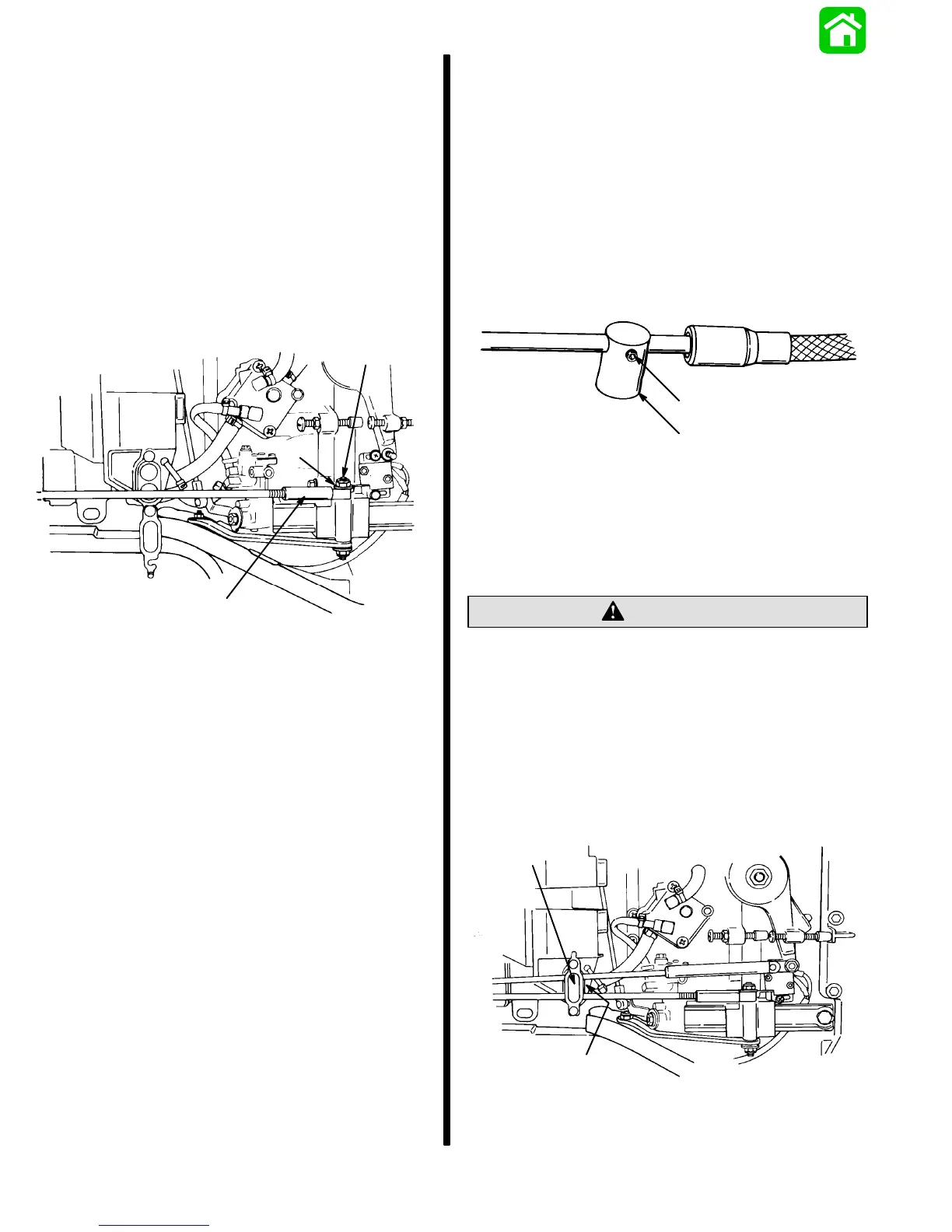

51622
a
b
c
a - Shift Link Rod End
b - Shift Actuator Stud
c - Lock Nut
5. Check shift link rod adjustment as follows:
a. Place engine shift lever in “F” (Forward) posi-
tion. Propeller should not rotate in a COUN-
TERCLOCKWISE direction. If propeller does
rotate COUNTERCLOCKWISE, length of shift
link rod must be reduced and Step “a” repeated.
b. Place engine shift lever in “N” (Neutral) position.
Propeller should rotate freely without drag. If
not, length of shift link rod must be increased
and Steps “a” and “b” repeated
c. While rotating propeller, place engine shift lever
in “R” (Reverse) position. If propeller can be ro-
tated in either direction, length of shift link rod
must be increased and Steps “a” thru “c” re-
peated.
d. Place engine shift lever in “N” (Neutral) position.
Propeller should turn freely without drag. If not,
length of shift link rod must be decreased and
Steps “a” thru “d” repeated.
Throttle Cable Installation
and Adjustment to Engine
IMPORTANT: Turn throttle cable conduit
clockwise until bottomed on tiller handle then
back off one turn before reconnecting throttle
cable to engine.
1. Rotate throttle twist grip fully clockwise to stop
“IDLE” position.
2. Back out set screw from throttle cable barrel until
2 or 3 threads of set screw are exposed.
51077
a
b
a - Set Screw
b - Throttle Cable Barrel
3. Place end of throttle cable guide over peg of
throttle lever and secure with locknut and washer.
Tighten until snug then back off 1/4 turn.
DO NOT exceed 1/4 turn on set screw after it has
bottomed-out.
CAUTION
4. Holding engine throttle lever against idle stop, ad-
just throttle cable barrel to slip into upper hole of
barrel receptacle, with a very light preload of
throttle lever against idle stop. Apply small
amount of Loctite 271 to threads of allen screw
and tighten until snug, then an additional 1/8 turn.
Lock barrel in place with barrel retainer.
c
d
51620
c - Barrel Receptacle
d - Barrel Retainer
