Mariner 80 - Water Pump Reassembly and Installation

5A-30 LOWER UNIT 90-13645--2 1095
Water Pump Reassembly and
Installation

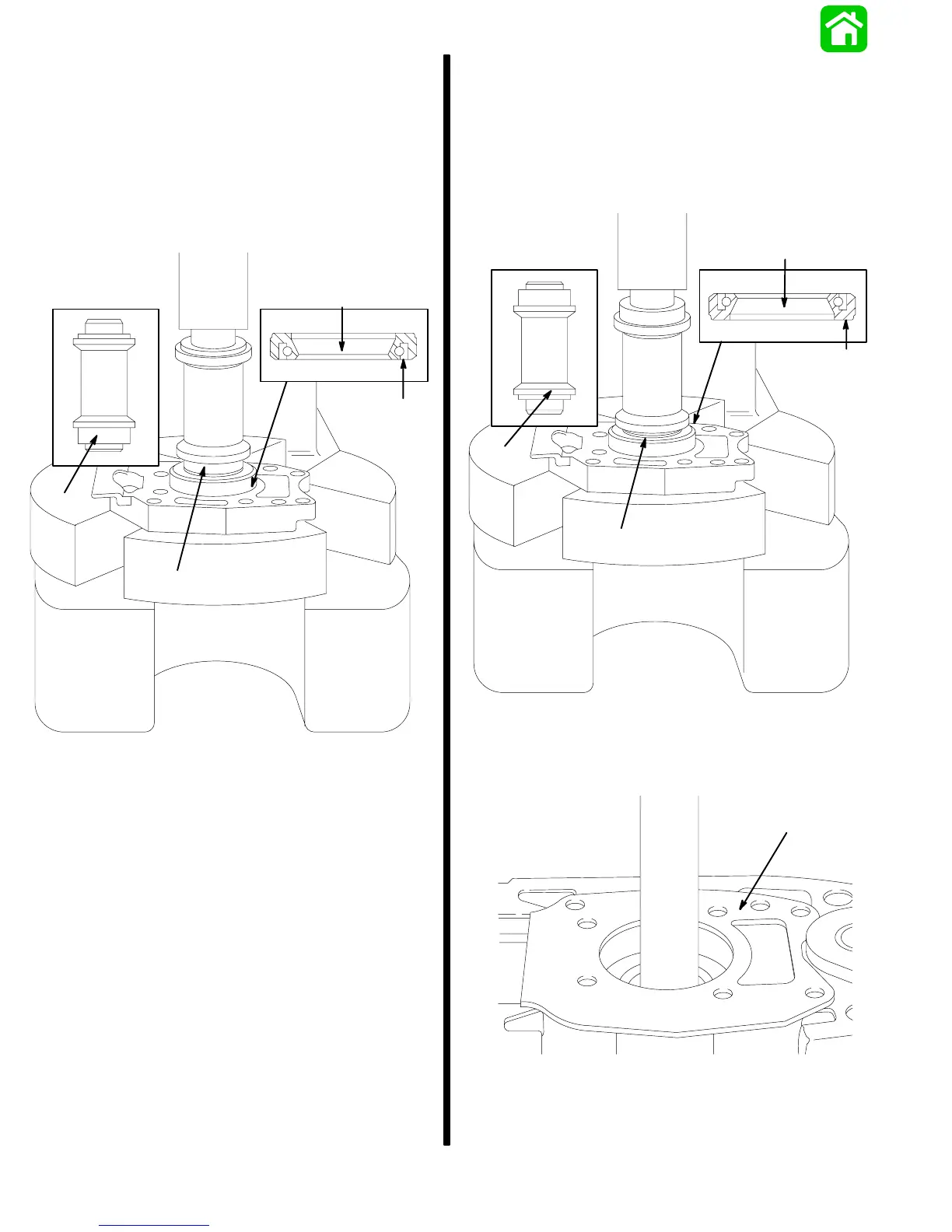

6. Place seal on longer shoulder side of Oil Seal
Driver (91-13949) with seal lip away from
shoulder.
7. Apply Loctite 271 on O.D. of seal; press seal into
water pump base until tool bottoms.
TEFLON COATED LIP
- FLAT BROWNISH
BLACK COLOR
- LIP FACES TOWARD
POWER HEAD
SPRING - FACES
TOWARD
POWER HEAD
a
b
b
51553
a
a - Seal
b - Oil Seal Driver (91-13949)
8. Place seal on shorter shoulder side of Oil Seal
Driver (91-13949) with seal lip toward shoulder.
9. Apply Loctite 271 on O.D. of seal; press seal into
water pump base until tool bottoms.
10. Lubricate lip of each seal with Quicksilver 2-4-C w/
Teflon (92-825407A12).
LIP FACES TOWARD
GEAR CASE
- GLOSS BLACK
COLOR
SPRING - FACES
TOWARD
GEAR CASE
51553
b
b
a
a - Seal
b - Oil Seal Driver (91-13949)
11. Install gasket.
19218
a
a - Gasket
