Mariner 80 - Manifold Removal

6C-24 90-13645--2 495POWER-TRIM

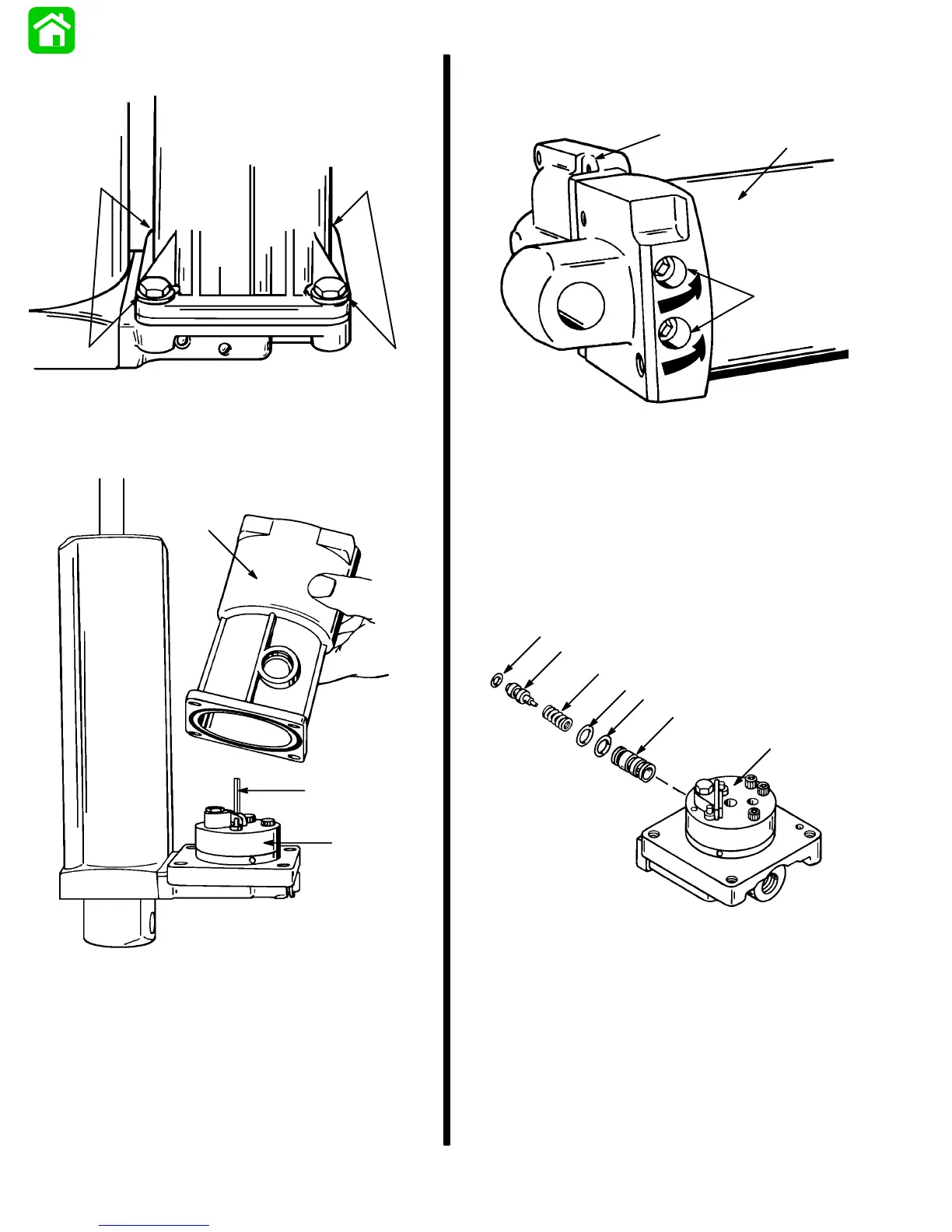

3. Remove four screws securing reservoir to manifold.
51193
a
a
a - Screws (4)
4. Remove reservoir from manifold.
5. Remove drive shaft from oil pump.
51486
c
b
a
a - Reservoir
b - Driver Shaft
c - Oil Pump
Manifold Removal
1. Remove screws and manifold from cylinder.
51007
c
b
a
a - Trim Cylinder
b - Manifold
c - Screw (2)
2. Remove check valve components from manifold.
IMPORTANT: Sleeve (d) is chamfered on I.D. on
end opposite drilled cross hole. Install spool (e)
(with O-ring installed) from chamfered end of
sleeve to avoid possibility of damaging O-ring on
spool.
51560
e
a
b
d
b
b
c
a - Manifold and Pump
b - O-ring (3)
c - Spring
d - Sleeve
e - Spool
