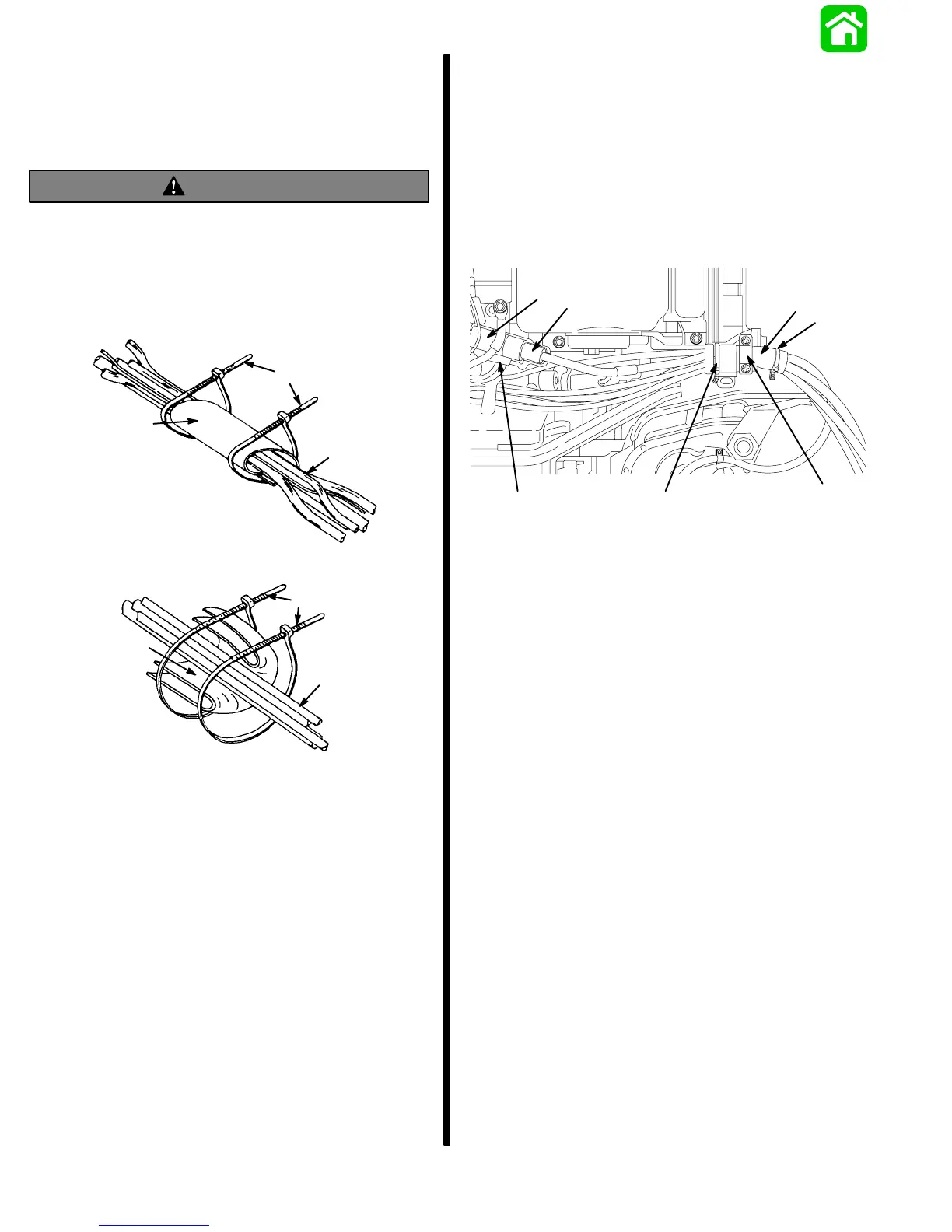

Connecting Engine Wiring
Harness and Routing of
Engine Battery Cables
WARNING
Cables passing through cowl must be protected
from chafing or being cut, by using the neoprene
sheet as described in the following steps. Failure
to protect cables as described could result in
electrical system failure and/or possible injury to
occupants of boat.
a
b
c
a
b
c
Models with Power Trim
Models without Power Trim
a - Wiring Harness
b - Neoprene Sheet
c - Sta-Straps
1. Plug remote control harness connector into en-
gine harness connector, then secure connector in
place with retainer as shown.
2. Wrap neoprene sheet around cable bundle and
secure each end with a sta-strap. Secure to
bracket with retainer.
IMPORTANT: On Models without Power Trim, the
neoprene sheet must be folded once and then
wrapped around cables as shown.
20290
e
a
b
c
d
f
f
a - Engine Connector
b - Retainer
c - Harness Connector
d - Harness Retainer
e - Neoprene Sheet
f - Sta-Strap(s)
Models with Power Trim
