6A-40 POWER TRIM 90-13645--2 495
Reassembly
IMPORTANT: Components must be dirt and lint
free. Slightest amount of debris in Power Trim
system could cause system to malfunction.

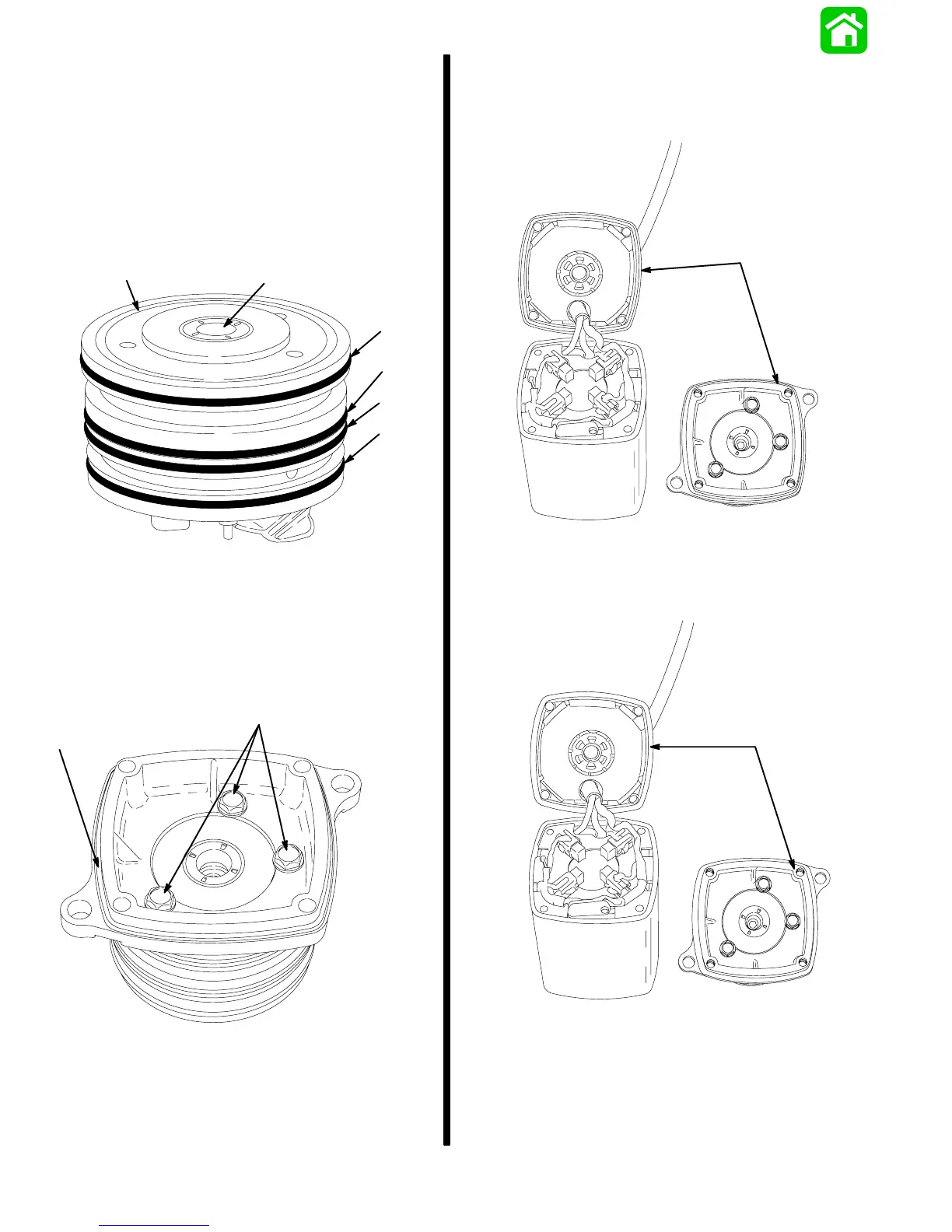

1. Install O-rings and flat ring(s).
Apply Quicksilver Power Trim and Steering Fluid
or Automatic Transmission Fluid (ATF) Type F, FA
or Dexron II on lip of seal.
18452
a
b
c
d
e
c
a - O-ring (or Flat Ring)
b - O-ring [2.739 (69.57mm) I.D.]
c - O-ring [2.614 (66.40mm) I.D.]
d - Flat Ring
e - Seal
2. Apply Loctite 271 on bolts, and install end frame
cap.
18469
a
b
a - Bolts
b - End Cap
NOTE:
Some motors use 2 bolts to secure end frame
cap.
3. Install a flat ring (if equipped) into groove in each
end cap.
NOTE: Verify rings are not twisted after installation.
18465
a
a - Flat Ring (If Equipped)
Glue a rubber gasket (if equipped) onto each end
cap using Quicksilver Bellows Adhesive.
18462
a
a - Rubber Gasket
