Mariner 80 - Connecting Engine Wiring Harness and Routing of Engine Cables

7A-24 ENGINE ATTACHMENTS 90-13645--2 495

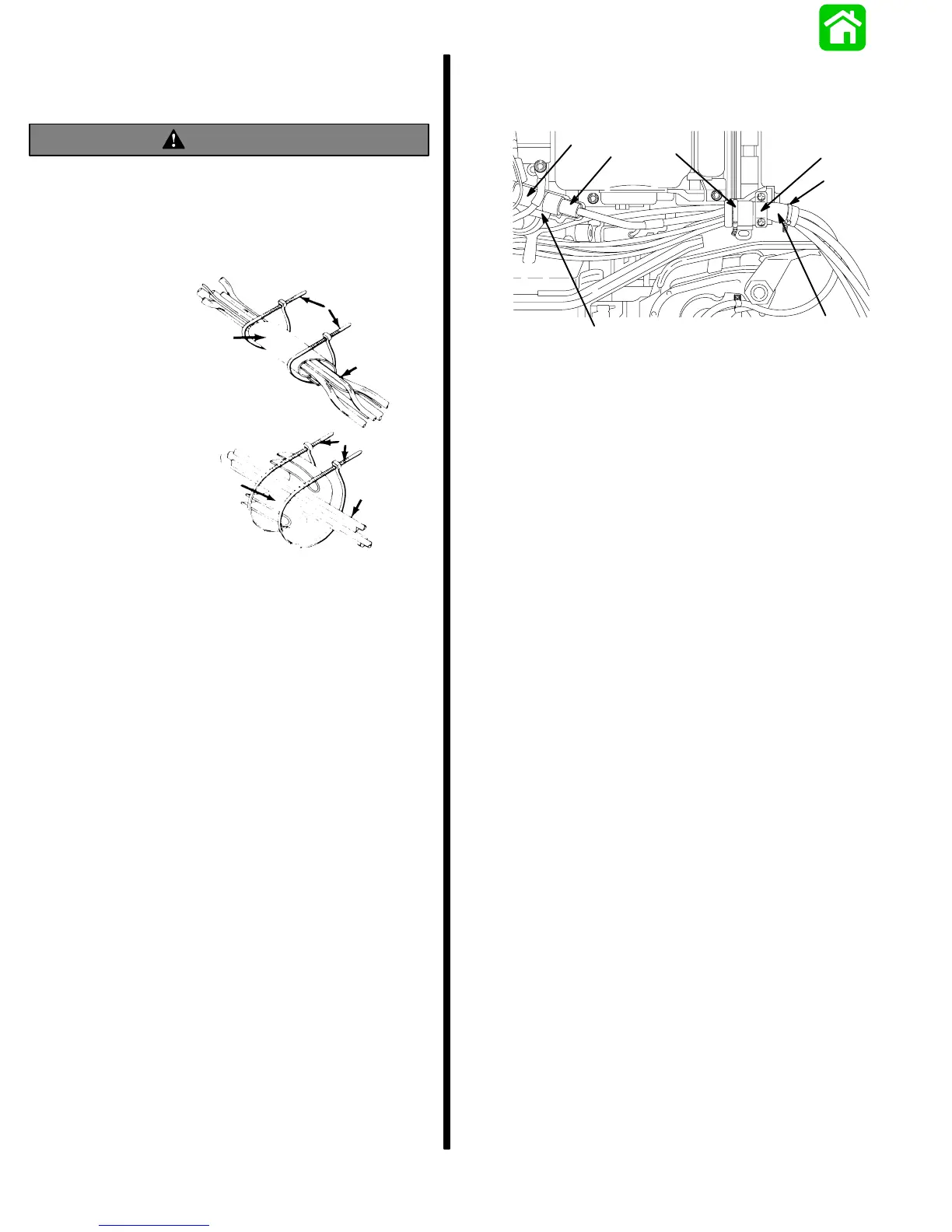

Connecting Engine Wiring Harness
and Routing of Engine Cables
WARNING
Wiring passing through cowl must be protected
from damage by using a neoprene sheet as
shown. Failure to protect wiring could cause
chafing or cuts in wiring resulting in electrical
system failure and/or possible bodily injury.
Models with Power Trim
Models without Power Trim
a
b
c
a
b
c
a - Wiring Harness
b - Neoprene Sheet
c - Sta-Straps
1. Plug remote control harness connector into en-
gine harness connector, then secure connector in
place with retainer as shown.
IMPORTANT: On Models without Power Trim, the
neoprene sheet must be folded once and then
wrapped around cables as shown.
2. Wrap neoprene sheet around cable bundle and
secure each end with a sta-strap. Secure to
bracket with retainer.
a
b
c
d
e
f
20290
f
a - Engine Connector
b - Retainer
c - Harness Connector
d - Harness Retainer
e - Neoprene Sheet
f - Sta-Strap(s)
Models with Power Trim
