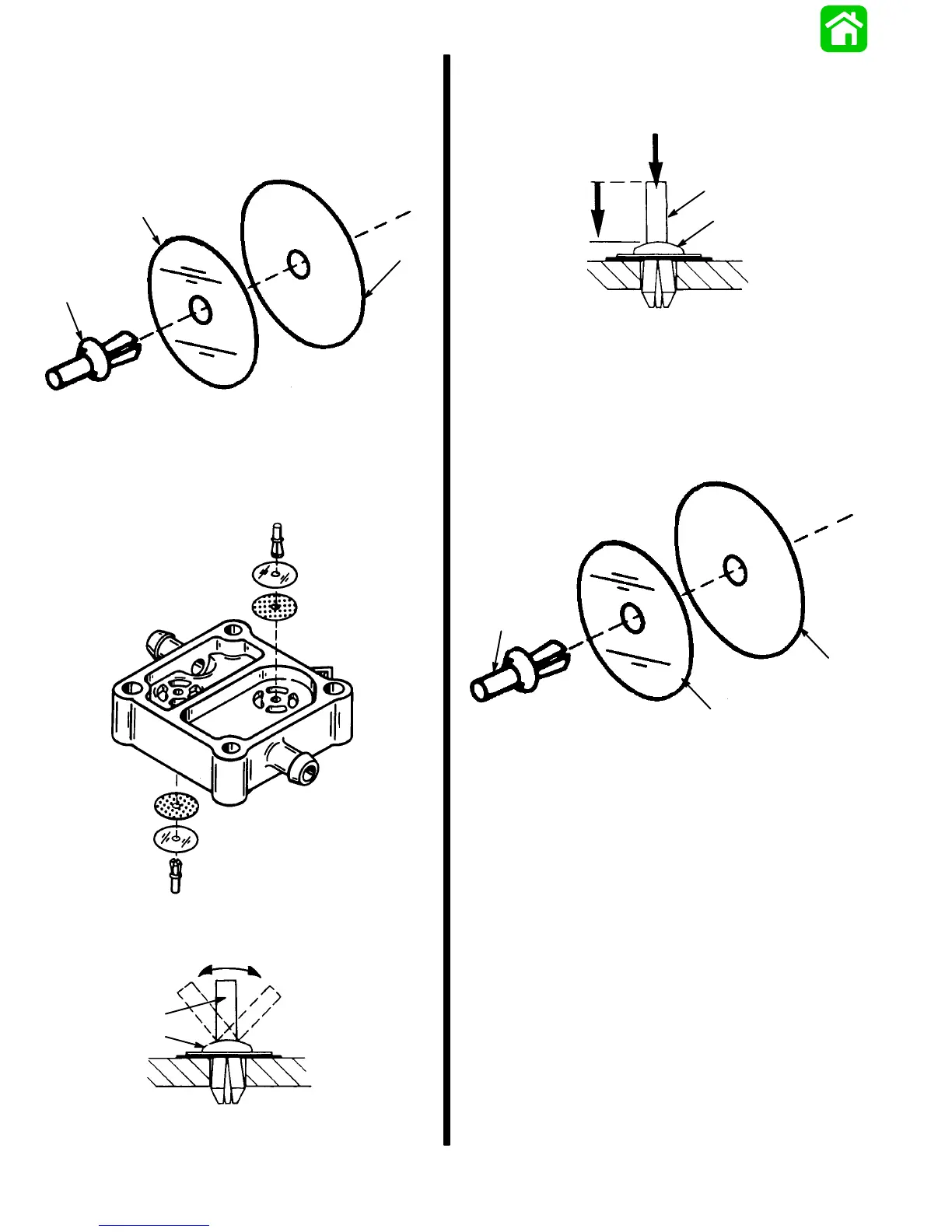

Check Valve Reassembly
ASSEMBLY (DESIGN I)
1. Insert retainer thru plastic disc and rubber check
valve.
23601
a
b
c
a - Retainer
b - Plastic Disc
c - Check Valve
2. Install check valves and retainers into fuel pump
body.
24514
3. With retainer installed in pump body, break retain-
er rod from retainer by bending sideways.
23601
a
b
a - Retainer Rod
b - Retainer
4. Reinstall rod into retainer cap and, use a small
hammer or hammer and punch to tap rod down
into retainer until flush with top of retainer.
23601
a
b
a - Rod
b - Retainer Cap
Check Valve Reassembly
ASSEMBLY (DESIGN II)
1. Insert retainer thru plastic disc and rubber check
valve.
51530
a
b
c
a - Retainer
b - Plastic Disc
c - Check Valve
To Next Page
