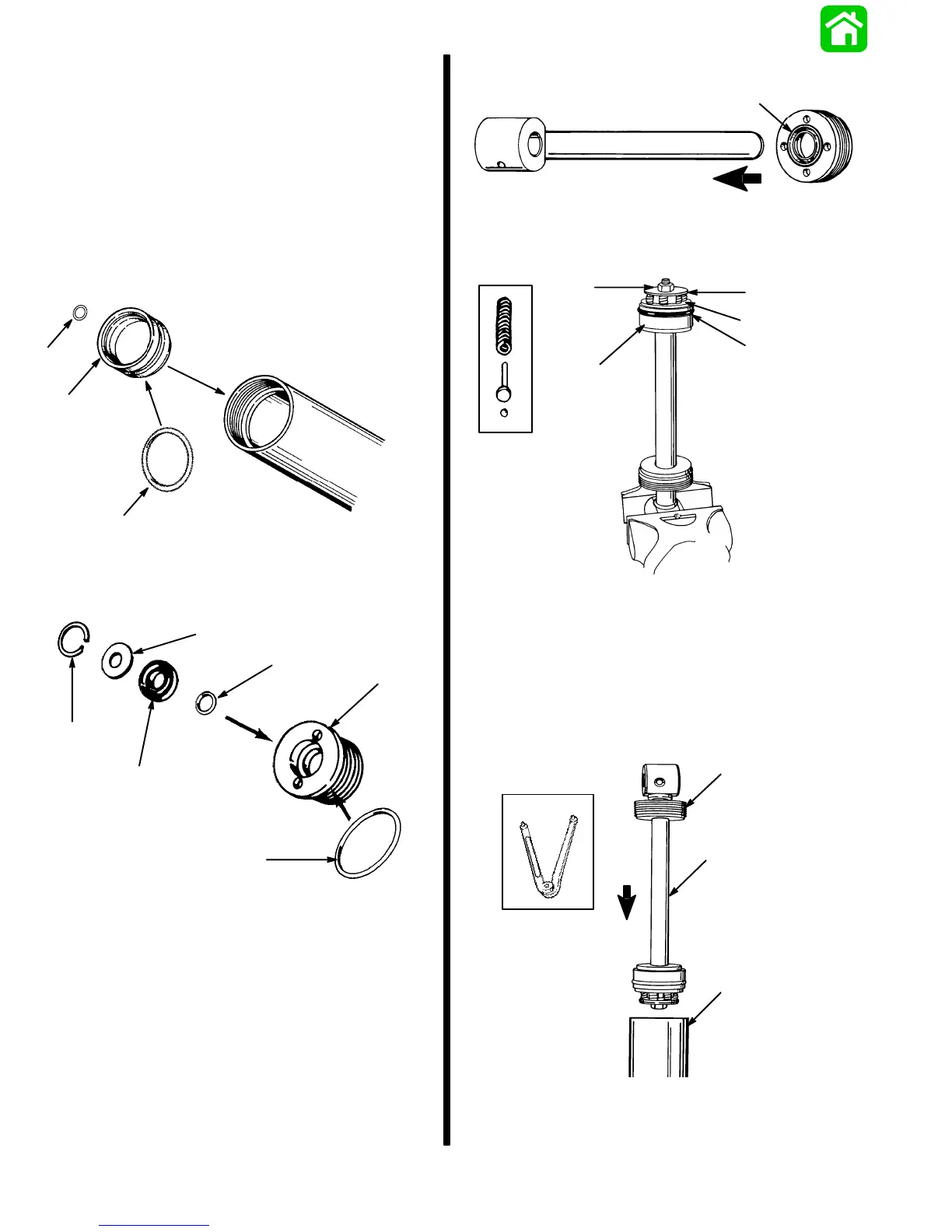

6B-26 90-13645--2 495POWER TRIM
REASSEMBLY
IMPORTANT: Components must be clean for reas-
sembly. Any debris in the system can cause the
system to malfunction.
NOTE
: Refer to “Tilt Ram Components” for proper
O-ring sizes.
1. Apply Quicksilver Power Trim and Steering Fluid
on O-rings prior to reassembly.
2. Install O-ring on Memory Piston Cup and install in
cylinder.
a
b
51372
a
a - O-ring
b - Memory Piston Cup
3. Assemble end cap.
a
b
c
d
e
b
a - End Cap
b - O-ring (2)
c - Scraper Seal
d - Washer
e - Retaining Ring
4. Install end cap.
51376
a
a - End Cap
5. Install components on rod.
51340
51363
a
b
c
d
e
c
a - Piston
b - O-ring
c - Check Valve Assembly (7)
d - Washer
e - Bolt or Locknut (Tighten securely)
6. Clamp cylinder in a soft jawed vise and install tilt
rod assembly. Use spanner wrench and tighten
end cap securely.
51341
51337
91-74951
a
b
c
a - Cylinder
b - Tilt Rod Assembly
c - End Cap (Tighten securely) - Use spanner wrench
To Next Page
