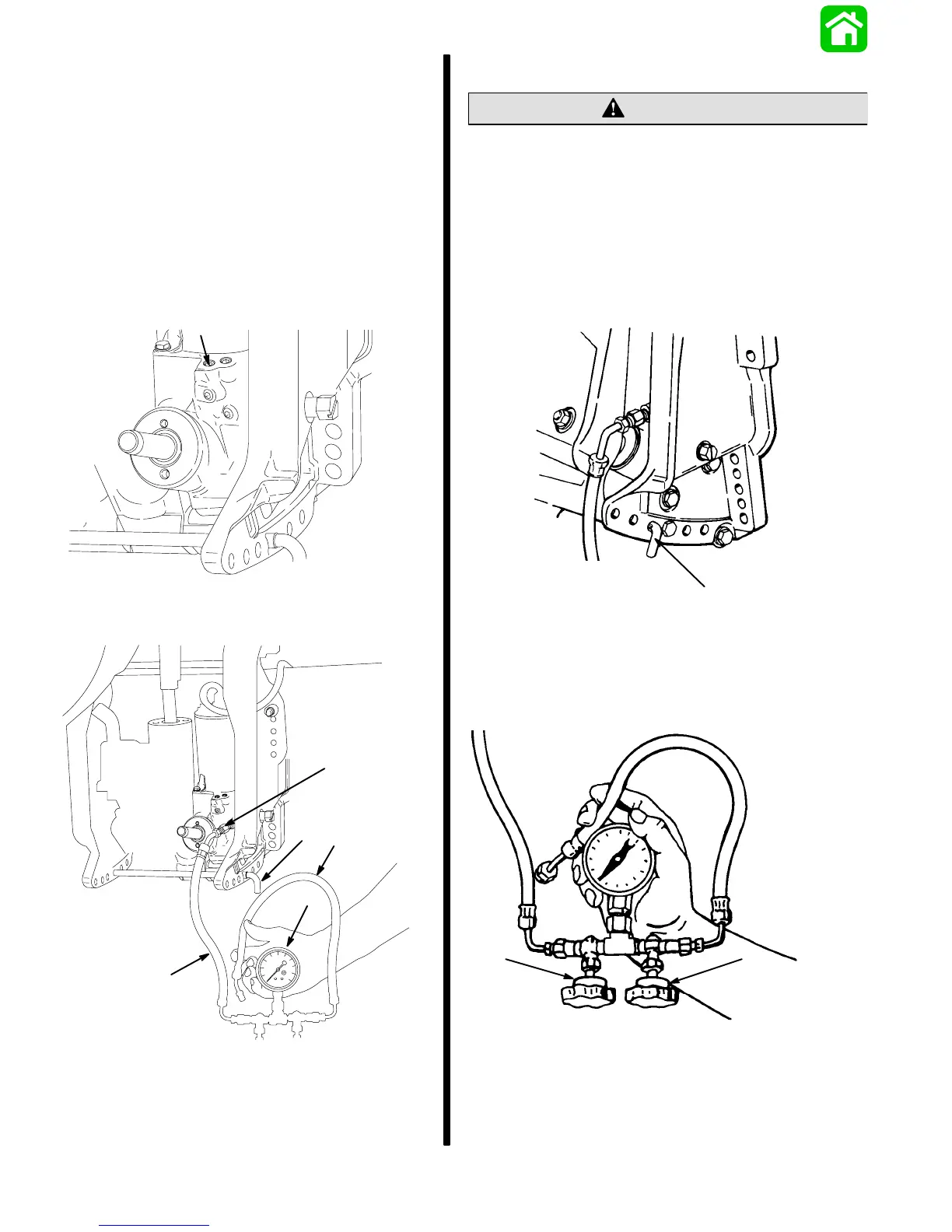

6B-18 90-13645--2 495POWER TRIM
“UP” Pressure Check
IMPORTANT: Insure battery is fully charged be-
fore performing tests.
1. Tilt outboard to full “Up” position and engage tilt
lock lever.
2. Slowly remove “Fill” plug to bleed pressure from
reservoir.
3. Turn Manual Release Valve 3 to 4 turns (counter-
clockwise) to bleed any remaining pressure.
4. Remove allen plug.
51353
a
a - Allen Plug
5. Install components.
51374
a
b
c
d
e
a - Adapter Fitting (22-11243)
b - Test Gauge Assembly
c - Tilt Pin (Position in hole shown)
d - Hose
e - Hose (not used for this check)
6. Disengage tilt lock lever.
Failure to install spare tilt pin (or hardened bolts
and nuts) in hole shown could result in transom
bracket failure and possible injury.
CAUTION
7. Move outboard “In” until hole in swivel bracket
“ear” aligns with the third tilt hole in transom brack-
et. Lock engine in trim range by installing a 3/8 in.
(9.5 mm) diameter tilt pin or two 3/8 in. (9.5 mm)
hardened bolts and nuts thru the transom brack-
ets and swivel bracket in the hole shown.
51374
a
a - Tilt Pin Hole (Install spare tilt pin or hardened bolts and nuts.)
8. Install “Fill” plug.
9. Close Manual Release Valve (clockwise).
10. Open valve (a) and close valve (b).
51374
a
b
a - Open valve
b - Close valve
