4A-1390-13645--2 495 POWERHEAD

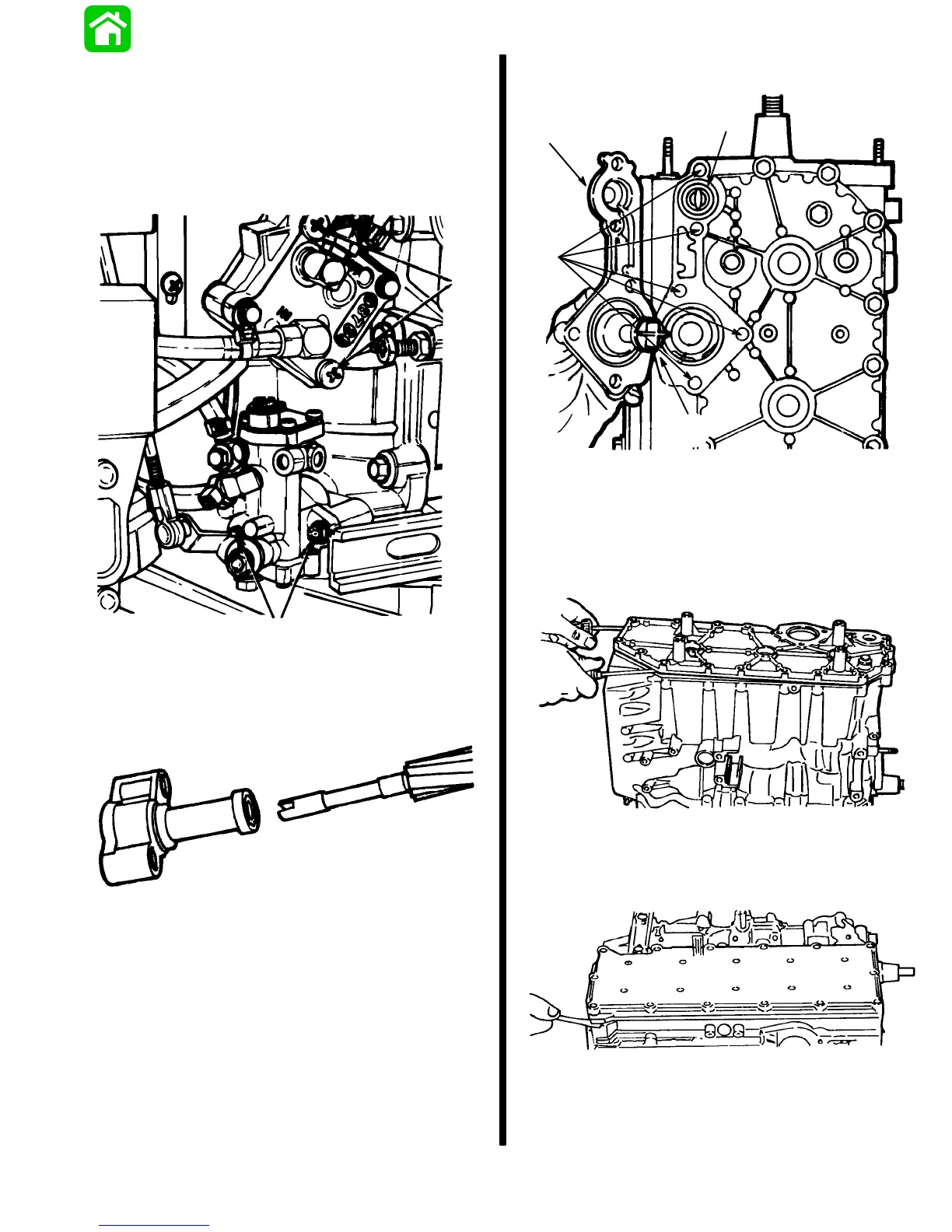

Powerhead Disassembly
1. Remove fuel pump by removing 2 screws.
2. Remove oil injection pump by removing 2 bolts.
3. Remove hoses to fuel pump and oil injection
pump.
19056
a
b
a - Screws
b - Bolts
4. Remove oil injection pump shaft and housing.
20041
5. Remove thermostat housing and components.
25907
a
b
c
d
a - Bolts
b - Thermostat Cover
c - Thermostat
d - Poppet Valve
6. Remove cylinder block cover.
20039
NOTE:
There are “pry-slots” on casting as shown by
screwdriver positions.
7. Remove exhaust cover and divider plate.
20029
