Mariner 80 - Fuel System (Linkage)

3A-16 90-13645--2 495FUEL SYSTEM AND CARBURETION
Fuel System (Linkage)

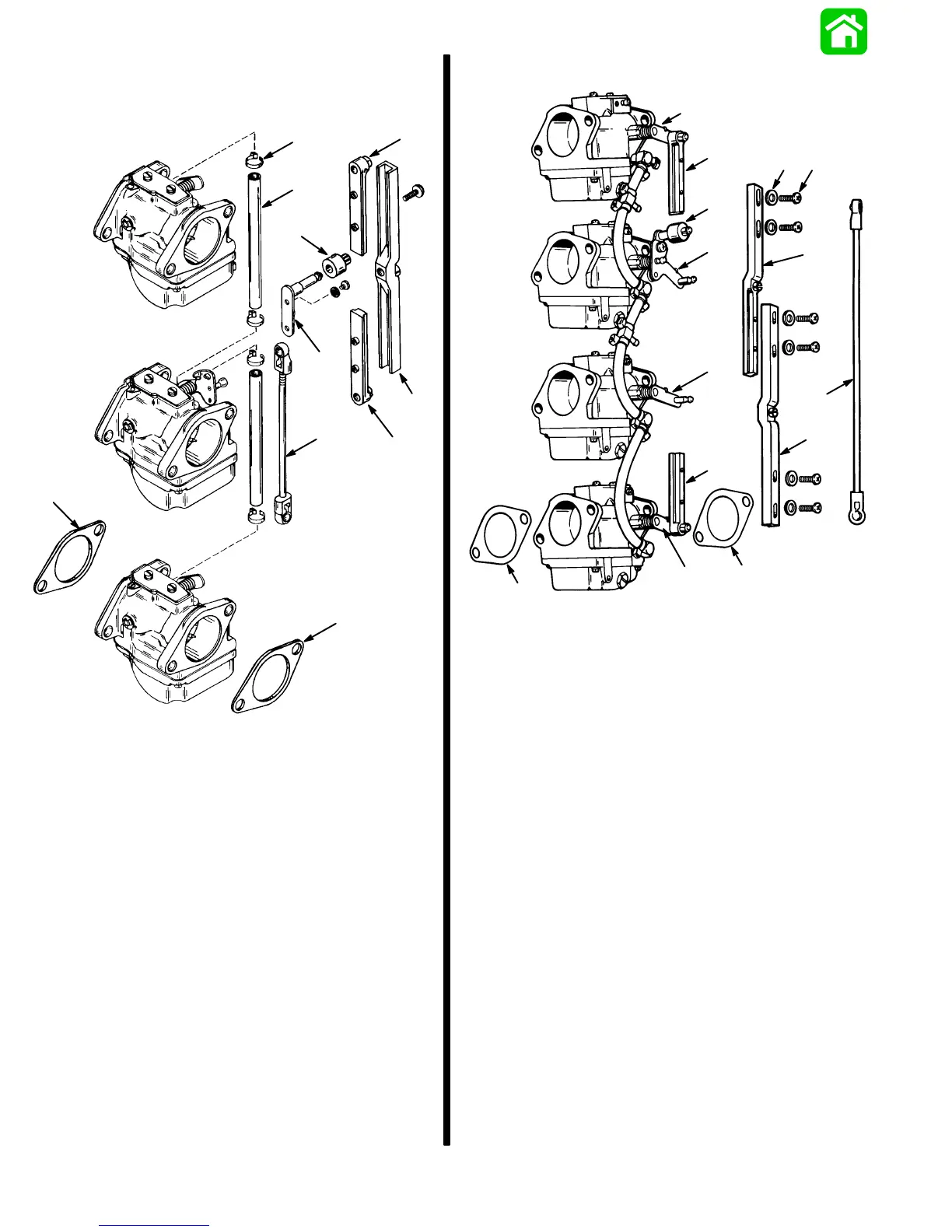

3 Cylinder Carburetor/Linkage Arrangement
a
b
c
d
e
f
g
h
i
j
a - Sta-Straps (4)
b - Fuel Liners (2)
c - Throttle Link
d - Throttle Arm
e - Throttle Link
f - Roller
g - Arm
h - Oil Injection Pump Link
i - Gasket
j - Gasket
4 Cylinder Carburetor/Linkage Arrangement
ab
c
d
e
f
g
g
g
g
h
i
j
k
a - Screw (6)
b - Washer (6)
c - Carburetor Link
d - Carburetor Link
e - Oil Injection Pump Link Rod
f - Roller
g - Throttle Shaft
h - Throttle Link
i - Throttle Link
j - Gasket
k - Gasket
