90-13645--2 10953B-2 OIL INJECTION SYSTEM
Filling Oil Tank
1. Quicksilver 2-Cycle Outboard Oil is recom-
mended for this oil injection system. In an emer-
gency, when Quicksilver 2-Cycle Outboard Oil is
not available, substitute a high quality 2-cycle oil
that is intended for outboard use and meets BIA
rating TC-WII or TC-W3, shown on oil container.
BIA rating TC-W is the Boating Industry Associa-
tion’s designation for approved, 2-cycle water-
cooled outboard oils.
2. Remove fill cap from the oil tank and fill tank with
oil. Retighten the fill cap.

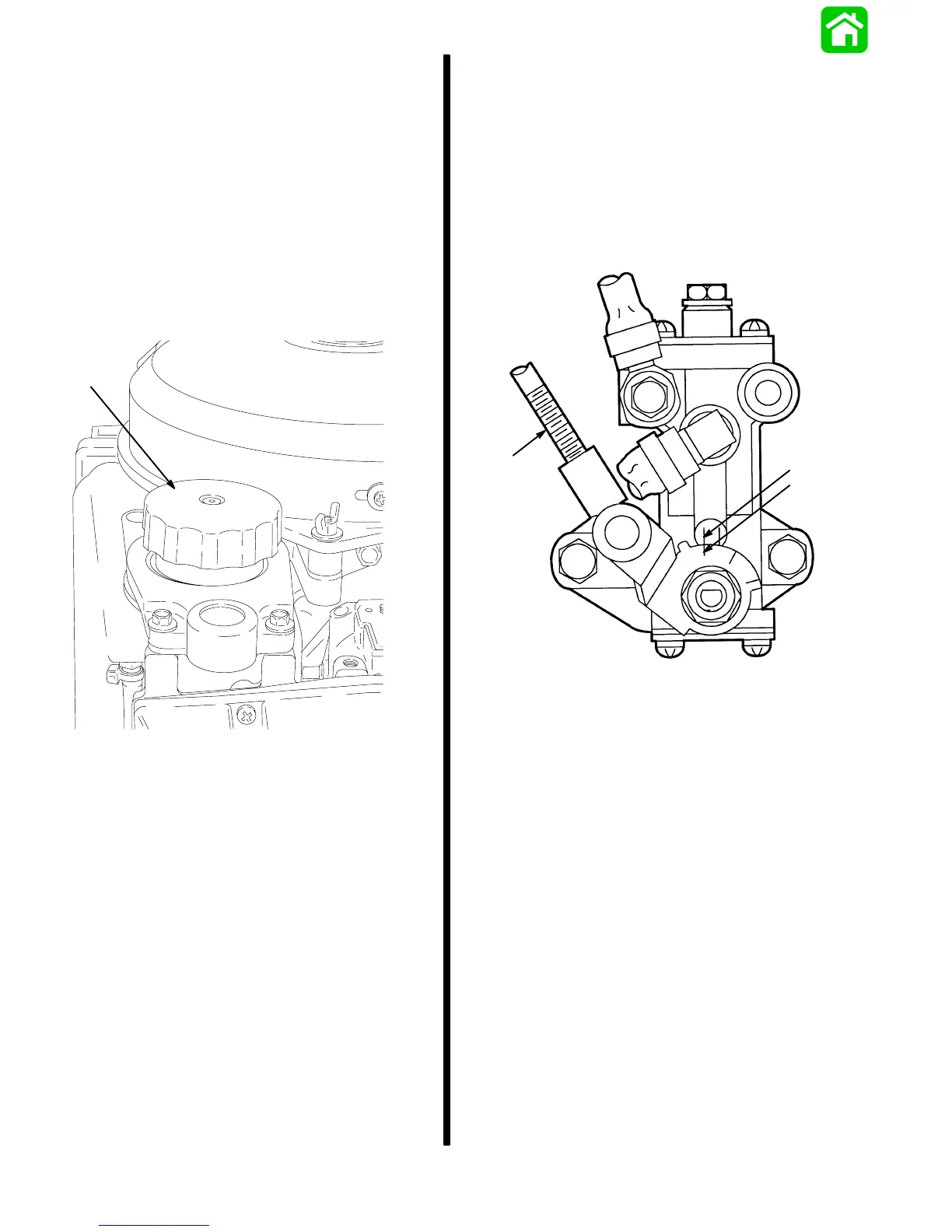

25955
a
a - Fill Cap
Carburetor/Oil Pump
Synchronization
1. While holding throttle arm at idle position, adjust
length of link rod so that stamped mark of oil pump
body aligns with stamped mark of oil pump lever,
and lever is in closed position.
2. Check full travel of link rod that it does not interfere
with hoses, sta-straps, etc.
a
b
c
a - Mark on Body
b - Mark, Fully Closed on Lever
c - Link Rod
