Mariner 80 - Engine Wiring Diagram (4 Cylinder Models with Small Voltage Regulator;Rectifier)

2D-590-13645--2 495 ELECTRICAL AND IGNITION

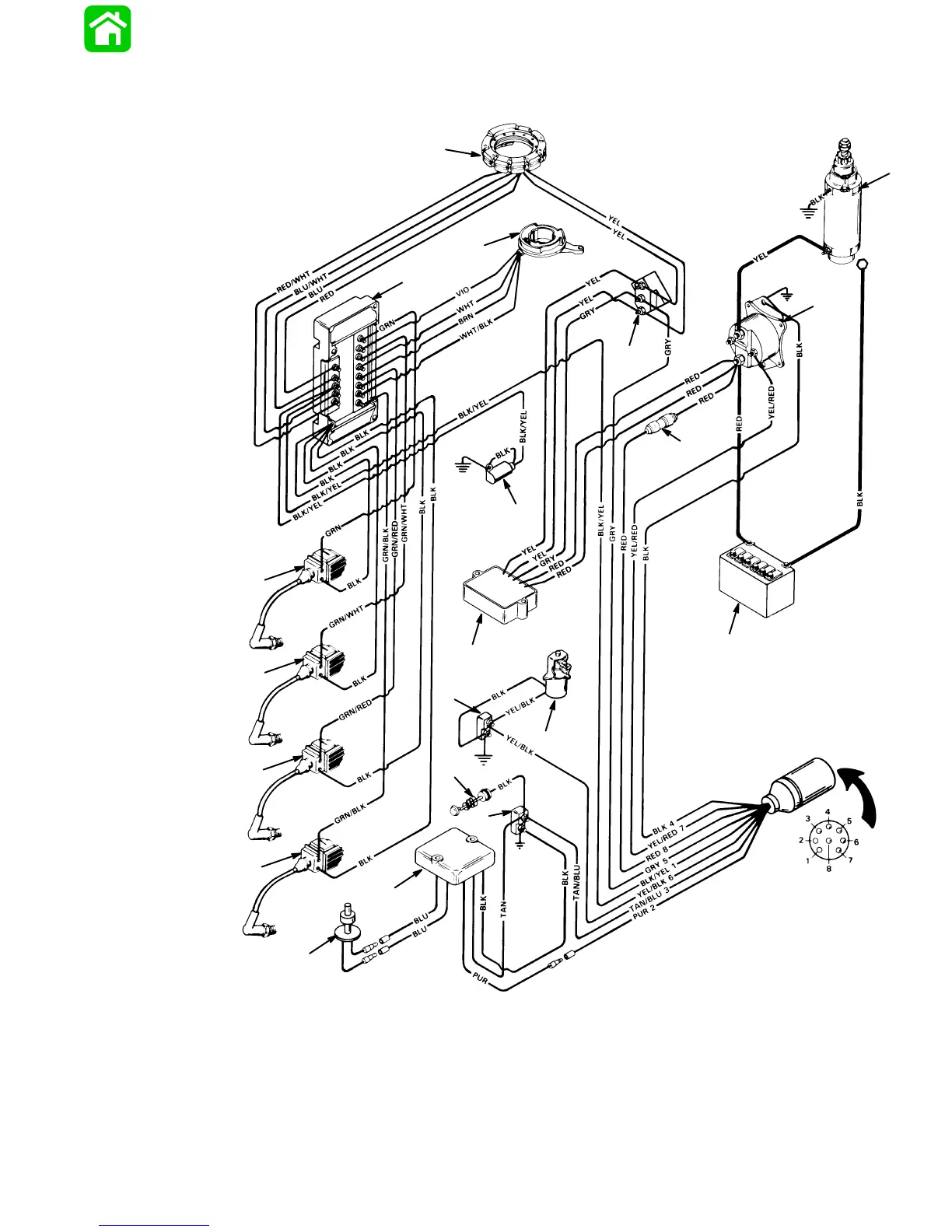

Engine Wiring Diagram (4 Cylinder Models
With Small Voltage Regulator/Rectifier)
51002
BLK  BLACK
BLU  BLUE
BRN  BROWN
GRY  GRAY
GRN  GREEN
PUR  PURPLE
RED  RED
TAN  TAN
VIO  VIOLET
WHT  WHITE
YEL  YELLOW
a
b
c
h
d
e
f
g
i
j
k
l
m
n
o
p
q
r
o
o
j
a - Stator
b - Trigger
c - Switch Box
d - Ignition Coil Cylinder No. 1
e - Ignition Coil Cylinder No. 2
f - Ignition Coil Cylinder No. 3
g - Ignition Coil Cylinder No. 4
h - Mercury Switch
i - Starter Motor
j - Starter Solenoid
k - Voltage Regulator/Rectifier
l - 20 Amp Fuse
m- Battery
n - Fuel Enrichment Valve
o - Terminal Block
p - Overheat Sensor
q - Warning Module
r - Low Oil Sensor (Float)
