90-13645--2 1095 2A-7ELECTRICAL AND IGNITION

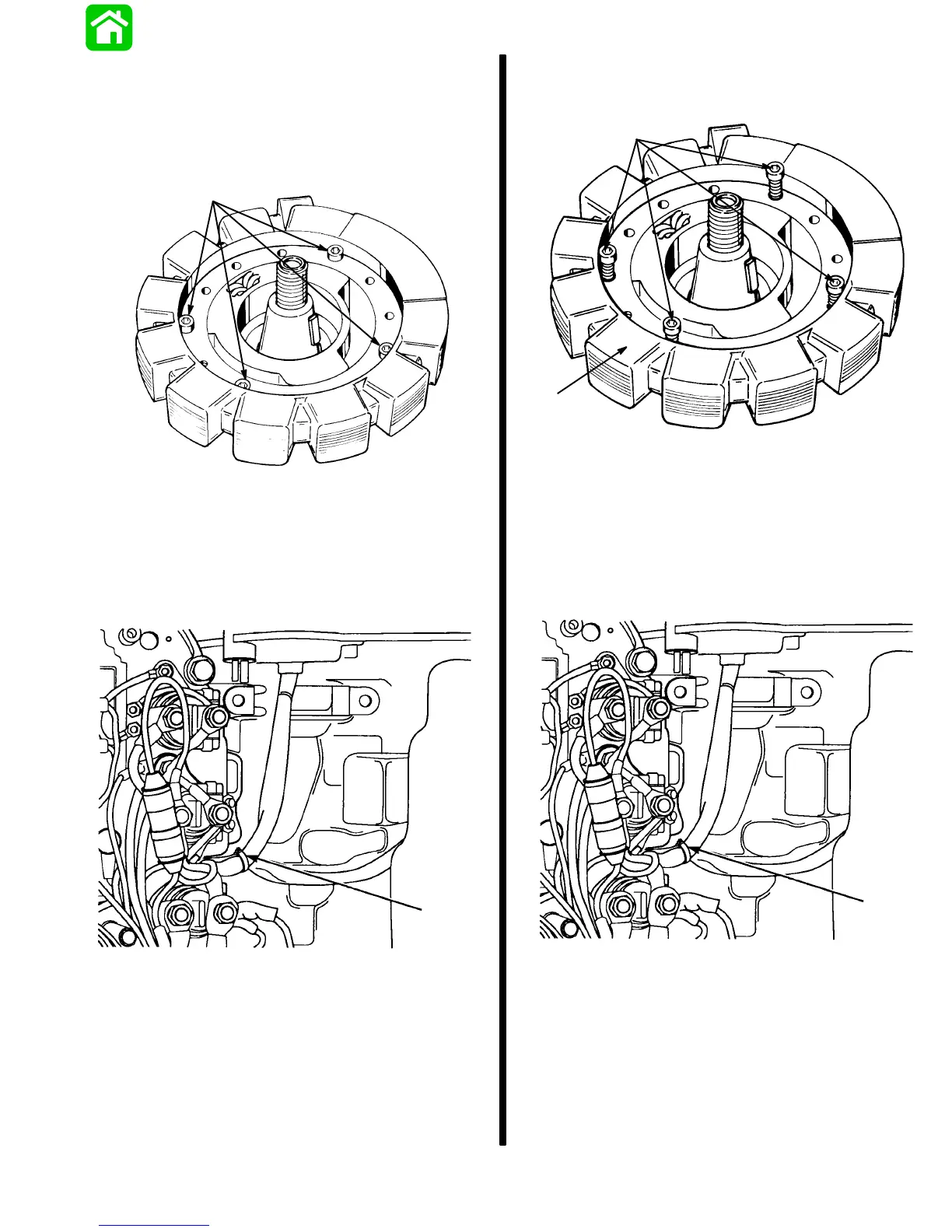

Stator
REMOVAL
1. Remove flywheel; refer to “Flywheel Removal.”
2. Remove screws.
51123
a
a - Screws
3. Remove starter motor as outlined in Section 2B.
4. Remove sta-strap.
5. Disconnect stator leads from switch box and re-
move stator.
a
19453
a - Sta-Strap
INSTALLATION
1. Install stator as shown.
51124
a
b
a - Screws; apply Loctite Grade “A” on threads (unless Patch
Screw used) and torque to 60 lbs. in. (6.6 Nm)
b - Stator
2. Connect stator leads; refer to wiring diagrams in
Section 2D.
3. Install sta-strap.
4. Install starter motor; refer to Section 2B.
a
19453
a - Sta-Strap
5. Install flywheel; refer to “Flywheel Installation”,
preceding.
