6B-14 90-13645--2 495POWER TRIM
Power Trim Assembly
Removal and Installation
Removal

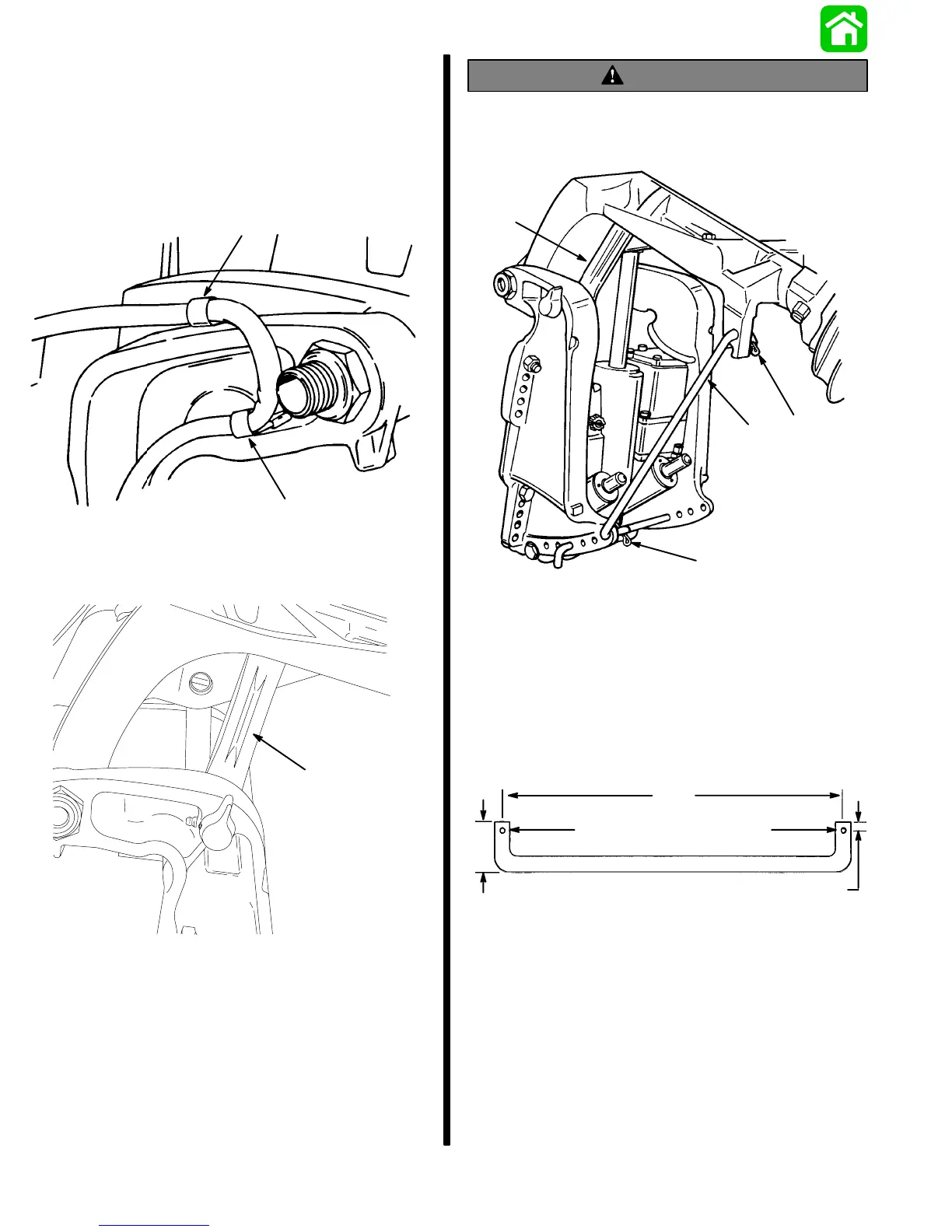

1. Remove clamps on transom bracket to free power
trim wiring.
5137
7
a
a
a - Clamps
2. Raise outboard to full “Up” position and engage tilt
lock lever.
50605
a
a - Tilt Lock Lever
WARNING
Failure to support outboard as shown could result
in personal injury and/or damage to outboard or
boat.
51346
a
b
c
c
a - Tilt Lock Lever
b - Support Tool
c - Retaining Clips
IMPORTANT: Support outboard as shown above
to prevent engine from tipping when power trim
retaining pin is removed.
SUPPORT TOOL
3/8 in. diameter metal rod (a used shift shaft works
well).
14″
2″
1/4″
aa
a - Drill Holes for Retaining Clips
METRIC CONVERSION
14 in. = 35.56 cm 2 in. = 50.80 mm
3/8 in. = 9.50 mm 1/4 in. =6.35 mm
