4A-3990-13645--2 495 POWERHEAD

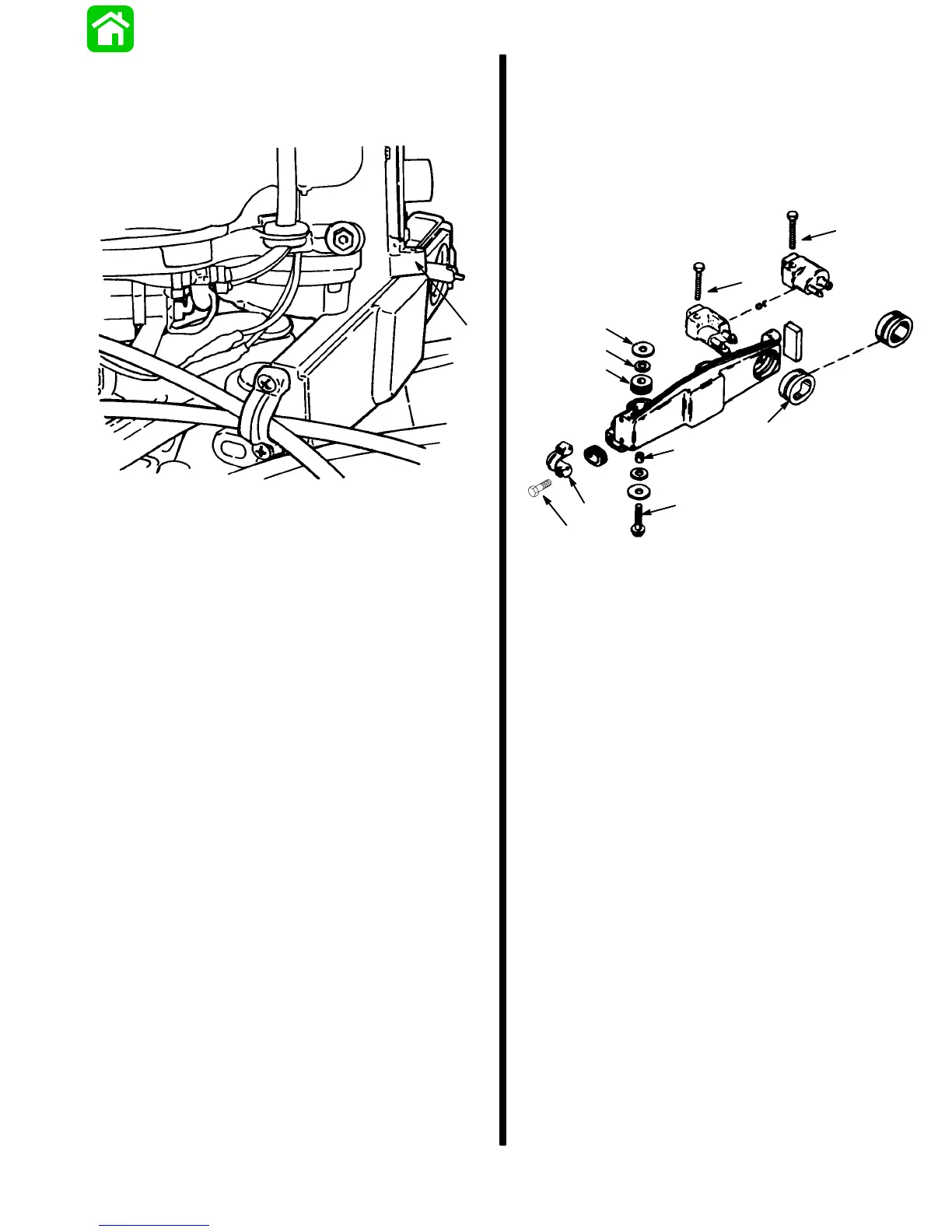

ATTACH FRONT COWL MOUNTING BRACKET
Front cowl mounting bracket is installed in location
“a”.
19072
a
Install Mounting Bracket, as shown below. Grommets
“c” and “g” normally are left in place in the bracket on
disassembly. Bushing “d” inserts in grommet “c”.
Position wiring and secure with cable retainer (“strap”
casting).
Note sequence of washers, etc.
a
b
c
d
e
f
g
e
e
e
a - Washer
b - Washer
c - Grommet
d - Bushing
e - Screw
f - Retainer
g - Grommet
h - Seal
