Mariner 80 - Tilt Ram Components

6A-28 POWER TRIM 90-13645--2 495

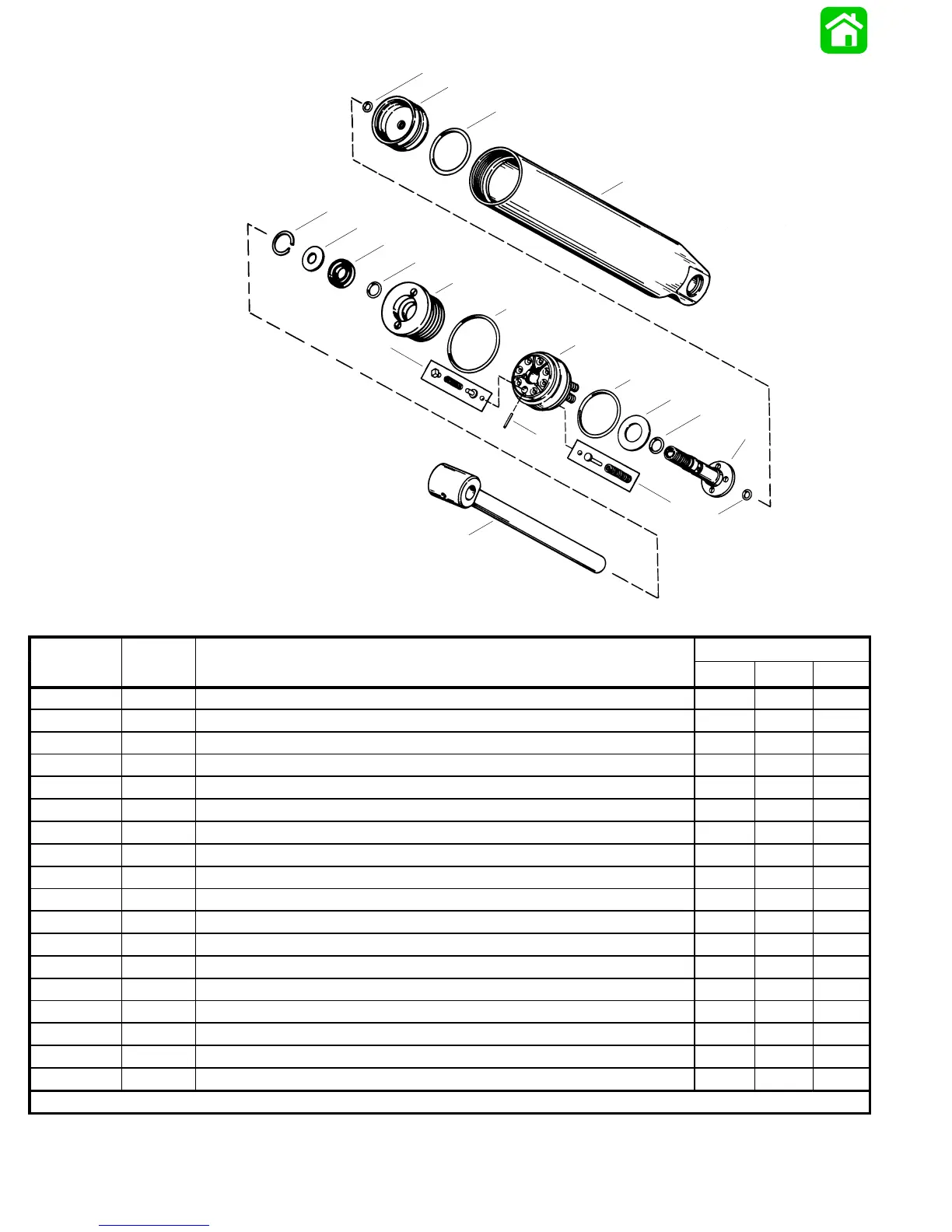

Tilt Ram Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
2
4
TORQUE
REF. NO. QUAN. DESCRIPTION lb. in. lb. ft. N⋅m
1 1 Housing, Tilt Ram
2 1 O-ring (1.957 I.D.)
3 1 Cup
4 1 O-ring (.307 I.D.)
5 1 Rod End
6 1 O-ring (.661 I.D.)
7 1 Washer
8 1 Piston
9 1 O-ring (2.067 I.D.)
10 1 Cap
11 1 O-ring (.854 I.D.)
12 1 Scraper
13 1 Washer
14 1 Retaining Ring
15 1 Check Valve Assembly
16 1 Check Valve Assembly
17 1 Roll Pin
18 1 Rod
 Contents of “Tilt Cylinder O-ring Kit” (P/N 25-41478A1)
