Mariner 80 - Warning Horn System Wiring Diagram

90-13645--2 4953B-6 OIL INJECTION SYSTEM

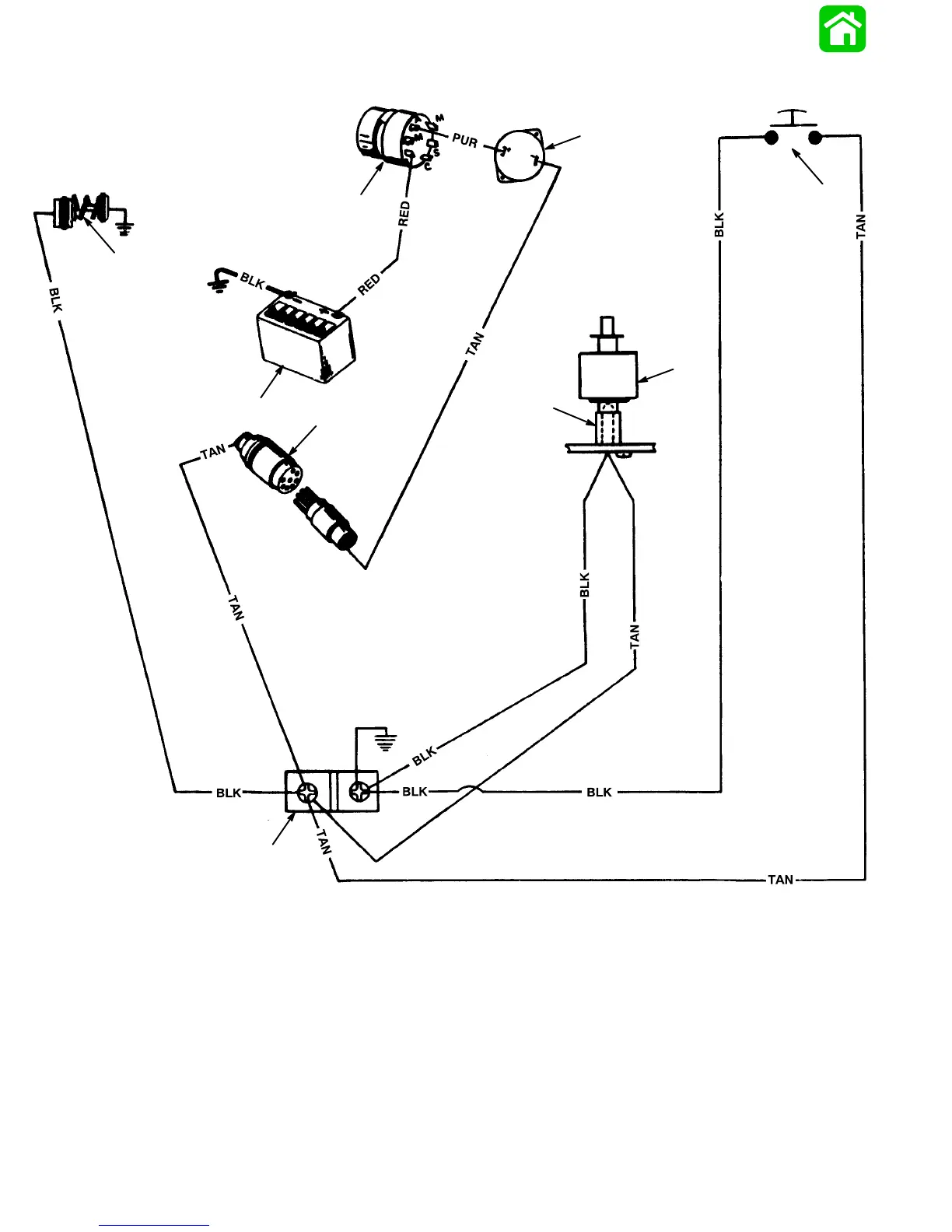

WARNING HORN SYSTEM WIRING DIAGRAM
f
i
h
g
c
d
b
a
e
a - Ignition Switch
b - Powerhead Temperature Sensor
c - Battery
d - Wiring Harness Connectors
e - Terminal Block
f - Warning Horn
g - Low Oil Sensor
h - Magnetic Float
i - Warning Horn Test Button (Some
Models)
