Mariner 80 - Electrical System Troubleshooting; Power Trim System Wiring Diagram

90-13645--2 495 6B-9POWER TRIM
ELECTRICAL SYSTEM TROUBLESHOOTING
CONDITION OF TRIM SYSTEM PROBLEM
A. Trim motor does not run when trim button is depressed. 1, 2, 4, 5, 6, 7
B. Trim system trims opposite of buttons. 3
C. Cowl mounted trim buttons do not activate trim system. 2, 4, 5, 6
PROBLEM
1. Battery low or discharged.
2. Open circuit in trim wiring.
3. Wiring reversed in remote control.
4. Wire harness corroded through.
5. Internal motor problem (brushed, shorted armature).
6. Blown fuse(s).
7. Trim Solenoids Failed
NOTE : Refer to following pages to troubleshoot Power Trim Electrical System.

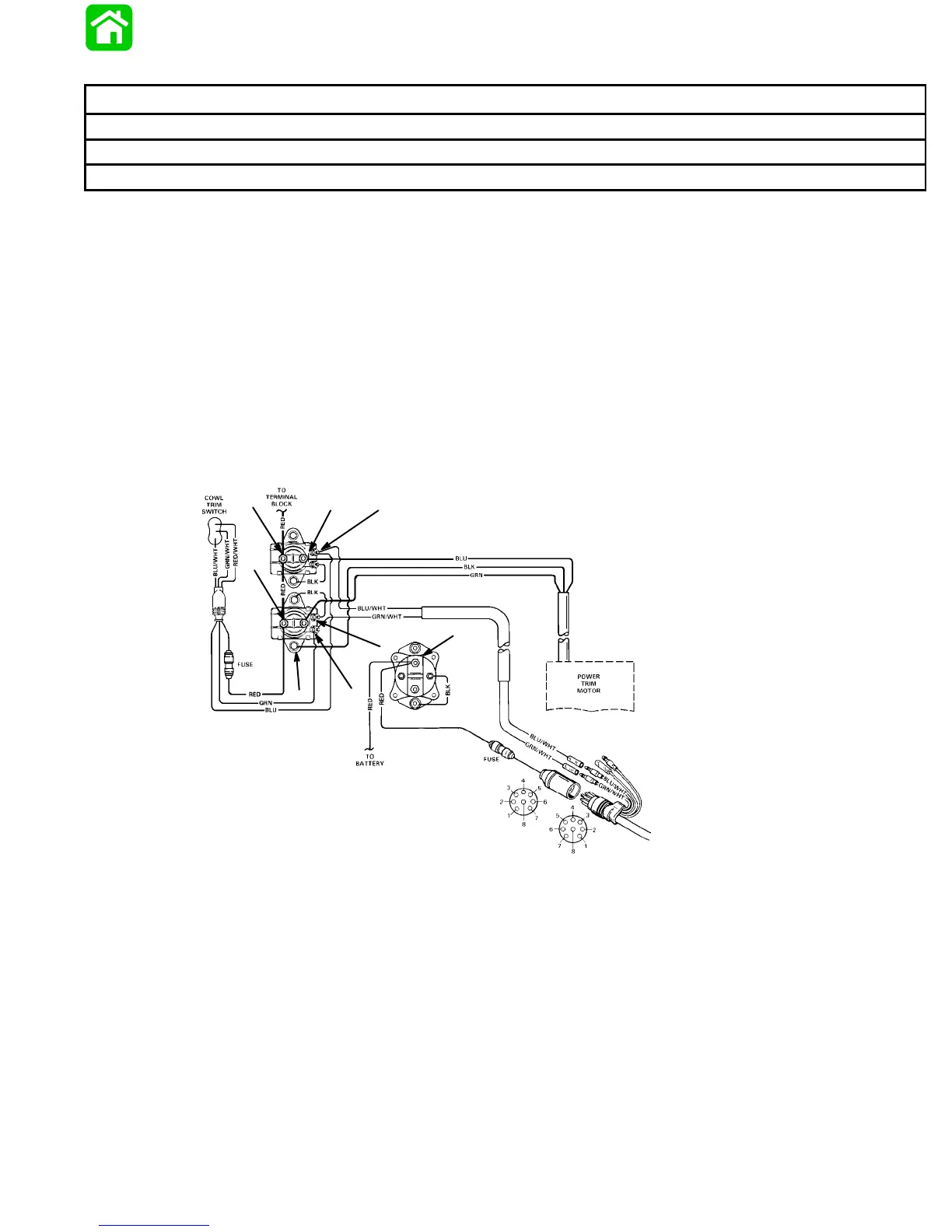

POWER TRIM SYSTEM WIRING DIAGRAM
51306
BLK = Black
BLU = Blue
GRN = Green
RED = Red
WHT = White
