Mariner 80 - Tachometer (with Adjustable Dial) and Trim Indicator Gauge Wiring Diagram

2D-990-13645--2 495 ELECTRICAL AND IGNITION

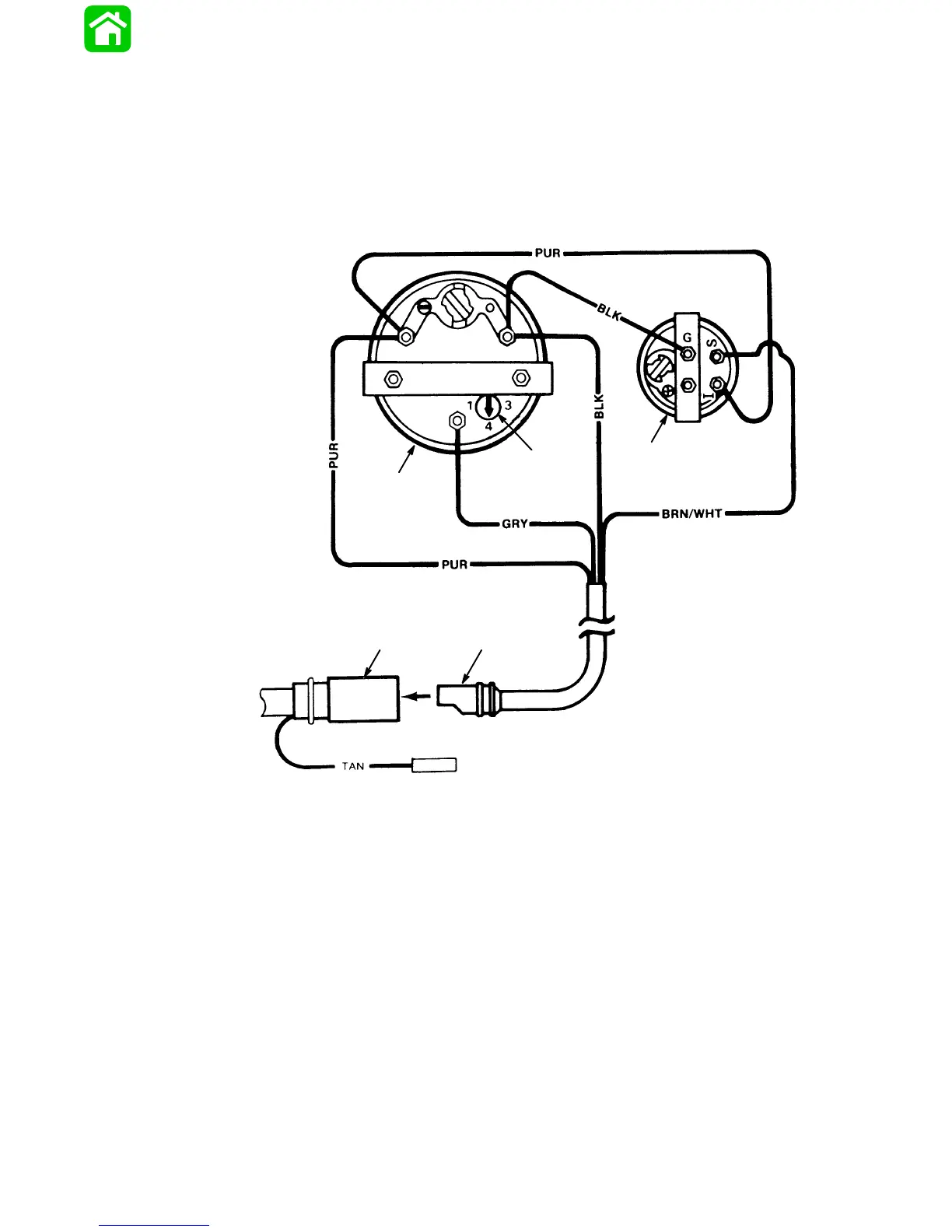

Tachometer (With Adjustable Dial) and
Trim Indicator Gauge Wiring Diagram
BLK  BLACK
BRN  BROWN
GRY  GRAY
PUR  PURPLE
TAN  TAN
WHT  WHITE
a
b
c
d
e
BATT GND
SENDER
a - Tachometer
b - Position Dial to Point Toward “4”
c - Trim Indicator Gauge (Optional)
d - Tachometer/Accessories Harness Plug from Remote Control
e - Tachometer/Accessories Harness
