Mariner 80 - Design 1 - Bottom Guided; Design 2 - Top Guided

4A-26 90-13645--2 495POWERHEAD

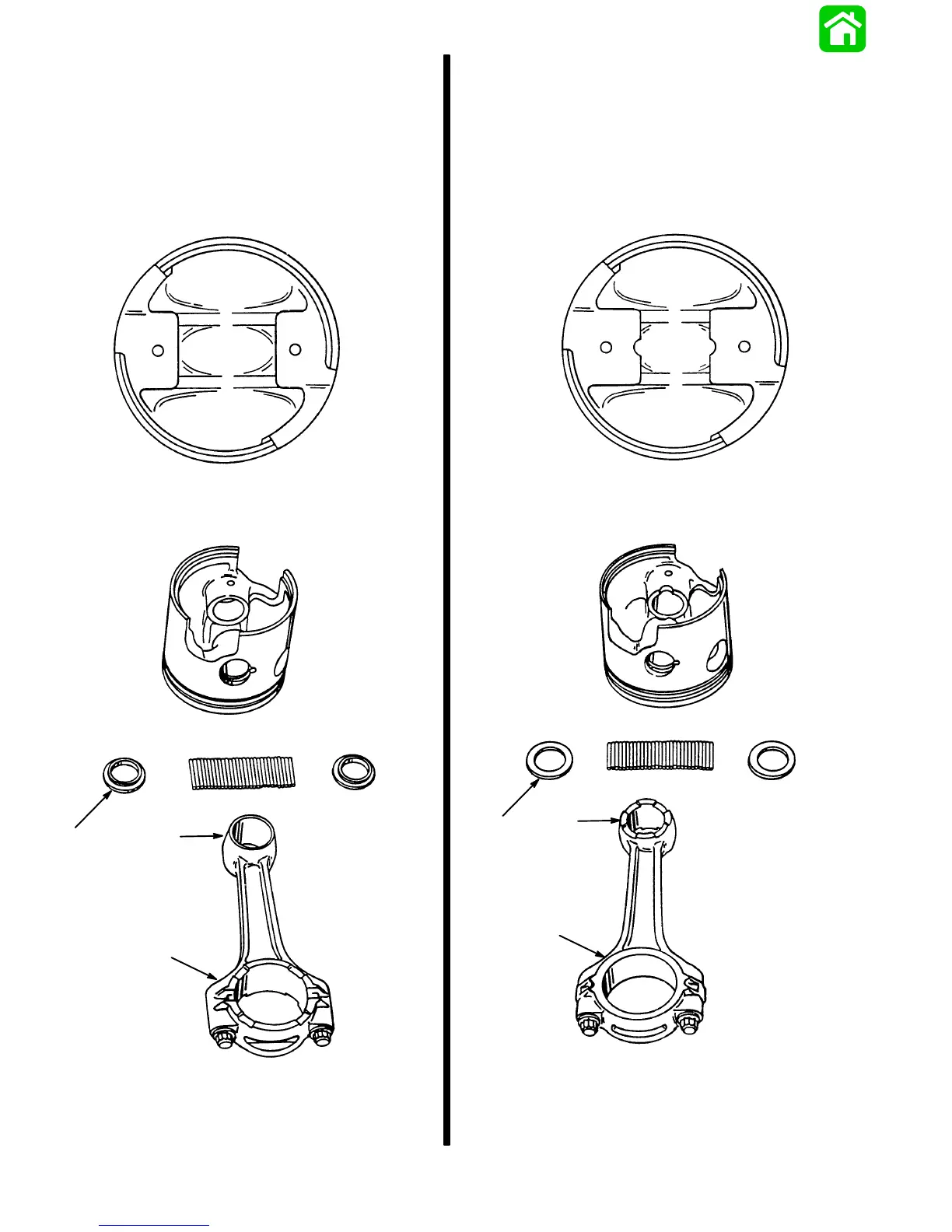

IMPORTANT: There are two types of piston/rod as-
semblies available for the 3 cylinder powerheads:
Design 1 – Bottom guided (centered in bore
by crankshaft)
Design 2 – Top guided (centered in bore by
piston)
DESIGN 1 - BOTTOM GUIDED
Bottom View of Piston
51536
a
b
c
a - Ridged Washer
b - Smooth
c - Scalloped
Top guided piston and rod assembly can be installed
in a powerhead with bottom guided piston and rod
assemblies.
However, individual components cannot be inter-
mixed – I.E. – Top guided piston cannot be used with
a bottom guided rod.
DESIGN 2 - TOP GUIDED
Bottom View of Piston
51536
a
b
c
a - Flat Washer
b - Scalloped
c - Smooth
