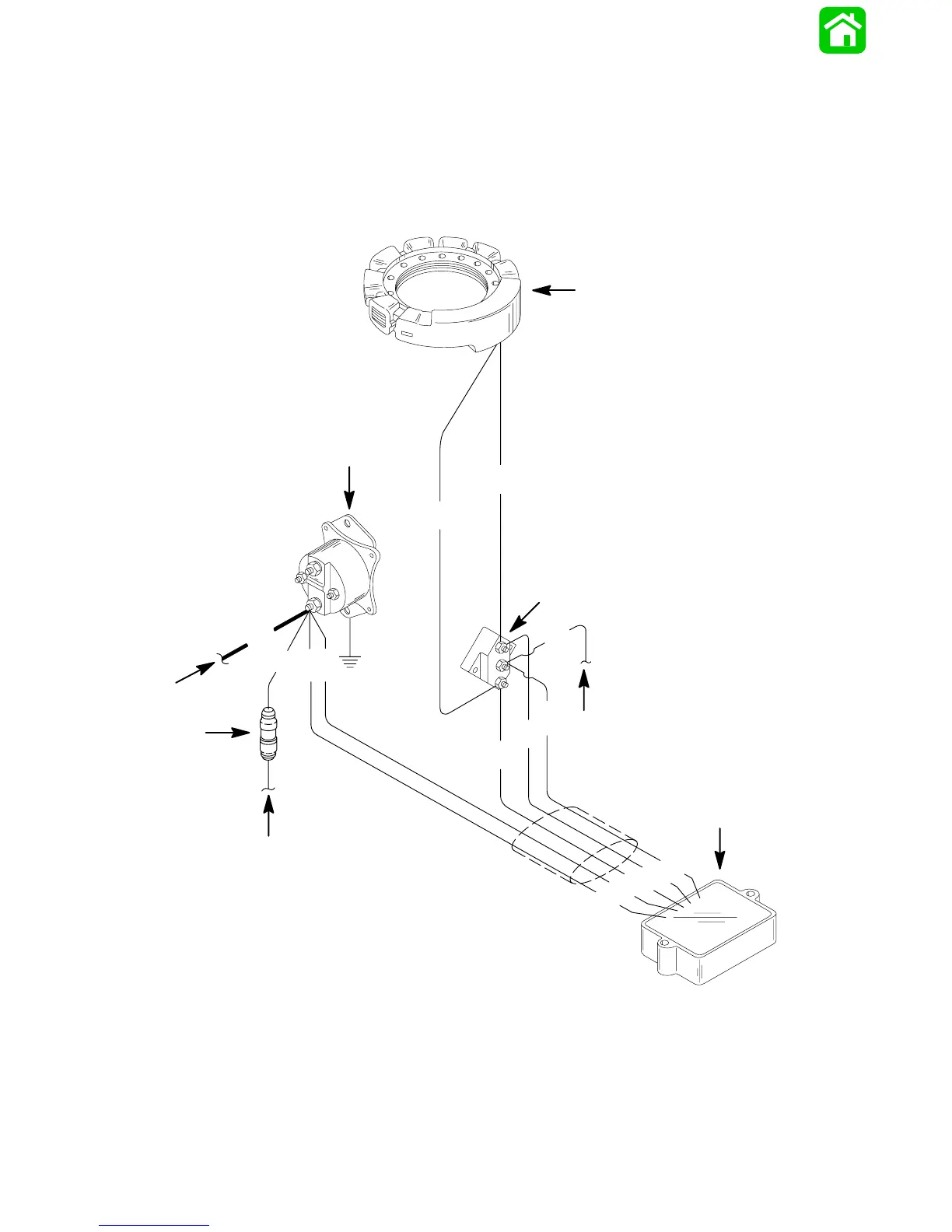

90-13645--2 4952B-12 ELECTRICAL AND IGNITION
4 Cylinder 16 Ampere Battery
Charging Wiring Diagram (with Small
Voltage Regulator/Rectifier)
IMPORTANT: After electrical connections are
made, coat all terminal connections using Quick-
silver Liquid Neoprene (92-25711), to avoid corro-
sion.
51001
BLK BLACK
BLU BLUE
GRY GRAY
RED RED
YEL YELLOW
YEL
YEL
RED
RED
YEL
YEL
GRY
GRY
YEL
YEL
RED
RED
GRYRED
RED
a
b
c
d
e
f
g
h
a - Stator
b - Terminal Block
c - ToTachometer
d - Voltage Regulator/Rectifier
e - To Remote Control Harness
f - 20 Ampere Fuse
g - Battery (+) Positive Terminal
h - Starter Solenoid
To Next Page
