2D-10 90-13645--2 495ELECTRICAL AND IGNITION

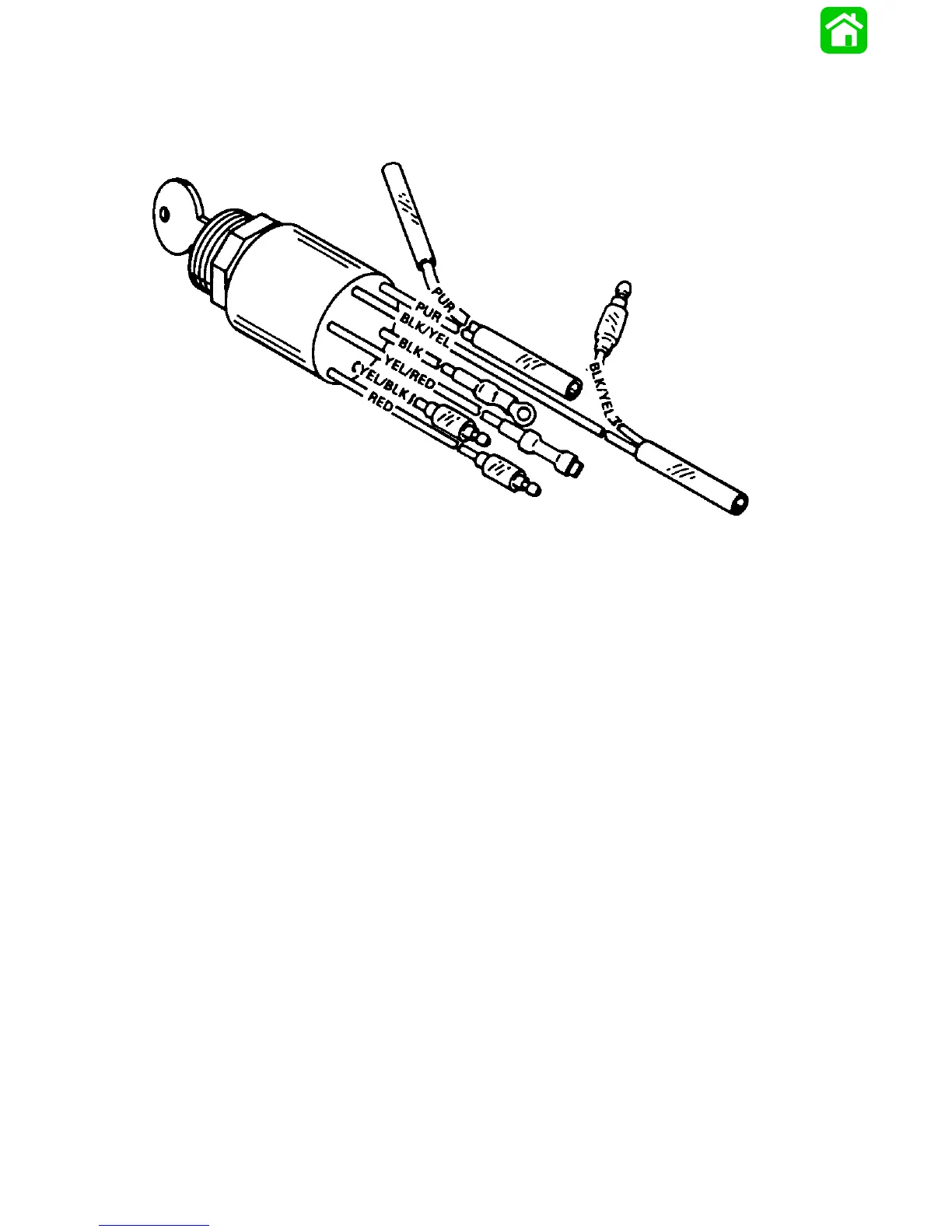

Key/Choke Switch Continuity Test
(COMMANDER 2000 Side Mount Remote Control)
23894
BLK BLACK
PUR PURPLE
RED RED
YEL YELLOW
“OFF” BLK/YEL – BLK
“RUN” RED – PUR
“START” RED – PUR – YEL/RED
PUSH (CHOKE)* RED – YEL/BLK
*Key switch must be positioned to “RUN”
or “START” and key pushed in to actuate
choke, for this continuity test.
