Mariner 80 - Electrical Components Installed; Reinstall Wiring Harness and Components as a Unit

4A-36 90-13645--2 395POWERHEAD
REINSTALL WIRING HARNESS AND
COMPONENTS, AS A UNIT
S Reinstall Trigger Assembly and Stator Assembly.
(Refer to Section 2 - this manual.) Apply Loctite
271 to stator screws and torque to
60 lb. in. (6.8 Nm).
S Attach Electrical Component Mounting Plate.
Apply Loctite 271 to bolts and torque to
13.5 lb. ft. (18.3 Nm).
S Install Starter Motor as outlined in Section 2.
Torque to 14.5 lb. ft. (19.7 Nm).
S Attach Enrichener Valve and connect hose. See
Section 3B.
NOTE: See Section 2-D “Wiring Diagrams.”
S Attach Temperature Sensor (g), with 2 screws.
NOTE: Temperature sensor opens at 170_F  8_
(77_C  8_); closes at 190_F  8_ (88_C  8_)
g
20368
S Attach Test Button, if so equipped.
ELECTRICAL COMPONENTS INSTALLED
20412
20368
a
20414
b
c
d
25955

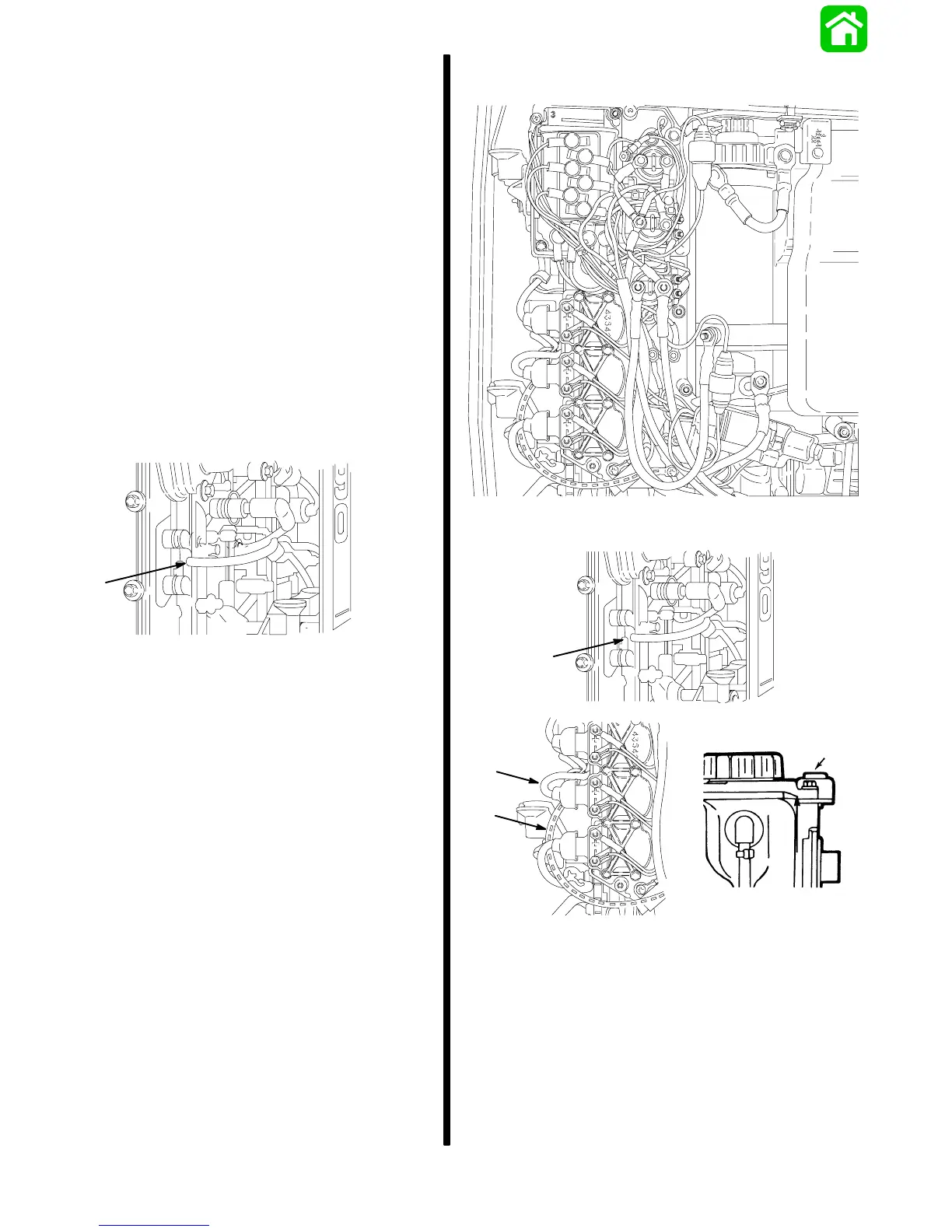

a - Temperature Sensor
b - Temperature Sensor Wire
c - Spark Plug Wires
d - Horn Test Button
