Mariner 80 - Cleaning and Inspection; Scraper Seal Replacement

90-13645--2 495 6B-25POWER TRIM

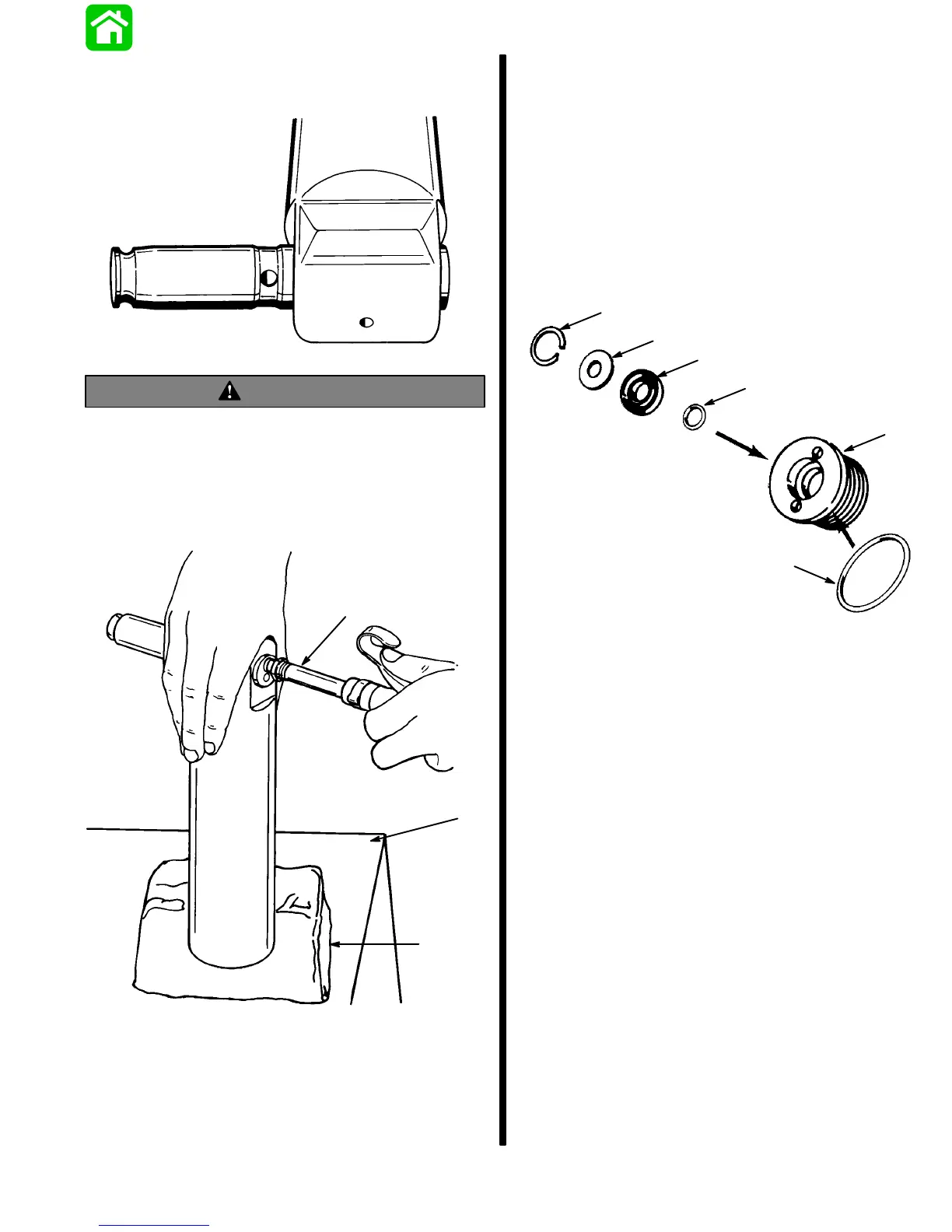

7. Tap shaft into cylinder until shaft is positioned as
shown.
51365
WARNING
Memory Piston Cup may be expelled at a high
velocity when air pressure is applied. Failure to
place cylinder as shown below could result in
personal injury.
8. Place cylinder as shown. Hold down on cylinder
and inject air into shaft opening.
51353
a
b
c
a - Shop Cloth
b - Solid Surface
c - Air Nozzle
9. Remove shaft after Memory Piston Cup has been
expelled. Replace allen plug removed in Step 5
and tighten securely.
CLEANING AND INSPECTION
1. Inspect all internal parts for damage or wear.
Clean and replace parts as necessary.
2. Inspect tilt rod for scratches. Replace scraper seal
in rod end cap if tilt rod is scratched or worn.
3. Slight scratches or tool marks less than 0.005 in.
(0.1 mm) deep in cylinder are acceptable.
Scraper Seal Replacement
1. Remove components from end cap.
a
b
c
d
e
b
a - Cap
b - O-ring (2)
c - Scraper Seal
d - Washer
e - Retaining Ring
