Mariner 80 - Trim Rod End Cap Seal; Trim Rod Installation

90-13645--2 495 6B-21POWER TRIM

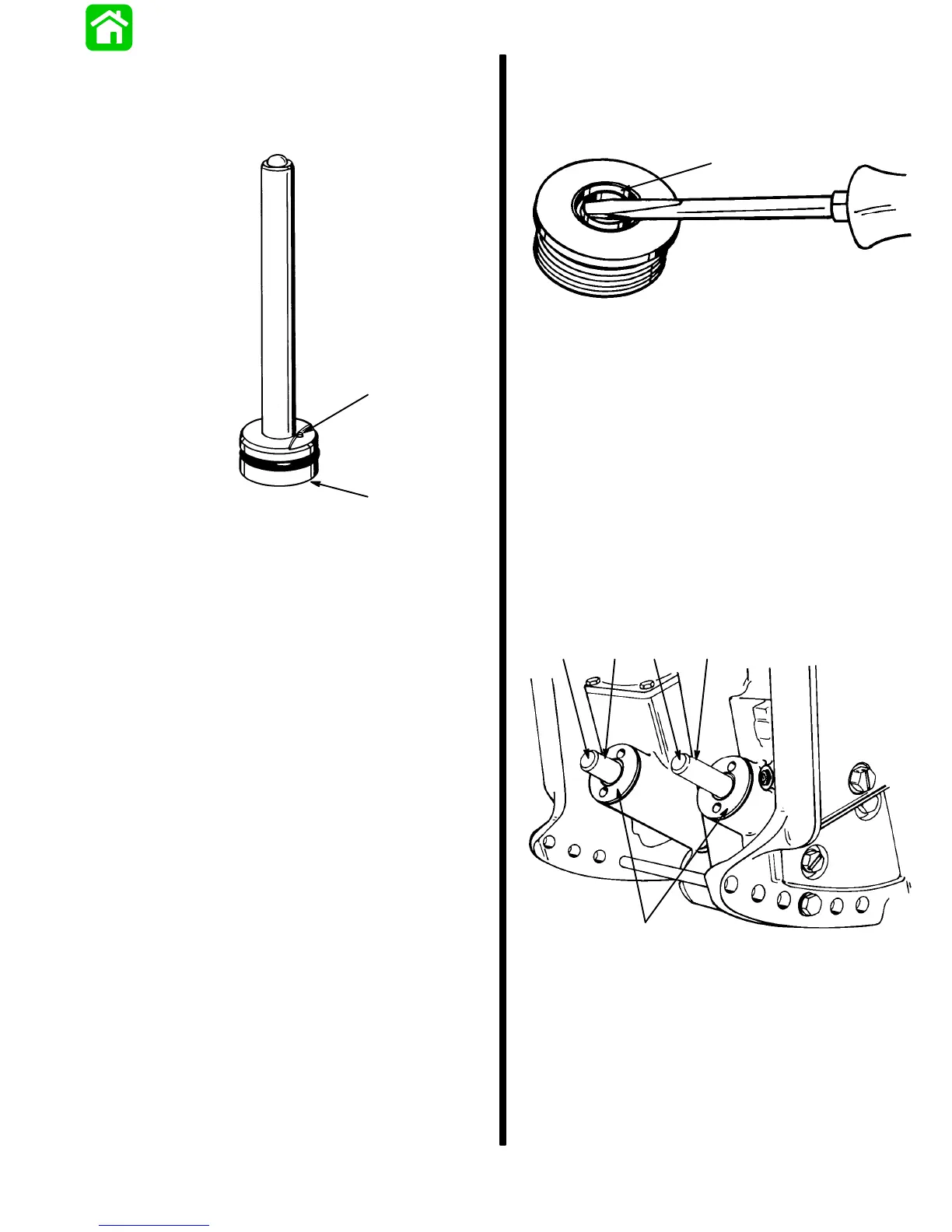

1. Inspect check valve and check valve screen for
debris; if debris cannot be removed, replace trim
rod assembly. Clean trim rod with parts cleaner
and dry with compressed air.
51352
a
b
a - Check Valve
b - Check Valve Screen
Trim Rod End Cap Seal
1. Inspect trim cap end seal and replace if damaged
or if seal does not keep trim rod clean.
51343
a
a - Seal (Remove as shown)
2. Install new seal with seal lip up.
TRIM ROD INSTALLATION
IMPORTANT: Components must be free of dirt and
lint. Any debris in the system can cause system
to malfunction.
NOTE : Install trim rod with check valve in the port (left)
cylinder.
1. Apply Quicksilver Power Trim and Steering Fluid
on all O-rings and seals before installation.
2. Install trim rods and caps. Use installation tool
(91-44487A1) or spanner wrench (91-74951) to
tighten caps securely.
51353
ac
b
ac
a - Trim Rods
b - Cylinder End Caps
c - Rod End Rollers (Lubricate with Quicksilver Anti-Corrosion
Grease or 2-4-C w/Teflon)
