Mariner 80 - Shift Shaft

5A-18 LOWER UNIT 90-13645--2 1095
Shift Shaft

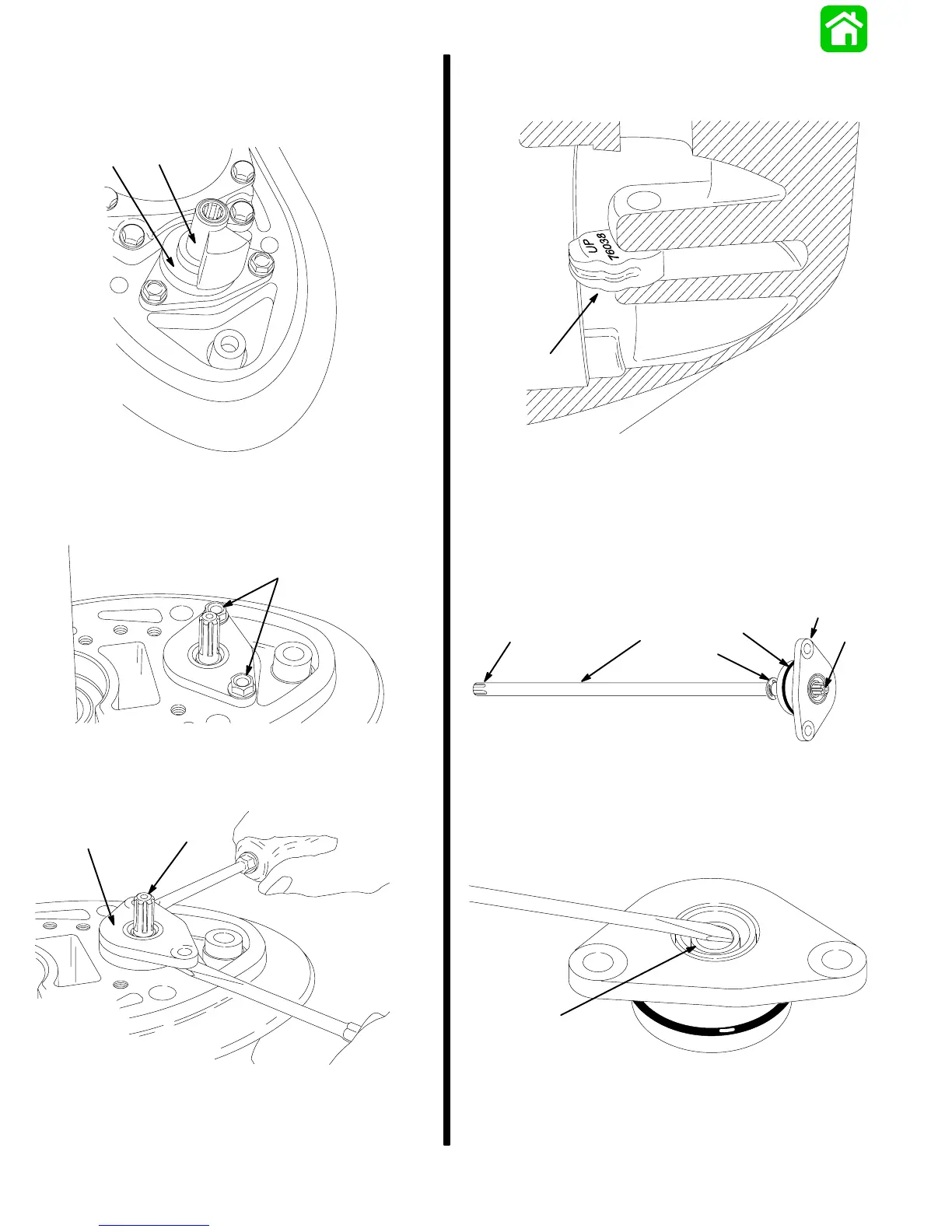

1. Remove shift shaft coupler and nylon
spacer.
19221
a
b
a - Shift Shaft Coupler
b - Spacer
2. Remove bolts.
19216
a
a - Bolts
3. Remove shift shaft bushing and shift shaft.
19225
a
b
a - Bushing
b - Shift Shaft
4. Remove shift cam from housing.
5. Replace shift cam if worn.
51117
a
a - Shift Cam
6. Remove shift shaft bushing and clip from shift
shaft.
7. Replace shift shaft if splines are worn or shaft is
twisted.
8. Remove (and discard) O-ring.
19200
a
b
c
d
d
e
a - Bushing
b - Clip
c - Shift Shaft
d - Splines
e - O-ring
9. Remove (and discard) seal.
19199
a
a - Seal
