6A-32 POWER TRIM 90-13645--2 495

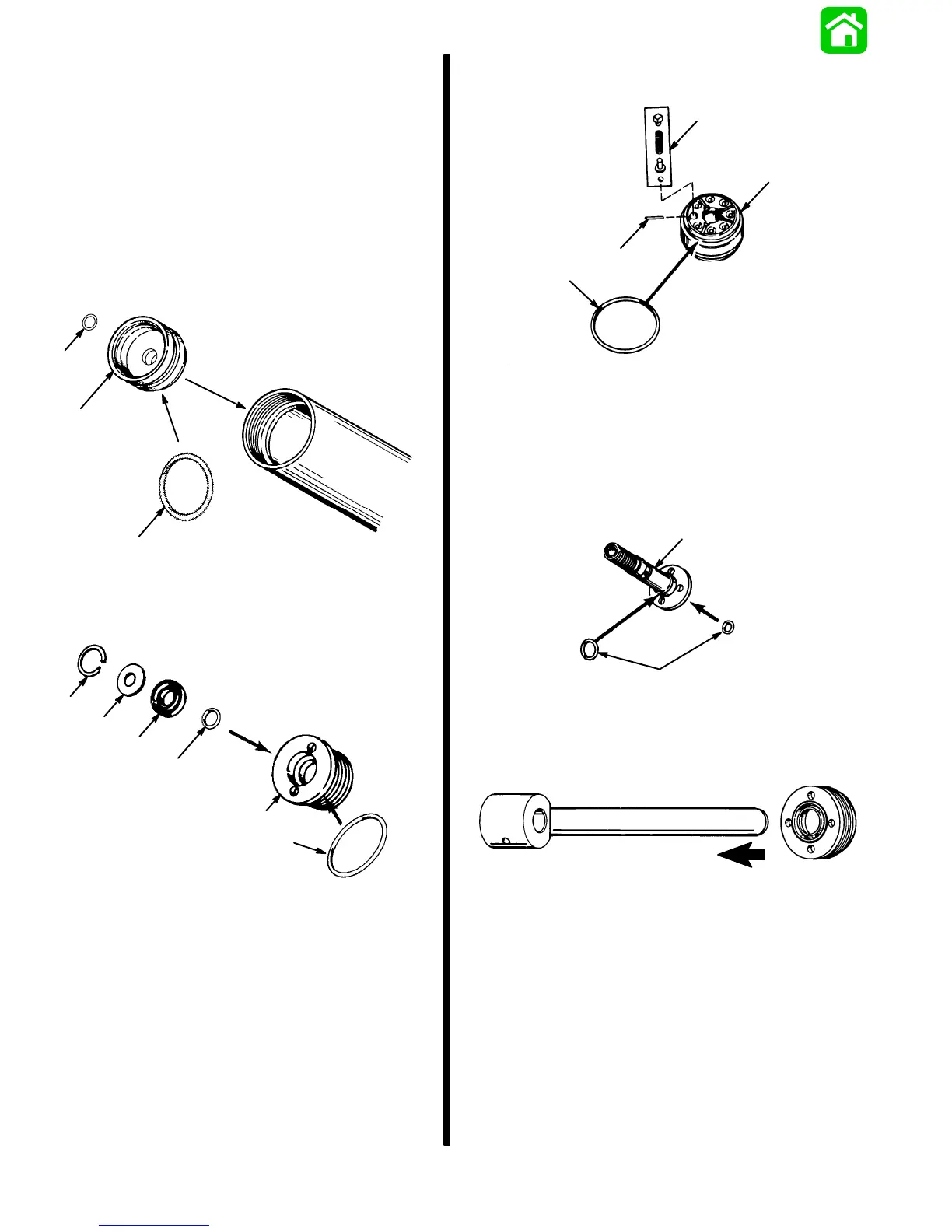

REASSEMBLY
IMPORTANT: Components must be dirt and lint
free. Slightest amount of debris in Power Trim
system could cause system to malfunction.
1. Apply Automatic Transmission Fluid (ATF) Type A
(Dexron II) on O-rings during reassembly.
NOTE:
Refer to “Tilt Ram Components” for proper
O-ring sizes.
Install O-rings.
2. Insert cup into housing.
a
b
51372
a
a - O-ring
b - Memory Piston Cup (Design 1 shown)
3. Assemble cap, as shown.
c
a
b
d
e
b
a - End Cap
b - O-ring (2)
c - Scraper Seal
d - Washer
e - Retaining Ring
4. Install components, as shown.
a
b
c
d
a - Piston
b - Roll Pin
c - Check Valve Assembly
d - O-ring
5. Install O-rings in locations shown.
a
b
a - Rod End
b - O-rings
6. Install end cap.
51376
NOTE:
Some tilt rams have one check valve spring
that is a lighter duty than the other six springs.
7. Install components onto rod, as shown.
