6A-17POWER TRIM90-13645--2 495

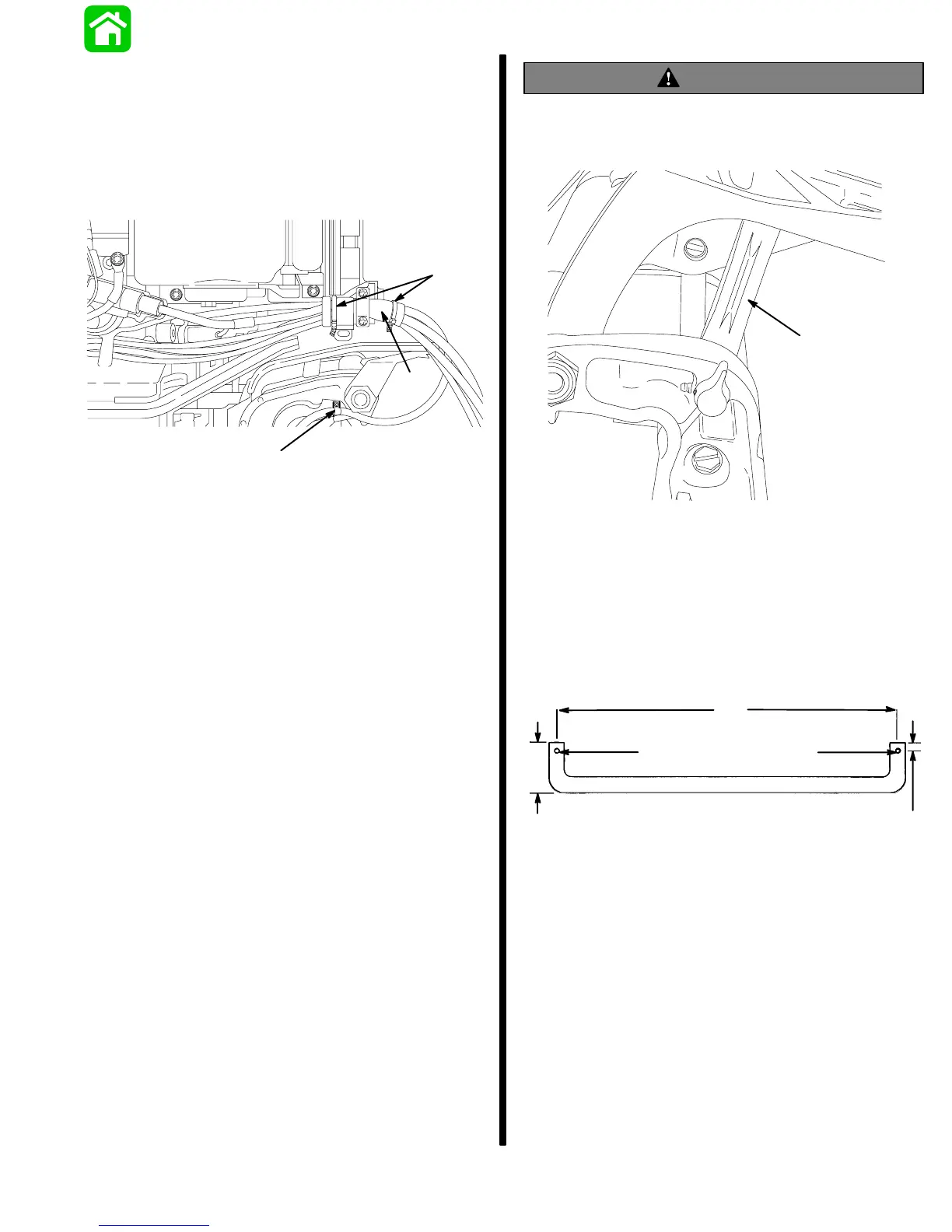

Power Trim Assembly
Removal and Installation
Removal
1. Remove clamps on transom bracket to free power
trim wiring.
20290
a
b
c
a - Harness Retainer
b - Clamp
c - Sta-Strap(s)
2. Raise outboard to full “Up” position and engage tilt
lock lever.
WARNING
Failure to support outboard as shown could result
in personal injury and/or damage to outboard or
boat.
20319
a
a - Tilt Lock Lever
IMPORTANT: Support outboard as shown above
to prevent engine from tipping when power trim
retaining pin is removed.
SUPPORT TOOL
3/8 in. diameter metal rod (a used shift shaft works
well).
a
14
2
1/4
a
a - Drill Holes for Retaining Clips
METRIC CONVERSION
14 = 35.56cm
2 = 50.8mm
3/8= 9.5mm
1/4= 6.35mm
