Mariner 80 - Reservoir Installation

6C-28 90-13645--2 495POWER-TRIM
Reservoir Installation

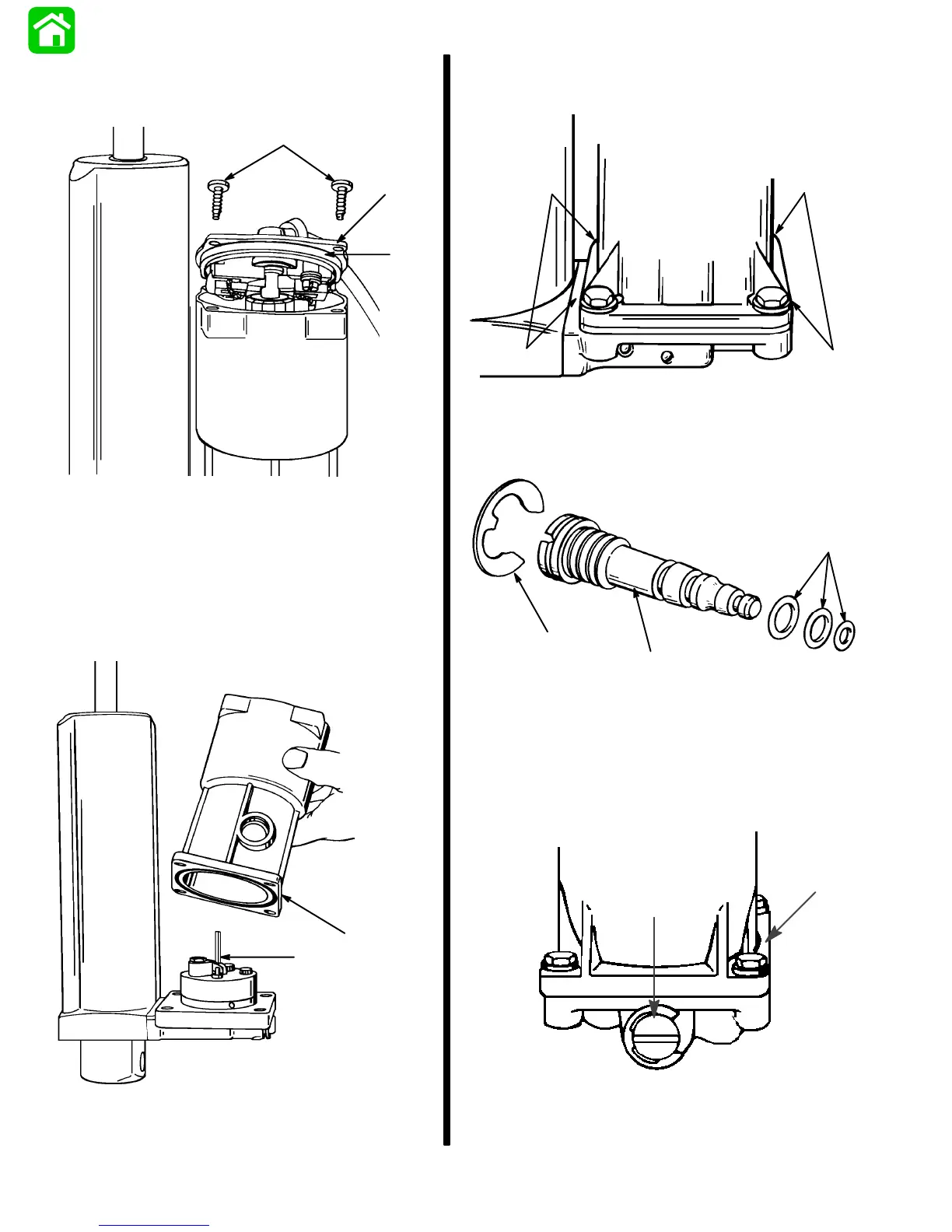

1. Torque end cap screws to 13 lb in. (1.5 N·m).
51486
b
a
c
a - End Cap
b - O-ring
c - Screws (4)
2. Place drive shaft into oil pump.
3. Install lubricated O-ring to base of reservoir.
4. Carefully guide (with motor) down onto drive
shaft.
51486
b
a
a - Drive Shaft
b - O-ring
5. Secure reservoir to manifold using four screws.
Torque screws to 70 lb. in. (7.9 N·m).
51193
aa
a - Screw
6. Install lubricated O-rings and “E” clip to manual re-
lease valve.
51196
a
b
c
a - “E” Clip
b - O-ring
c - Manual Release Valve
7. Insert manual release valve into manifold and
tighten snuggly. Back release valve out 3 turns
maximum allowing trim rod installation.
51194
b
a
a - Manual Release Valve
b - Manifold
