Mariner 80 - Removal - Tilt Rod Assembly Only; Tilt Ram; Tilt Ram Components

6B-22 90-13645--2 495POWER TRIM
Tilt Ram

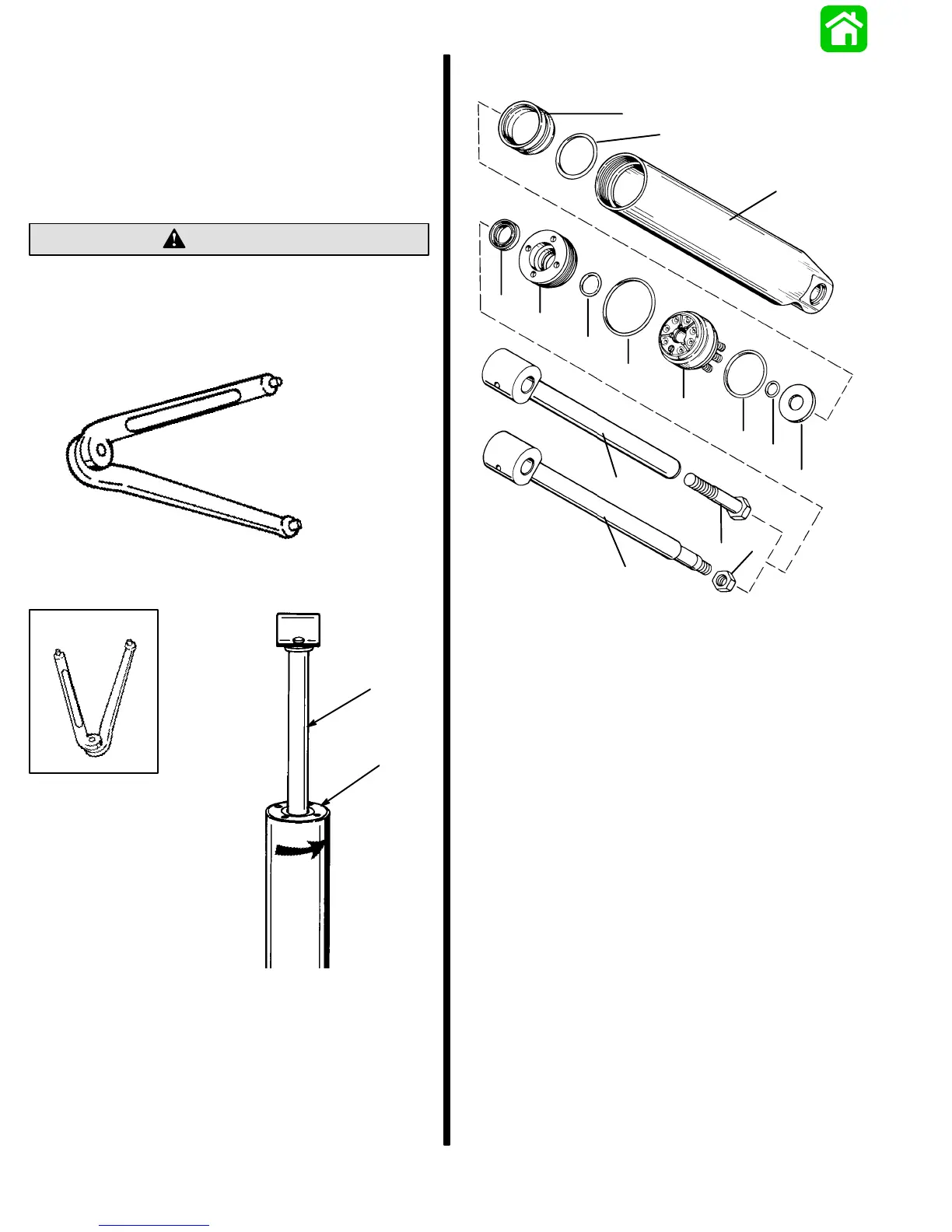

REMOVAL - TILT ROD ASSEMBLY ONLY
NOTE : Tilt Rod Assembly can be removed from
cylinder without removing entire power trim system
from outboard. Refer to page 6A-13 to remove upper
swivel pin.
Insure Power Trim System Is Depressurized Prior
To Tilt Rod Removal.
CAUTION
1. Use spanner wrench (91-74951) to loosen tilt ram
end cap.
51337
51364
51337
91-74951
a
b
c
a - End Cap
b - Spanner Wrench (91-74951) (Turn counterclockwise)
c - Tilt Rod - Pull to remove.
NOTE : Place a clean pan under tilt ram to catch fluid.
TILT RAM COMPONENTS
51372
a
b
c
d
e
f
g
h
i
j
k
b
b
b
b
a - Housing - Tilt Ram
b - O-ring* (5)
c - Memory Piston**
d - Washer
e - Piston Assembly
f - End Cap
g - Oil Seal
h - Bolt (Design 1)
i - Nut (Design 2)
j - Tilt Rod (Design 1)
k - Tilt Rod (Design 2)
* O-ring Repair Kit Available, P/N 811607A1 (Includes item g, Oil
Seal)
** Memory piston (c) for tilt rods (j and k) are different and must be
used with correct tilt rod/cylinder assembly. Memory piston for
Design 1 tilt rod is flat, Design 2 is dished to clear nut and
thread.
