Mariner 80 - Throttle Lever and Linkage Wave Washer

4A-190-13645--2 495 POWERHEAD
a
b
c
d
e
e

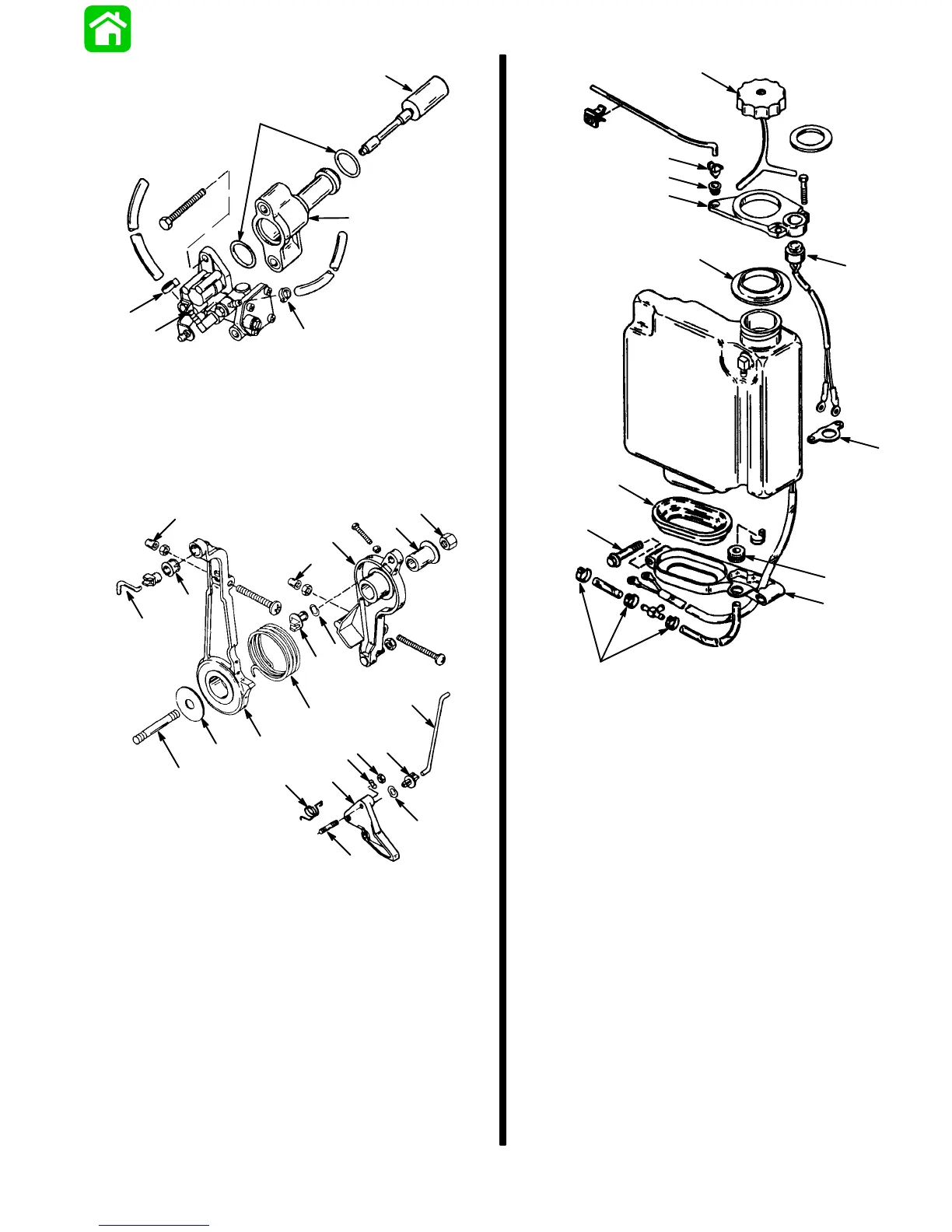

a - Drive Gear
b - Adapter Assembly
c - O-rings
d - Oil Pump Assembly
e - Sta-Straps
Oil Pump Assembly
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
i
Remove
Remove
a - Spark Advance Lever
b - Throttle Control Lever
c - Torsion Spring
d - Washer
e - Flanged Bushing
f - Nut
g - Wave Washer (Remove)
h - Swivel Bushings (2)
i - Nylon Caps (2)
j - Swivel Base
k - Spark Advance Rod
l - Stud
m- Link Arm
n - Swivel Bushing
o - Locknut
p - Washer
q - Throttle Cam
r - Return Spring
s - Stud
t - Wave Washer (Remove)
Control Arm Lever Assembly
a
b
c
d
e
f
g
h
i
j
k
l
m
a - Oil Tank
b - Oil Cap Assembly
c - Oil Tank Neck Bracket
d - Swivel Base
e - Swivel Bushing
f - Oil Tank Neck Boot
g - Oil Tank Base Boot
h - Oil Tank Base
i - Grommet
j - Bolt --[Torque to 160 lb. in. (18.1 Nm)]
k - Sta-Straps
l - Switch Assembly (Without Warning Module)
m- Switch Cover
Oil Tank Assembly
THROTTLE LEVER AND LINKAGE WAVE
WASHER REMOVAL - MODELS 70-75-80-90-100
When servicing 3 cylinder model 70-75-80-90 and 4
cylinder 100/115 HP outboards for any reason, remove
the wave washers from the swivel bushings. Removal
of the wave washers will prevent the swivels from
breaking during removal/installation. Future production
outboards will have the wave washers removed.
