Trigger
REMOVAL
1. Remove flywheel and stator; refer to “Flywheel”
and “Stator” removal, preceding.
2. Disconnect link arm and remove trigger.

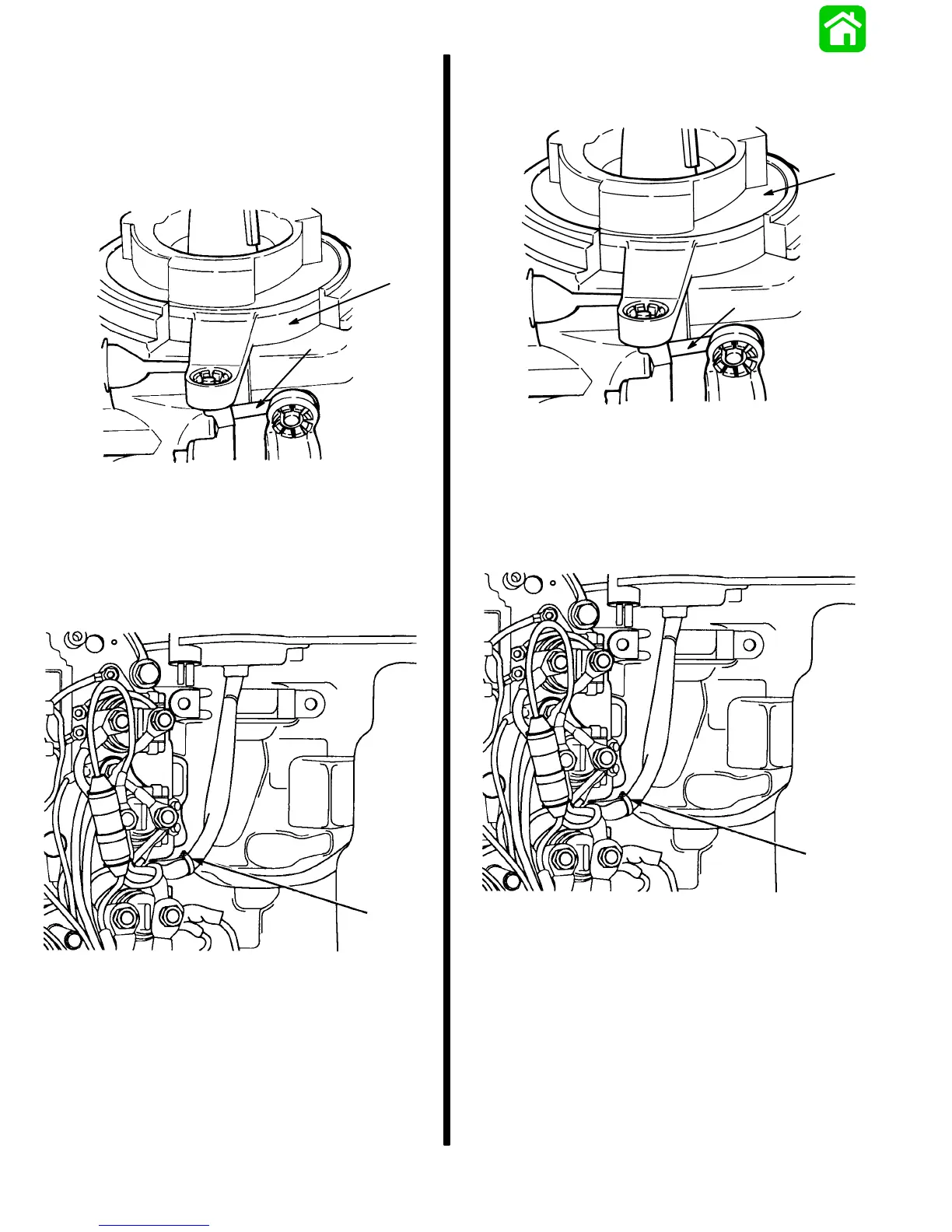

19459
a
b
a - Link Arm
b - Trigger
3. Remove starter motor; refer to Section 2B.
4. Remove sta-strap.
5. Disconnect trigger leads from switch box and re-
move trigger.
a
19453
a - Sta-strap
INSTALLATION
1. Install trigger and connect link arm.
19459
a
b
a - Trigger
b - Link Arm
2. Connect trigger leads to switch box; refer to wiring
diagrams in Section 2D.
3. Install sta-strap.
4. Install starter motor; refer to Section 2B.
a
19453
a - Sta-strap
5. Install stator; refer to “Stator Installation,”
preceding.
6. Install flywheel; refer to “Flywheel Installation,”
preceding.
