Mariner 80 - Power Trim System Wiring Diagram

6C-16 90-13645--2 495POWER-TRIM

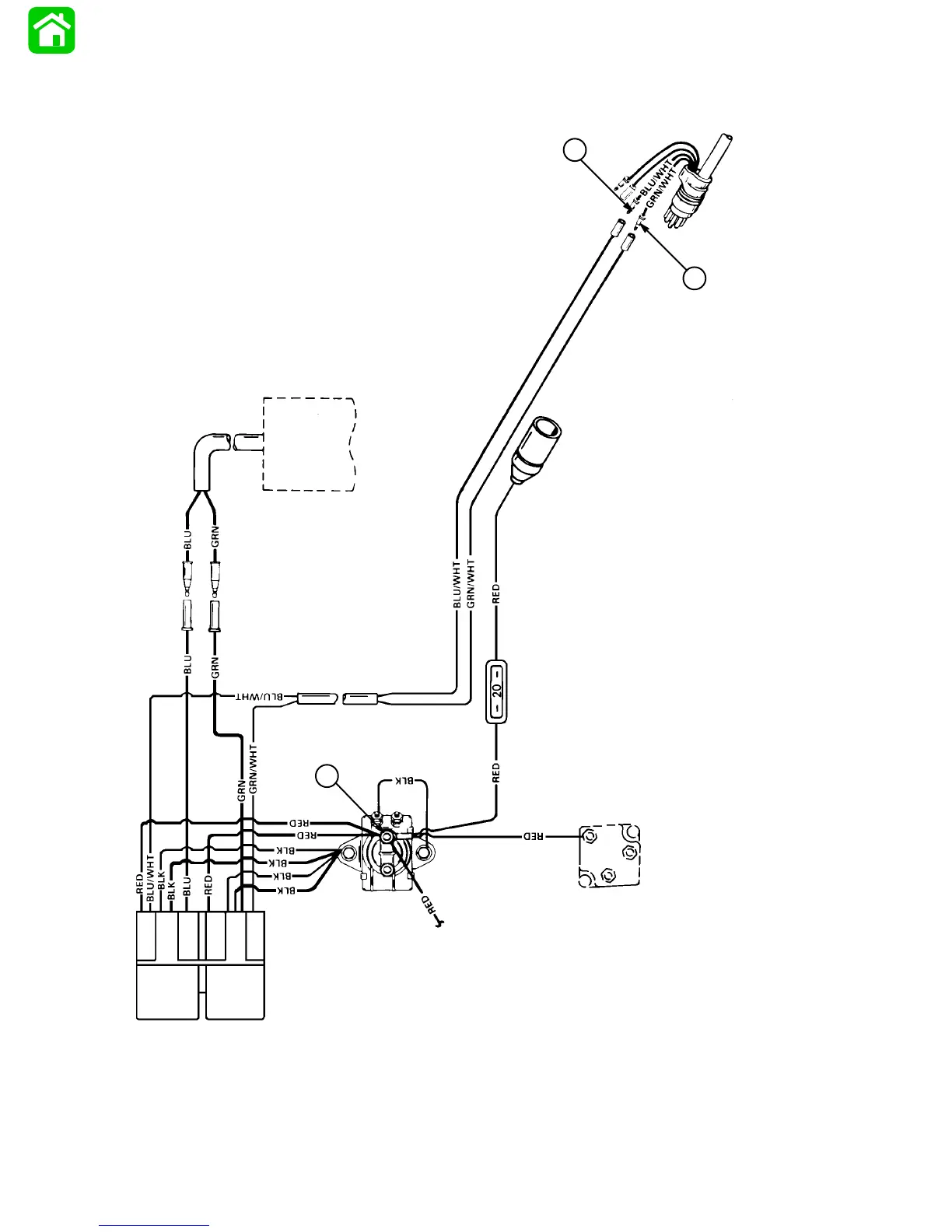

Power Trim System Wiring Diagram
Engine Harness
Fuse
Rectifier
Trim Relays
UP
DOWN
Power
Trim
Motor
Wiring From
Side Mount
Remote Control
Harness
51507
1
8
3
Start Solenoid
To Battery
BLK  BLACK Negative (–)
BLU  BLUE Trim Motor (UP)
GRN  GREEN Trim Motor (DOWN)
RED  RED Positive (+)
BLU/WHT  BLUE/WHITE Trim Switch to UP Relay
GRN/WHT  GREEN/WHITE Trim Switch to DOWN Relay
