Mariner 80 - Connecting Rod Cap Alignment; Crankcase Cover to Block

4A-32 90-13645--2 395POWERHEAD
IMPORTANT: On some engines, BOTH the piston
rod and rod cap bolt holes are threaded. The rod
cap and rod must be aligned and held tight
together when threading in bolt. Check that
mating surfaces are tight together after bolt
enters the threads in the piston rod.
20033

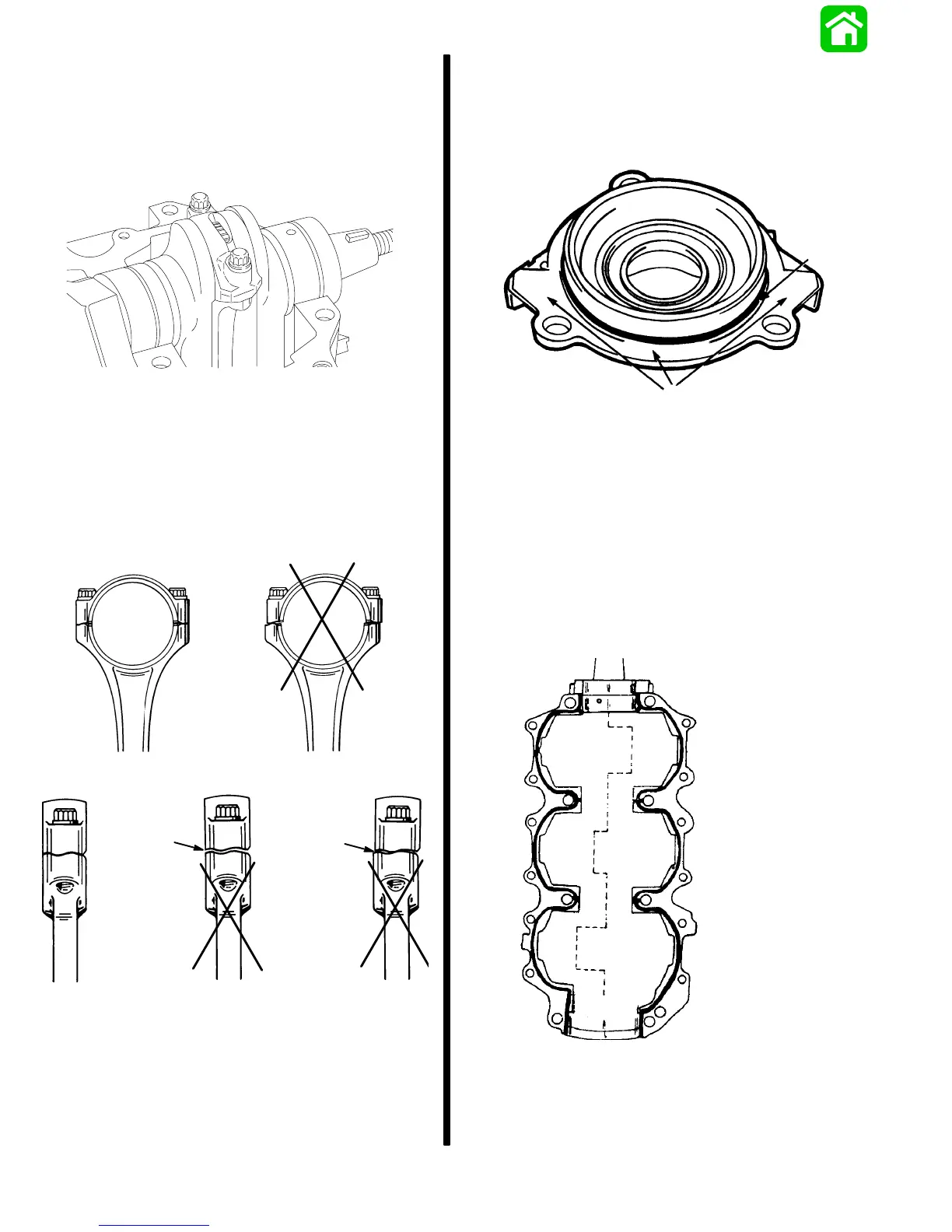

Connecting Rod Cap Alignment
1. Check each connecting rod for correct alignment
by carefully running fingernails up and down edge
of rod cap. If not aligned, a ridge can be seen or
felt at the separating line. Correct any misalign-
ment.
Front View
Correct
Front View
Incorrect
Side View
Correct
Side View
Incorrect
Side View
Incorrect
Space Ridge
5122
4
2. When connecting rods are attached, and bolts
drawn down finger tight, torque rod-cap bolts to
15 lb. in. (1.7 Nm). Recheck alignment. Retorque
1/4 in. bolts to 15 lb. ft. (20.3 Nm) or 5/16 in.
bolts to 30 lb. ft. (40.7 Nm). Recheck alignment.
Turn each rod-cap bolt 90_ further after 30 lb. ft.
reading is acquired.
S Replace lower crankshaft End Cap.
1. Coat mating surface with Perfect Seal. DO NOT
coat O-ring seal.
2. Bolt to block (2 bolts) - finger tighten - lightly.
19336
a
b
a - Mating Surface
b - O-ring Seal
Crankcase Cover to Block
LOCTITE MASTER GASKET SEALANT,.
92-12564-1 is used; it comes as a kit, which includes
Primer and Sealant. Instructions contained in the kit
MUST BE FOLLOWED EXACTLY. (Clean both sur-
faces).
IMPORTANT: Extend sealer to edge on each center
main journal to prevent blow-by between cylinders.
Sealant “Bead Pattern”
indicated by bold line.
